How to Use a Car Audio Amplifier Gain Calculator

Let me cut to the chase: if you've ever cranked subwoofer and the bass sounds like it's on a floor, missing a key piece of the puzzle—gain.

Gain is the invisible hand that decides how loud each speaker will shout. Think of it like turning the volume knob on a phone—except if you crank it too high, the audio tears apart; too low, and the car turns into a quiet, lifeless hallway.

At Audio Intensity, we’ve seen the difference a calibrated gain makes. One client, a gear‑head who loves his ’03 Mustang, was shouting at 10 W and still feeling flat. After a quick gain check, the bass exploded into the cabin without distortion.

So, what’s the math behind a car audio amplifier gain calculator? In essence, it takes two numbers—your speaker’s power rating and the amplifier’s output—and tells you the optimal voltage you should feed the amp to hit that sweet spot. Use it to fine‑tune.

The formula is simple: Gain(dB) = 20 × log10(Vout/Vin). Plug in a 4‑volt amp and a 2‑volt speaker, and you get roughly 12 dB. That number helps when wiring a new subwoofer.

Now, don’t get hung up on the math; the real trick is to keep the amplifier’s output voltage below its maximum rating. Over‑driving it is like trying to squeeze a balloon—pressure builds, and it pops.

Here’s a quick sanity check: If your amp can handle 50 W RMS into 4 Ω, and you feed it 5 V, you’re safely inside the spec. Push it to 7 V and you start bleeding power and distortion.

Remember, each car and each set of speakers behaves differently. The best way to nail your gain is to start low, listen, then adjust until the bass feels present but not overwhelming.

So, are you ready to turn that raw power into punchy, precise sound? Stick around—we’ll show you how to pull the numbers, set the right gain, and enjoy clean bass without fuzz.

TL;DR

A car audio amplifier gain calculator turns raw voltage numbers into clear, distortion‑free bass, letting you fine‑tune every speaker for your car’s acoustics.

By plugging your amp’s output and the speaker’s rating, you see the sweet spot, keep the amp safe, and achieve sound—no guesswork or distortion to ruin audio.

Step 1: Identify Your Speaker Specifications

Before we start crunching numbers, we’ve got to know what we’re working with. Think of your speaker like a person: you need to know their height, weight, and what kind of workout they can handle.

Grab the spec sheet that came with your sub or speaker. If you don’t have one, a quick Google search for the part number usually lands you on the manufacturer's page.

Key specs every amp‑gain calculation needs

Nominal impedance (usually 4 Ω, 2 Ω, or 6 Ω). This tells the amp how hard it has to work.

Sensitivity in dB. The higher the number, the less power you need to hear a full‑blast.

RMS power rating (watts). This is the amount of power the speaker can handle continuously without burning out.

Max voltage (Vmax). Some speakers are picky about how much voltage they can take.

Enclosure type (sealed, ported, band‑pass). It changes how the speaker behaves with power.

Write all of that down. If you’re reading this while scrolling through the shop, you can just jot it on a sticky note.

Why this matters

Your amplifier will only do what the speaker can handle. A 10 W amp cranked at 20 V into a speaker that only likes 5 V is going to scream and distort. That’s why we’re here to get the numbers right.

So, what’s the first step? Look at the RMS rating. That’s your safety net. Then cross‑check the Vmax with the amp’s maximum output voltage. If they match, you’re on safe ground.

Let me share a quick scenario. I once helped a hobbyist upgrade a 2006 Corolla’s 12‑V sub. The speaker’s spec sheet said 4 Ω, 2 V sensitivity, and 50 W RMS. The amp was a 12 V, 4 Ω, 100 W model. Using a simple calculator, we found that feeding the amp with 3 V would hit the sweet spot—enough power, no distortion, and a room‑sounding bass.

That’s the power of the car audio amplifier gain calculator: it turns raw voltage into the right amount of punch.

Ready to dive in? Let’s hit the numbers.

Step 1: Pick the amplifier’s max output voltage. Step 2: Divide that by the speaker’s Vmax. Step 3: The result is the recommended input voltage range. Keep the input voltage below that limit and your amp will stay happy.

And remember—if you’re unsure about any spec, a quick call to the manufacturer or a visit to the community forums can clear things up.

One more quick tip: keep a small notebook or digital note handy for each car you work on. The specs vary widely between models, and having a log saves you from guessing later.

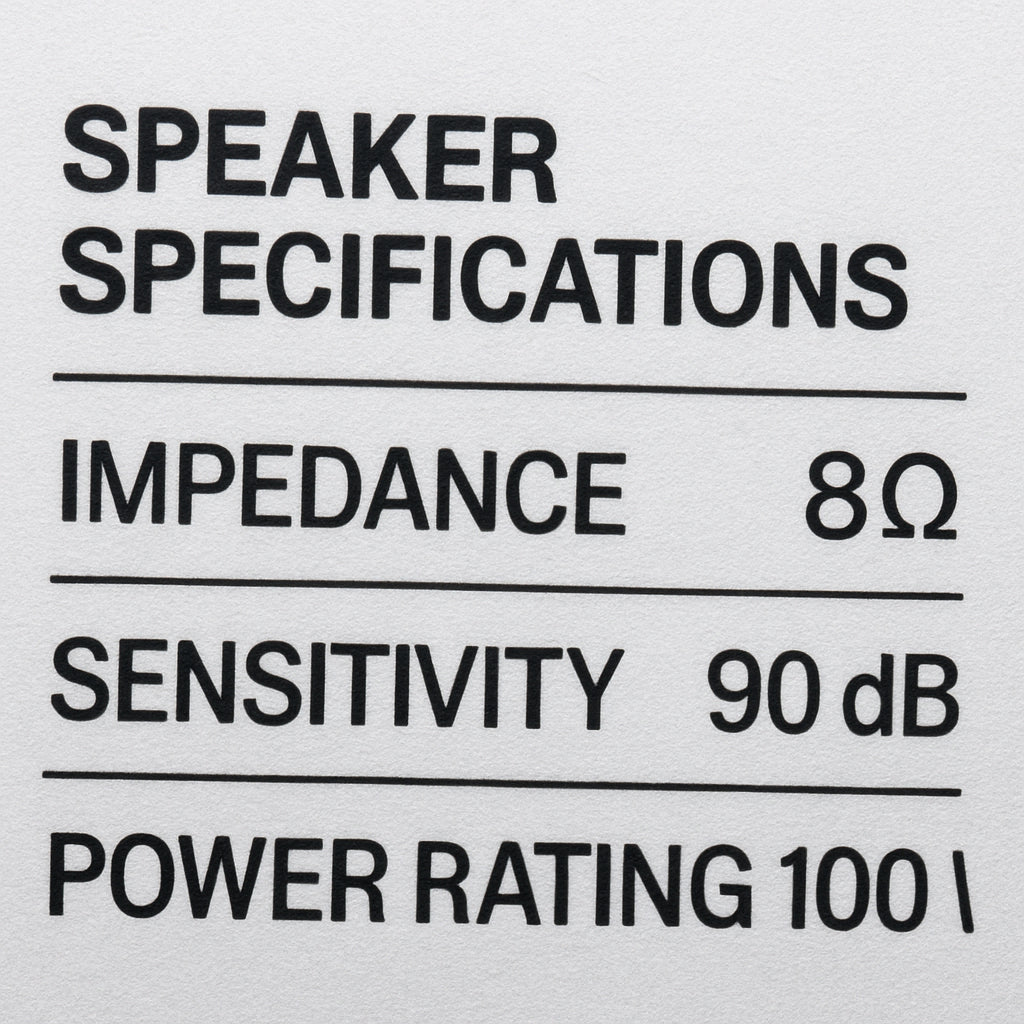

Speaking of visual help, here’s a quick snapshot of a spec sheet you might find.

Now, go ahead and pull out those specs. The more accurate the data, the smoother the gain setting. And if you ever want a deeper dive or a hands‑on walk through, feel free to reach out—we love a good audio puzzle.

Oh, and by the way, if you’re looking to light up your cabin with custom LED strips, check out LED Artistry for a selection of designs that complement any sound system.

Step 2: Gather Amplifier Parameters

Ready to pull the numbers from your amp? This is where the real math starts. You’ll look at three key values that the calculator can’t do without: RMS power, impedance, and the noise/THD figures that tell you how clean the output will be.

RMS Power

The RMS rating is the amp’s real‑world loudness. Think of it as the amount of continuous power the unit can deliver without blowing up. If your sub says it can handle 200 watts RMS at 4 Ω, that’s the ceiling you’ll aim for.

Impedance

Impedance tells the amp how much current the speaker will pull. A 4 Ω load means a higher current draw than an 8 Ω load, so the same amp will see a different voltage swing. Keep track of whether the amp is rated for 4 Ω, 8 Ω, or 2 Ω.

Noise and THD

Two extra numbers keep the sound clean: noise level (in dB) and THD+N (total harmonic distortion plus noise). If the noise SPL is negative, you’re basically in the clear. If it goes above zero, you’re hearing hiss that can bite into your bass. A THD+N below 0.1 % is a good goal for a sharp kick.

Using the Calculator

Once you have those three values, plug them into an online amplifier‑output calculator. We recommend the Benchmark Media tool, which updates results instantly as you tweak each input. It shows you the exact peak voltage you need, the expected distortion, and whether the amp is in its sweet spot.

Follow these three simple steps:

• Enter the amp’s RMS power and the speaker’s impedance.
• Add the amplifier’s noise SPL and THD+N values.
• Review the peak voltage recommendation and the distortion warning.

Why bother with all that? Because a mismatched voltage can cause clipping, which not only hurts your music but can permanently damage the speaker. By matching the voltage to the amp’s limits, you keep the bass clean and the components happy.

Real‑world Example

Imagine you’ve just installed a 300‑W RMS sub in a 2010 Ford F‑150. The amp you bought is rated 200 W RMS into 4 Ω and has a noise SPL of –10 dB. Plug the numbers into the calculator:

• RMS power: 200 W
• Impedance: 4 Ω
• Noise SPL: –10 dB
• THD+N: 0.05 %

The tool spits out a peak voltage of 12 V and flags a distortion warning at 14 V. So you dial the gain to stay at 12 V. When you play a track with heavy bass, you hear punch without any ringing or distortion.

Checking for Multi‑Sub Loads

If you’re running more than one sub, you must calculate the combined impedance. Two 4 Ω subs in parallel become a 2 Ω load. That pulls more current, so the amp’s peak voltage must be reduced to keep the total power under the RMS rating.

In practice, after wiring the subs, run the calculator again with the new impedance. Adjust the gain knob until the tool confirms the voltage is safe.

Document and Review

Write down every number you enter and every setting you tweak. Store a note with the amp model, speaker specs, and the exact gain value. Later, if you swap a sub or add a second amp, you’ll have a baseline to start from instead of guessing.

In the end, gathering these amplifier parameters isn’t just a step—it’s the foundation that lets you lock in clean, powerful bass every time you hit play.

Remember: the calculator is only as good as the data you feed it. Keep the numbers up to date as your system evolves.

Use the Benchmark Media tool for instant feedback.

Step 3: Calculate Required Gain Using the Formula

Alright, you’ve got your speaker specs and amp stats lined up. Now it’s time to bring the calculator to life and see what voltage swing actually looks like on paper.

Plugging the Numbers Into the Formula

The core formula we’re working with is Gain (dB) = 20 × log10(Vout / Vin). In this case, Vout is the peak voltage the amp can safely deliver, and Vin is the voltage your sub will need to hit its RMS rating.

Let’s walk through a concrete example. Imagine a 4‑Ω sub that’s rated 200 W RMS and an amp that can deliver 150 W RMS into 4 Ω. Using the V = √(P × R) rule, the sub needs about 8 V peak to hit 200 W RMS. The amp can push 10 V peak before it starts to clip. Plug those into the formula:

Gain = 20 × log10(10 / 8) ≈ 4.4 dB.

So, you need to dial the amp’s gain knob to about 4 dB above its zero‑gain position to give the sub the voltage it needs without over‑driving the amp.

What the Calculator Tells You

When you enter those numbers into the car audio amplifier gain calculator, you’ll get three key outputs:

• Recommended Peak Voltage: The exact volts the amp should supply for clean power.
• Maximum Safe Voltage: A warning line that shows where the amp will start clipping.
• Estimated Distortion: A quick % that tells you how clean the output will stay.

Seeing the numbers in one place is a game‑changer. You can immediately decide whether you need a higher‑gain amp or a sub with a lower sensitivity.

Fine‑Tuning With Real‑World Tracks

Now that you have a target voltage, it’s time to listen. Load up a bass‑heavy track—think a low‑end pop song or a classic rock anthem. Set the gain to the calculator’s recommendation, play the track, and listen for two things: punch and clarity.

If the bass feels thin or you hear a faint hiss, bump the gain by 1 dB and re‑play. If you hear that dreaded distortion after a few seconds, dial back to the safe line and try again. It usually takes 2–3 rounds to find that sweet spot.

Common Pitfalls and How to Avoid Them

1. Ignoring Sub Sensitivity: A high‑sensitivity sub (e.g., 93 dB) needs less voltage. Over‑feeding it can clip the amp early.

2. Assuming Linear Response: Amplifiers are not perfectly linear. The calculator gives a linear approximation; always validate with audio.

3. Changing the Load After Wiring: If you add or remove subs, re‑run the calculator. A 2‑Ω load can double the current draw, forcing you to lower the gain.

4. Skipping the Backup: Keep a written log of the gain setting, voltage, and amp model. If you upgrade or swap components, you’ll have a baseline to start from.

Putting It All Together

When you combine the calculator’s math with your ears, you’re essentially training the system to match the amp’s power envelope to the sub’s loudness envelope.

Take it to the road: once you’ve dialed in, hit a highway stretch and let the low end roll. If the bass still feels shy, you’re probably missing a crossover tweak or enclosure tuning.

And remember, the goal isn’t just to blast loud; it’s to deliver punch without distortion. That’s why the calculator’s role is pivotal— it gives you the numbers that let you tune with confidence.

In the world of car audio, precision matters. By following these steps, you’ll keep your amplifier healthy, protect your subs, and enjoy clean, powerful bass every time you hit play.

Also, if you’re thinking about upgrading your source material, check out the tools at Lord High Beat Producer. Better source files mean even cleaner bass in your car.

Step 4: Fine‑Tuning the Amplifier Settings

Now that your calculator has handed you a voltage target, the real art starts: turning that number into audible punch. Think of it like tuning a guitar—no single number tells you where the sweet spot is, but it gives you a map to walk toward. Let’s walk through the tweaks that bring the calculator’s math to life.

Listen and Adjust

Start by playing a track that has a lot of low‑end content—maybe a bass‑heavy EDM drop or a classic rock anthem. Turn the amp gain back to its lowest setting, then slowly raise it until you hear the sub begin to articulate. Stop when you still have headroom but the bass feels solid, not mushy.

Use the Calculator as a Compass

The calculator’s peak voltage recommendation is your north star. If it says 12 V, keep your gain dial in that zone. If the calculator flags a distortion warning at 14 V, you’re already past the safe line. That visual cue is priceless when your ears start to get fuzzy.

Check for Distortion

After you’ve dialed the gain, hit a few minutes of high‑bass music and listen for the telltale “hiss” or “crackle.” If you hear it, lower the gain by a notch and re‑listen. Distortion is the loudest way to say your amp is choking on the voltage swing.

Dial In Precise Voltage

Use a multimeter to measure the actual peak voltage at the amp output. Compare it with the calculator’s recommendation. If you’re off by a couple volts, tweak the gain until the numbers line up. A small dial adjustment can mean the difference between a clean thump and a buzzing hiss.

Document Your Settings

Write down the exact gain setting, the measured voltage, and the sub model. Store this in a simple spreadsheet or a note on your phone. Future you will thank you when you swap a sub or run a diagnostic later.

What If You Change Load?

Adding another sub or changing the enclosure can lower the overall impedance, pulling more current out of the amp. Re‑run the calculator with the new load figure, then adjust the gain again. The same voltage target keeps the amplifier from overheating and your bass from blowing out.

Common Mistakes to Avoid

• Assuming the first pass is perfect: Even a small mis‑tune can ruin a track.
• Ignoring temperature: Warm cars can push amps into clipping faster.
• Skipping the log: You’ll be guessing if something changes later.

Final Checklist

• Calculator gave you a target peak voltage.
• Gain dial is set just below that target.
• Measured voltage matches the calculator.
• No audible distortion during a test run.
• All settings logged for future reference.

When you’re satisfied with the sound, keep that setting for long‑term use. And remember, the calculator is a tool, not a replacement for a good listening ear. For a quick visual guide, see this YouTube video.

If you notice the bass still feels like it’s missing punch after all these steps, the issue might lie in your enclosure tuning or crossover slope. Tighten the enclosure volume or tweak the crossover frequency until the low end feels like it’s breathing in the car’s acoustic space. Small adjustments, like raising the 60 Hz crossover by 3 Hz, often make the difference between a flat ride and a bass‑driven adventure.

Step 5: Visualizing the Gain Curve

Imagine you’ve just dialed in the right voltage with your calculator. The next big question is: how do you keep that sweet spot on a map you can read at a glance?

We’re talking about a simple, hand‑drawn graph that shows voltage versus load or gain. It turns abstract numbers into a visual story your ears can follow.

Why a Curve Matters

Car audio systems are a moving target. Temperature rises, new speakers are added, or the car’s battery dips. A curve lets you see how the amp behaves as you slide the gain knob, so you’re not guessing when you hit a road trip or a busy street.

Think of it like a speedometer: it tells you where you’re safe and where you’re pushing the limits.

Setting Up Your Graph

Grab a simple spreadsheet—Excel, Google Sheets, or even a sketchbook. Create three columns: Gain (dB), Peak Voltage (V), and Notes.

Enter the baseline from your calculator: for example, 12 V at 0 dB, then add 1‑dB increments up to the maximum safe voltage your amp can deliver, say 14 V.

In the Notes column, jot whether the calculator flagged a distortion warning at that point. This turns numbers into a quick reference: “0 dB – 12 V, no distortion” or “3 dB – 13 V, mild hiss.”

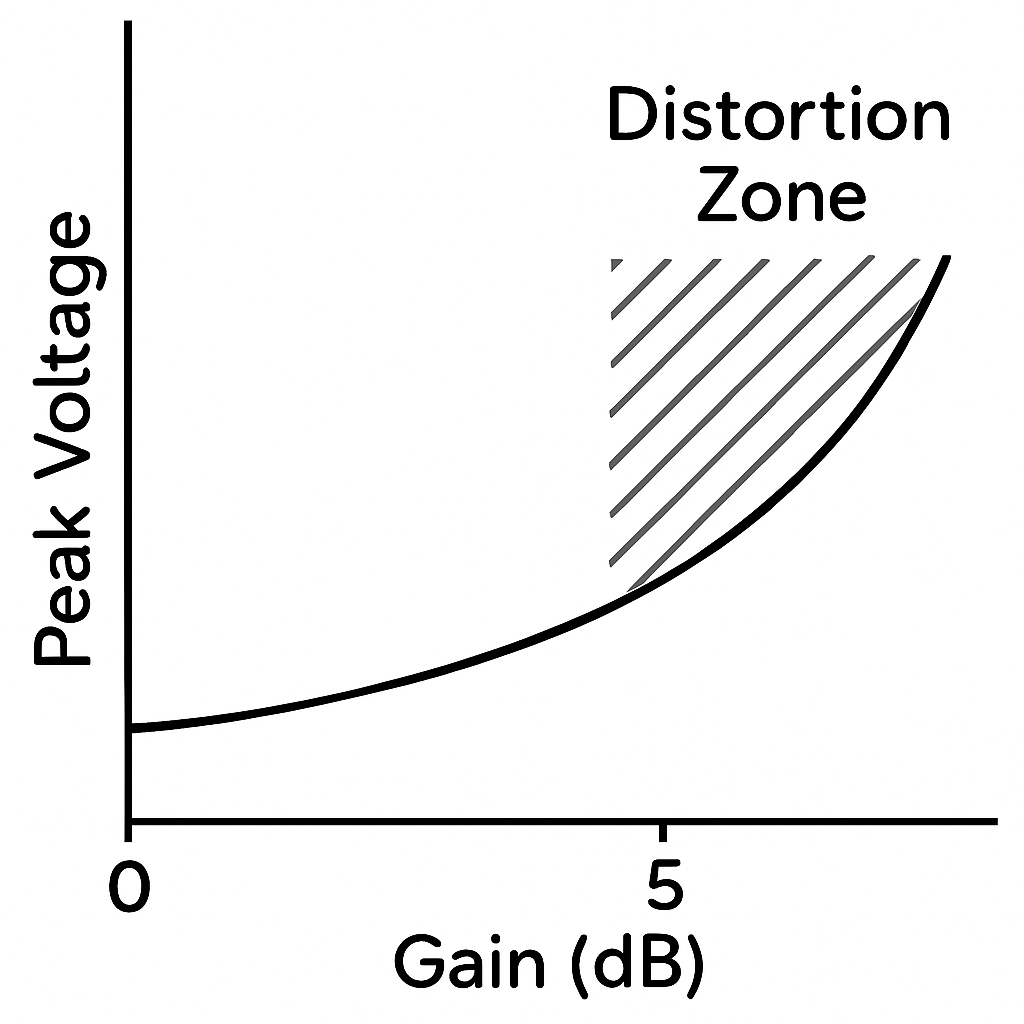

Plotting the Curve

Once your table is ready, insert a line chart. X‑axis: Gain (dB); Y‑axis: Peak Voltage (V). The line will rise gently as you increase gain.

Now, shade the region above the distortion threshold. That visual cue tells you immediately where the curve tips into unwanted territory.

Keep the chart on your phone or print it out and pin it next to the amp. Every time you tweak a setting, glance at the graph and you’ll know if you’re creeping toward clipping.

Using the Curve in the Field

During a test run, start at the lowest gain shown on the chart. Play a track with deep bass, then slide the knob up one step at a time, checking the audio and the chart.

If the sound gets muddy or you hear a hiss, you’re probably hitting the distortion line. Pull back a step and repeat.

Because the chart is visual, you can also share it with an installer or a friend who’s new to car audio. They’ll see the safe zone instantly—no need for complex calculations on the fly.

Keeping Your Curve Up‑to‑Date

Every time you swap a sub, add a new amp, or notice the car’s temperature change, run the calculator again. Update the table and redraw the curve.

Document the new safe voltage and note any shift in distortion threshold. Over time, you’ll build a library of curves that map the evolution of your system.

Quick Checklist

• Table of Gain vs. Voltage completed. • Line chart plotted with distortion shaded. • Chart accessible in the vehicle. • Updated after any hardware change. • Notes on distortion thresholds recorded.

When you’re comfortable with the visual, you can tweak with confidence. That’s the power of a clear gain curve: it turns data into a hands‑on guide you can trust.

Comparison of Common Amplifier Gain Settings

When you first hit the gain knob on a fresh amp, the numbers on the dial can feel like a secret code. But you don’t have to be a math wizard to make sense of them. Let’s break down the three most common settings you’ll bump into and see how each fits a different driving vibe.

Low Gain (0–2 dB)

Think of this as the “starter” mode. You’re just warming up the system, maybe listening to a podcast or a quiet playlist. The amp stays shy, giving the sub just enough headroom to avoid any clipping while still sounding punchy on a low‑end track.

Pros:

• Safe for any load—won’t blow a 2‑Ω pairing.
• Great for warm‑up and test runs.
• Keeps distortion at zero.

Cons:

• Can feel a bit flat if you’ve got a high‑sensitivity sub.
• You’re not fully exploiting the amp’s power.

When to use it: In a new build, before swapping subs, or when you’re cruising on a sunny highway and want clean, effortless bass.

Medium Gain (4–6 dB)

This is where most enthusiasts hang out. You’ve got a decent sub, maybe 90‑dB sensitivity, and you’re looking for that “just‑right” punch that makes a bassline thump without turning your car into a drum machine.

Pros:

• Balances loudness and clarity.
• Works well with 4‑Ω to 8‑Ω loads.
• Leaves room for a little more power if you need it.

Cons:

• Still a bit shy for high‑gain amplifiers that can push 12 V or more.
• Requires careful listening to avoid creeping distortion.

When to use it: On a weekend drive with friends, when you want your music to feel present but not overpowering. This setting is also a solid baseline before you tweak the crossover or enclosure.

High Gain (8–10 dB)

Now we’re talking full‑on. The amp is reaching close to its maximum voltage swing. You’ll hear that deep, rolling boom that can shake the steering wheel. It’s perfect for an aggressive track or when you’re trying to feel every beat on a late‑night road trip.

Pros:

• Maximum power for high‑efficiency subs.
• Creates an immersive low‑end experience.

Cons:

• Higher risk of clipping if you push too far.
• Requires a robust 4‑Ω or higher load; a 2‑Ω load can quickly exceed safe limits.

When to use it: If you’re an audiophile craving the full depth of a sub, or when you have a 14‑V amp and want to squeeze every ounce of clean power.

So, what does this mean for your setup? Start low, test, then step up. If the sound still feels shy, move up a couple of decibels and listen again. If you hear hiss or distortion, step back and check the voltage on the amp’s display.

And remember, the gain knob isn’t a one‑off. As temperature rises, or when you swap out a sub, you’ll need to revisit these numbers. That’s why a good amp will have a clear, labeled scale, and why many installers prefer a small, calibrated meter on the dash.

We’ve seen that a calibrated approach keeps the amp healthy and the bass consistent. In our experience, the right balance is often just a few decibels away from the sweet spot—so take your time, trust your ears, and let the numbers guide you.

Need a quick reference? The table below pulls together the key points for each setting so you can decide fast.

Conclusion

We’ve walked through the math, the meter, and the ear‑check that turns a jumble of numbers into a bass‑boost you can trust.

Now it’s your turn to make those calculations count in real life. Grab a notebook, jot the speaker’s impedance, the amp’s RMS rating, and the voltage you need. Plug them into the calculator and note the peak voltage target.

When you hit the gain knob, start at that target and listen. If the low end feels shy, bump a dB. If you hear hiss, dial back. Remember, temperature, battery age, and even the weather can shift those numbers, so keep a quick log and revisit as needed.

So, what’s the one takeaway? Your amplifier’s gain is a dial, not a destiny. By pairing the calculator’s guidance with a honest ear, you give your car a punch that’s clean, powerful, and safe.

Give yourself a minute to set, test, and document. Then you can drive with confidence, knowing your bass won’t bite or fade. Ready to crank up that sweet spot? Let’s do it.

And remember, the calculator is just a starting point. If you upgrade to a higher‑gain amp or swap in a more efficient sub, revisit the numbers. Consistency keeps your system healthy and your music fresh.

FAQ

What exactly is a car audio amplifier gain calculator and why do I need one?

A gain calculator takes your speaker’s power rating and the amplifier’s specs and spits out the exact voltage you should feed the amp to avoid clipping. It’s like a GPS for your sound system: without it you’re guessing whether your amp will blow up or sit in a dead zone. Using the calculator means you get a clean, punchy bass without distortion.

How do I use the calculator without messing up my amp?

First gather the amp’s RMS rating, impedance, and noise/THD values. Then plug them into the calculator along with the speaker’s impedance and sensitivity. The tool will recommend a peak voltage. Set your gain knob just below that value, test with a bass-heavy track, and adjust by a dB if the bass feels shy or the hiss starts creeping in.

What happens if my car’s battery is weak or the temperature is high?

Both battery voltage and temperature can push the amplifier closer to its limits. A weak battery means less voltage available, so you might need to dial the gain down a bit. High temperatures increase the amp’s internal resistance, which can also raise distortion. Keep a quick log of your settings and revisit the calculator when conditions change.

Can I use the same gain setting for all cars and all speakers?

Not really. Each car’s power distribution, wiring, and interior acoustics are unique. Similarly, a 90 dB sub behaves differently from a 95 dB one. That’s why the calculator uses your exact numbers; the same gain knob on a different set of speakers can either under‑drive or clip. Always run the calculator for each new component or car model.

Is it safe to keep the gain at the calculator’s maximum recommended voltage all the time?

The calculator’s max is the boundary where the amp starts to clip. Staying just below that value gives you headroom for transient peaks, which are normal in music. If you sit at the very edge, any sudden surge—like a bass drop—can push you over the limit and damage the amp or speakers. Aim for a safety margin of one or two volts.

What should I do if the calculator shows a distortion warning?

First double‑check your inputs: a wrong impedance or an unrealistic power rating can skew the result. If the warning stays, lower the gain until the warning disappears. It’s better to play safe than risk a loud, distorted hiss that can ruin your listening experience and, eventually, your gear.

Can I rely on the calculator alone, or should I still listen?

The calculator gives you numbers, but your ears are the final judge. Use the tool to set an initial target, then play a track you love. If the bass feels off—too thin or too harsh—adjust the gain in small increments. Combining calculation with listening ensures both precision and the vibe you’re after.

What if I upgrade my amp or add another sub later?

Every time you change a component, you need to re‑run the calculator. Adding a second sub changes the total impedance, which can pull more current and lower the safe voltage. Updating the calculator keeps your system healthy, prevents clipping, and lets you maintain that crisp bass you love.
