A 10-channel DSP isn't a random spec number. It maps directly to one specific and common high-performance car audio architecture: active 3-way front stage (tweeter, midrange, and midbass, left and right = 6 channels), rear fill (left and right = 2 channels), and dual subwoofers driven by an external sub amp via RCA pre-outs (2 channels). That's 10 total. The Goldhorn DSPA 810 Pro is built around exactly this layout, with 8 amplified outputs handling the front and rear channels and 10-channel 6V RCA pre-outs feeding the sub amp. If you've been wondering whether you need 8 channels or 10, the answer comes down to whether your front stage is a 2-way component set or a 3-way active build. This article breaks down the architecture and the hardware spec by spec. For background on what a DSP does at a fundamental level, start with our DSP overview.
- 10 channels maps to a specific architecture: 6 ch active 3-way front stage + 2 ch rear fill + 2 ch sub via RCA pre-out. That's the whole equation.
- The Goldhorn DSPA 810 Pro covers this with 8 amplified outputs (65W RMS / 4 ohm each) and 10-channel 6V RCA pre-outs. We're the exclusive US importer.
- Active crossovers move the filter from inside the speaker cabinet to the DSP. Passive crossover networks lose approximately 10% of amplifier power as heat. (Elliott Sound Products)
- The DSPA 810 Pro's time alignment resolves to 0.02 ms steps, giving you sub-millimeter positioning precision at high crossover frequencies.
- If your front stage is a 2-way component set, 8 channels is enough. 10 channels is the step you take when you add a midrange driver.
What 10 Channels Actually Gets You
Ten channels covers one complete architecture without compromise. Active 3-way front stage requires 6 channels: tweeter left, tweeter right, midrange left, midrange right, midbass left, midbass right. Rear fill takes 2 more. The subwoofer pair, run through an external mono or stereo sub amp via RCA pre-out, accounts for the final 2. Add them up and you get 10. Nothing is shared, nothing is bridged to compensate for a channel shortage.
On the DSPA 810 Pro, the 8 amplified outputs (65W RMS each into 4 ohms) handle the front 6 channels and rear 2 channels directly. The sub channels route out through the unit's 10-channel 6V RCA pre-outs to your choice of external subwoofer amplifier. The 6V output level matters here: a higher pre-out voltage gives your sub amp's gain control more range to work with and keeps its input stage from running at maximum sensitivity, which improves the noise floor at the sub amp's output.
10-Channel Active Architecture: How the Channels Are Used
Every driver in this system gets its own dedicated amp channel, its own crossover filter set in the DSP, its own time alignment value, and its own EQ curve. That's the whole point. Nothing is shared.
Active vs. Passive: Why the Crossover Location Matters
A passive crossover sits between the amplifier and the speakers. It's a network of capacitors, inductors, and resistors that splits the amplified signal into frequency bands for each driver. Elliott Sound Products has documented that a passive crossover network wastes approximately 10% of amplifier power as heat inside the cabinet. (Elliott Sound Products) You're paying for that power in your amplifier's electrical load. It doesn't reach a speaker cone.
An active crossover moves the frequency splitting to the DSP, where it happens at line level before amplification. Each driver gets its own amplifier channel. No passive components sit between the amp output and the driver terminals. The full rated power of each channel goes directly to the intended driver.
The practical effect isn't just efficiency. Active crossovers in a DSP run in the digital domain, so the filter slopes, frequencies, and phase characteristics are adjustable from the tuning software. A passive crossover's values are fixed at manufacture. If your measurement shows the tweeter needs a crossover point of 3,200 Hz instead of the 3,000 Hz the passive network was wound for, you adjust it in the software. With passive, you resolder components or buy a different crossover.
With a passive crossover, you set amplifier gain once for the full speaker system, tweeter and woofer together. There's no practical way to adjust the relative level between them without a different passive network. With an active setup in a DSP, every channel has its own gain trim. That means you can pull up a measurement mic, run a sweep, and pull the tweeter level down 1.5 dB without touching anything else. That's not a workflow difference. It's a fundamentally different class of control that makes flat measured response achievable by anyone willing to learn the tools, not just builders who can wind custom inductors.
Phase relationship between adjacent drivers is where the active advantage compounds. When a tweeter and midrange share a crossover point, their phase curves overlap in a frequency band where both are contributing output. A DSP gives you 0-359 degree phase rotation per channel and time alignment at 0.02 ms resolution to align those drivers acoustically at the listening position. A passive network gives you a fixed phase response you can't adjust after installation.

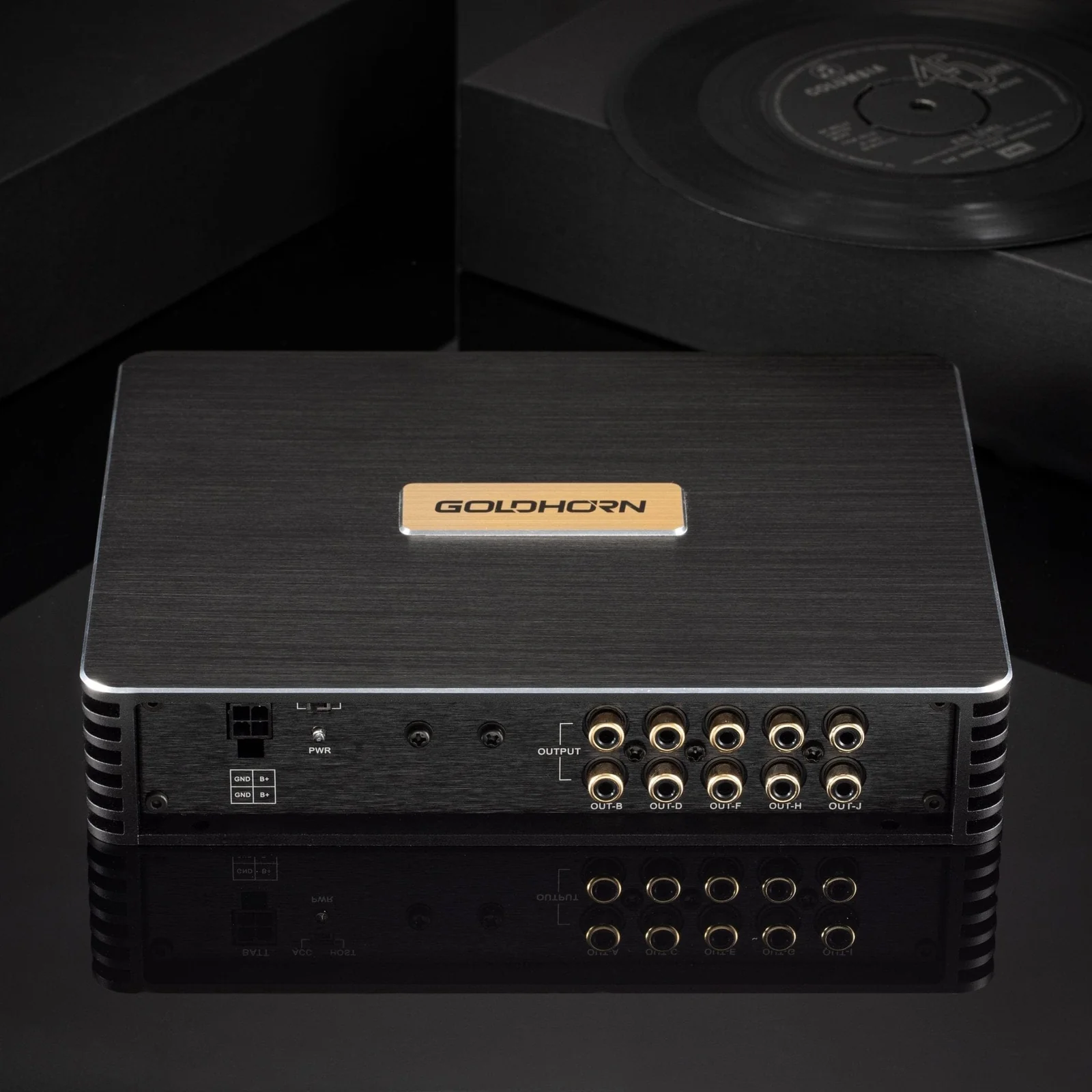

Goldhorn DSPA 810 Pro: Spec by Spec
The DSPA 810 Pro is built around the Analog Devices ADAU1450 DSP chip, rated at 1.2 BIPS (billion instructions per second). The ADC is dual PCM1862, measuring 106 dB dynamic range noise ratio. The DAC is PCM1690 at 113 dB DNR combined with PCM1754. DAC THD+N measures below 0.0004%. These are the numbers that determine what the unit adds to your signal path on its own, before any speaker, room, or amplifier variables enter the picture.
EQ and Crossover Capability

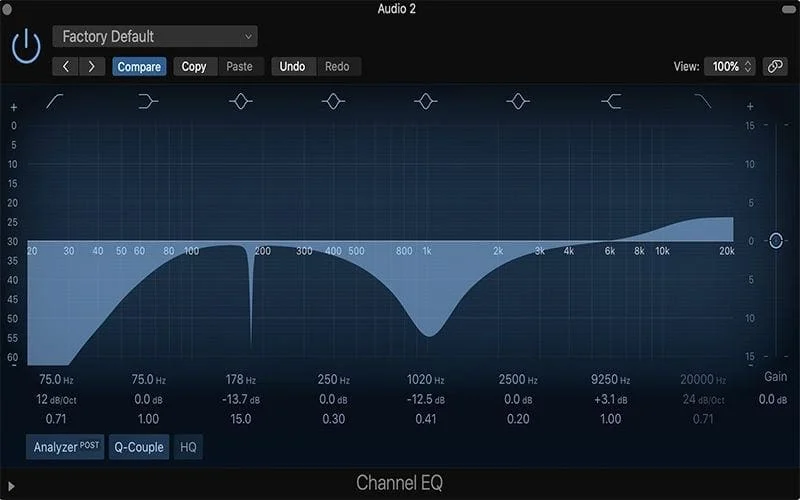

Each output channel gets 31-band parametric EQ with plus or minus 15 dB range. That's a different category from a 5-band or 10-band EQ. With 31 bands per channel, you can address narrow room modes or driver resonances without affecting neighboring frequencies. The input side has 5-band EQ at plus or minus 15 dB, which handles broad corrections to the source signal before per-channel processing. For crossover DSP tuning guidance, see our DSP settings guide.
Crossover filter options cover Butterworth and Bessel at 6, 12, 18, 24, 30, 36, 42, and 48 dB/octave, and Linkwitz-Riley at 12, 24, and 36 dB/octave. Linkwitz-Riley at 24 dB/octave (LR-24) is the standard choice for most active installs because it produces flat summed response at the crossover frequency when both drivers are at the same level. Bessel is worth knowing for its linear phase response at the cost of a slower rolloff.
Time Alignment Precision
Time alignment range is 0 to 17 ms with 0.02 ms resolution. At 3 kHz, one full period is 0.33 ms. The 0.02 ms step size represents about 6% of that period. That precision level lets you dial in the phase relationship between a tweeter and midrange at the crossover frequency without rounding to the nearest tenth of a millisecond. At 1 kHz, where a midbass and midrange might share a crossover point, 0.02 ms is roughly 7mm of acoustic distance. That's workable for SQ competition alignment.
Inputs, Outputs, and Connectivity
The DSPA 810 Pro accepts 8 high-level inputs (0.3-30V), 2 RCA inputs (0.3-8V), and 1 optical input via SPDIF at up to 96 kHz/24-bit. Bluetooth 5.0 covers aptX HD, AAC, and SBC. The 8 high-level input range means it connects directly to factory speaker outputs up to 30V, which covers the vast majority of OEM amplified systems without an adapter. Auto turn-on works via signal sensing or 12V trigger. Start-stop ready means the protection circuit handles the voltage dip during engine restart without shutting the unit off and rebooting.
RCA output THD+N is below 0.002%. Amplifier THD+N is below 0.05% at 1 kHz. Amplifier SNR exceeds 100 dB. RCA output SNR is 105 dB. Sample rate runs up to 96 kHz/24-bit. Input voltage range is 10.5-15.5V DC with 2x 30A fusing. Physical dimensions are 217 x 170 x 43 mm (8.5" x 6.7" x 1.7") and the unit weighs 1.8 kg (4.0 lbs). Eight preset memory slots cover different listening modes or seasonal tuning profiles.

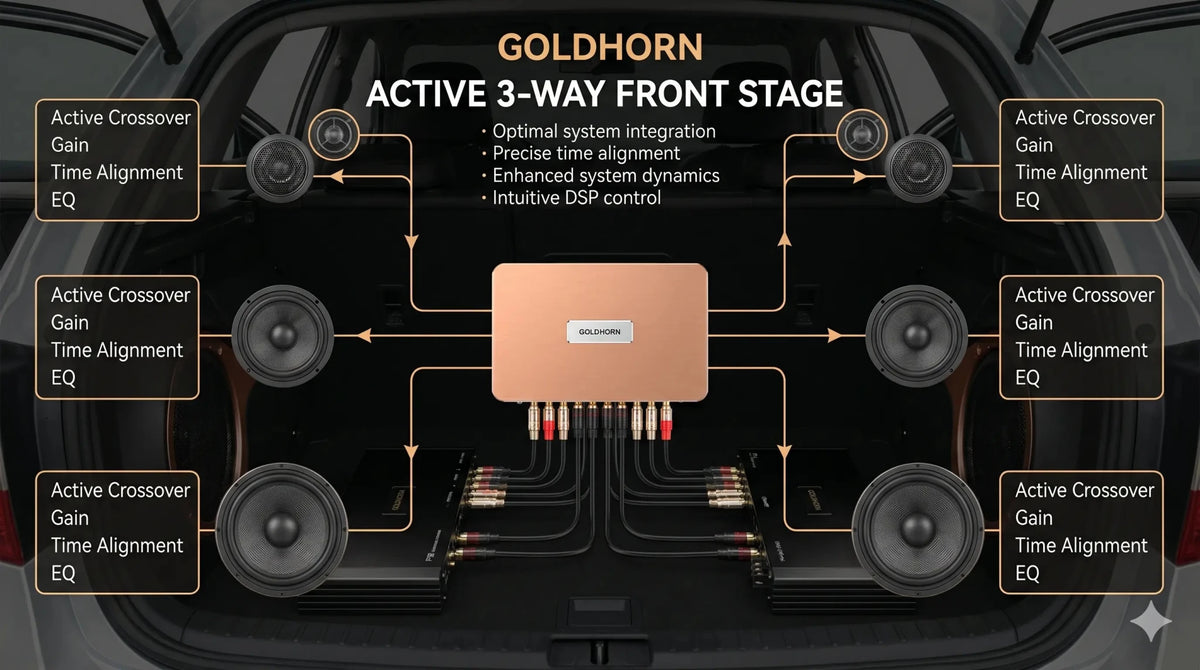

An active 3-way front stage separates tweeter, midrange, and midbass into individual channels. Each driver gets its own crossover, gain, time alignment, and EQ in the DSP.
I've run the DSPA 810 Pro in a customer build with Image Dynamics tweeters, Audiomobile midranges, and Crescendo midbass drivers on the front stage. The noise floor is low enough that I don't fight converter artifacts when I'm sweeping the midrange channel with a measurement mic. The 6V pre-out is the right spec for the sub amp in this install. I'm running the sub amp's gain at about 40% of its range, which keeps the amp's input stage well away from clipping on transients. The tuning software is straightforward once you understand the routing matrix. Channel assignment, delay values, and EQ all live in the same view.
How Does the Signal Path Work in a 10-Channel DSP System?
Signal flow through the DSPA 810 Pro follows a straightforward path: source to input stage, through DSP processing, out to amplified speaker outputs and RCA pre-outs. Understanding each stage clarifies why input selection and routing assignments matter before any tuning happens.
Source Input Options
The DSPA 810 Pro accepts four types of source input. High-level inputs (8 channels, 0.3-30V) connect directly to existing speaker wires, which is how most OEM integration installs begin. RCA inputs (2 channels, 0.3-8V) connect to an aftermarket head unit's pre-out jacks. The optical input accepts SPDIF at up to 96 kHz/24-bit from a compatible head unit or transport. Bluetooth 5.0 with aptX HD, AAC, and SBC covers wireless phone playback. Only one input source is active at a time. The unit's routing matrix assigns which physical inputs feed which processing channels.
DSP Processing Stage
Once the signal enters the ADAU1450 processor, it runs through the input EQ (5-band, plus or minus 15 dB) before splitting into the output channel routing matrix. From there, each of the 10 output channels applies its own 31-band parametric EQ, crossover filter, time alignment delay, and phase correction independently. The order of operations inside the DSP is input EQ, then routing, then per-channel processing. This means input EQ corrections apply globally across all output channels derived from that input.
Output Routing: Amplified Channels and RCA Pre-Outs
The 8 amplified outputs carry the front stage and rear fill signals directly to speaker terminals. In a 10-channel active build, channels 1-2 go to tweeters, 3-4 to midranges, 5-6 to midbass, and 7-8 to rear fill. The 10-channel RCA pre-outs at 6V carry all 10 processed channels as line-level signals. In this architecture, channels 9-10 on the pre-outs route to your external sub amp. You can also use the pre-outs to feed a second or third amplifier if you want to use external amps for the front stage instead of the internal amplification.
When Do You Need 10 Channels vs. 8 or 12?
Channel count decisions come down to front stage driver count and sub amp configuration. The rule is simple: count your drivers and match channels to them, one per driver. There's no benefit to extra channels you don't use, and there's a real cost to under-channeling a system because you'll end up bridging or sharing channels to compensate.
8 Channels: Active 2-Way Front Stage
An 8-channel DSP covers an active 2-way front stage (tweeter and woofer, left and right = 4 channels), rear fill (left and right = 2 channels), and dual subs via external amp (2 channels via RCA pre-out). If your front stage is a quality 2-way component set, 8 channels handles the full system without compromise. This is the right architecture for 90% of performance builds that haven't added a dedicated midrange driver.
10 Channels: The Move to Active 3-Way
The step to 10 channels happens when you add a midrange driver to the front stage. Now the front stage is tweeter, midrange, and midbass, each needing its own channel. That's 6 front channels instead of 4. Add rear fill (2 ch) and subs (2 ch) and you're at 10. This is where the DSPA 810 Pro lives. A 3-way front stage with a properly placed midrange driver at ear level, running from roughly 300 Hz to 3,000 Hz, is where competitive SQ installs separate from the rest. The midrange carries the bulk of vocal and instrument detail, and having it on a dedicated channel lets you tune its level, crossover, and time alignment independently from the midbass.
12 or More Channels
Twelve channels extends to center channel fills, bi-amped subwoofers, or a fourth driver per side in the front stage. Center channel is relevant for builds tuned for IASCA or EMMA judging criteria where front stage width and center image stability are scored. Bi-amped subs add a second amp channel per subwoofer, which is more useful for high-output SPL builds than for SQ. For most daily-driven SQ builds, 10 channels covers the complete architecture without requiring the complexity and power budget of a 12-channel system.
One of the more common mistakes I see in 10-channel builds is treating the rear fill channels as an afterthought. The rear fill level and crossover point relative to the front stage affects the apparent width and depth of the soundstage in ways that a measurement mic won't fully capture. I typically high-pass the rear fill around 250-300 Hz, run the level 6-10 dB below the front stage, and use the time alignment to place them well behind the front stage acoustically. That keeps them from pulling the image backward while still filling the rear cabin. Get the front stage right first, then blend the rears in carefully.
| Channel Count | Front Stage | Rear Fill | Subs | Use Case |
|---|---|---|---|---|
| 8 ch | Active 2-way (4 ch) | 2 ch | 2 ch via pre-out | 2-way component set, full system |
| 10 ch | Active 3-way (6 ch) | 2 ch | 2 ch via pre-out | 3-way front stage with midrange driver |
| 12 ch | Active 3-way (6 ch) | 2 ch | 4 ch (bi-amped or 4 drivers) | Center channel, bi-amped subs, or 4-way front |
Source: audiointensity.com system architecture reference
The full Goldhorn lineup, including the DSPA 810 Pro and other channel configurations, is at /collections/goldhorn. For questions about matching a DSP to a specific install, reach us at /pages/contact-us.
