Have you ever wondered what makes some car subwoofers deliver deep, clean bass even at crazy cone excursions without the typical distortion? In this guide, XBL2 motor technology explained uncovers how this advanced motor design revolutionizes ultra-high-excursion subs to achieve lower distortion and more consistent performance. Whether you’re an audiophile or a car audio enthusiast aiming for the best possible bass experience, understanding the XBL2 motor will help you appreciate its unique capabilities and how it compares to traditional designs. Let’s dive into how this innovative technology reshapes subwoofer performance and what it means for your sound system.
What is XBL2 Motor Technology?
Core Design Principles

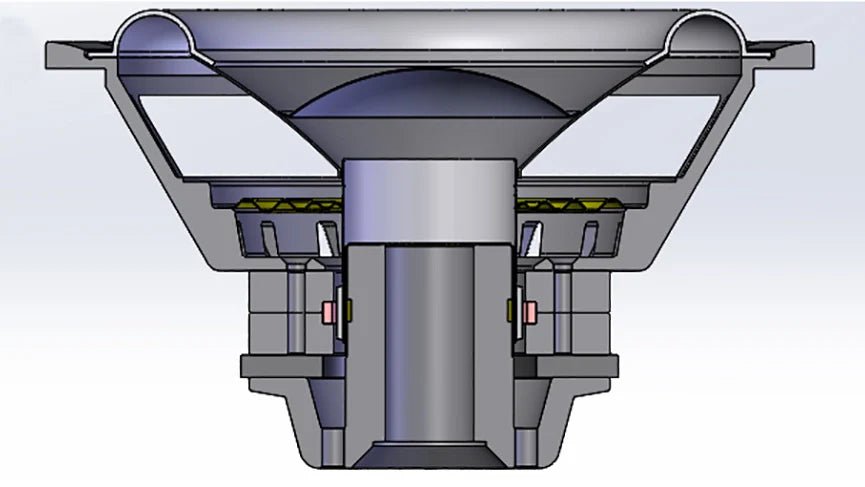

XBL2 (Extended Boundary Layer 2) motor technology is a patented subwoofer motor design developed to improve linearity and reduce distortion during long cone excursions. Unlike conventional motors with a single magnetic gap, XBL2 employs multiple narrow, high-flux magnetic gaps stacked vertically to effectively create a segmented magnetic structure. This split-gap system lets the voice coil remain under consistent magnetic force over a greater length of travel.
How XBL2 Achieves Ultra-High Excursion
The technology enables drivers to use a shorter coil positioned inside these multiple magnetic gaps. As the coil moves out of one magnetic region, it enters the next, ensuring strong and stable magnetic flux across the entire excursion range. This design reduces the common problem where coil strength diminishes as it leaves a single gap, leading to distortion. The flatter, plateau-like BL curve of XBL2 motors maintains consistent motor force with distance, resulting in better control and cleaner bass even at high excursion.
Benefits of XBL2 Motor Technology Explained
Low Distortion and Improved Linearity
One of the standout advantages of XBL2 is the significant reduction in distortion, particularly at high excursion levels. Traditional overhung or even underhung motors typically show increasing distortion as the coil leaves the center magnetic gap. XBL2’s multi-gap motor topology keeps distortion remarkably low by offering uniform magnetic flux. This translates into clean, natural bass with less coloration, creating an immersive listening experience.
Efficiency and Power Handling Considerations
The technology also supports excellent power handling and transient response due to reduced inductance and coil mass compared to longer coil designs. However, the reduced overall magnetic strength, inherent in the shorter coil and motor geometry, means XBL2 subs often require higher amplifier power to achieve the same SPL as some traditional designs. Despite this, the improved linearity and control often outweigh efficiency concerns for audiophiles seeking maximum sound quality.
- Consistent BL force across large excursions
- Reduced distortion at mid to high excursion ranges
- Enhanced transient response with lower inductance
- Compact coil size for lighter moving mass
- Power demands generally higher but balanced by sound quality gains
How XBL2 Compares to Other Motor Designs
Vs. Overhung and Underhung Motors
Traditional overhung motors have longer coils extending beyond the magnetic gap, resulting in a parabolic BL curve that peaks at the resting position and declines at high excursion. This causes uneven motor force and higher distortion. Underhung motors offer a flatter BL curve but can be inefficient due to a longer gap and coil length, increasing mass and inductance. XBL2 optimizes this by splitting the magnetic gap, using a shorter coil that still maintains a flat BL curve and reduces inductance.
Comparison with Linear Motor Technology (LMT) and TC Motors
LMT motors attempt to flatten the BL curve by layering coils but often increase coil mass and inductance, impacting transient response and efficiency. TC motor designs use long coils in shorter gaps but require complex suspensions to control coil rocking, which adds cost and complexity. XBL2’s approach achieves similar or better linearity and excursion with simpler coil designs and fewer mechanical compromises.
Applications of XBL2 in Ultra-High-Excursion Subwoofers
Ideal Use Cases
Because XBL2 excels at delivering linear motor force over extended excursions, it’s especially suited for subwoofers designed to push cone travel beyond typical limits. These are frequently used in seaked or specialized ported enclosures where excursion control is critical for performance and reliability. High excursion combined with low distortion creates a subwoofer capable of producing deep, tight bass at high volume without the muddiness or distortion common in lesser designs.
Example Subwoofers Featuring XBL2 Motors
Many audiophile-grade subwoofers integrate XBL2 motor technology to achieve this balance. For instance, the Adire Audio Kali 18″ ultra-high excursion subwoofer uses an XBL2 motor to combine power handling, efficiency, and low distortion in a compact package. These drivers underscore the technology’s benefits in real-world car audio applications.
Potential Drawbacks and Design Trade-offs
Efficiency vs. Sound Quality
While XBL2 motors provide remarkable linearity and lower distortion, this comes at the cost of somewhat reduced efficiency compared to traditional designs. Smaller coil lengths and multiple magnetic gaps mean that overall motor strength can be slightly lower, requiring more amplifier power for the same output. This trade-off is generally a conscious decision by manufacturers prioritizing sound quality over raw volume.
Manufacturing Complexity and Cost
XBL2 motor assemblies involve precision machining and more complex magnetic structures than typical motors, potentially increasing production cost. However, this can be offset by a shorter magnetic top plate and reduced coil length. The net effect depends on the scale and application but is reflected in pricing and availability of these subs.
How to Maximize Performance with XBL2 Subwoofers
Choosing the Right Enclosure
Ultra-high-excursion XBL2 subs generally perform best in properly matched enclosures that minimize mechanical stress. Sealed boxes or large vented enclosures that allow the sub to operate within its linear excursion range avoid clipping and distortion. Correct enclosure tuning and size ensure the subwoofer’s strengths are fully expressed.
Amplifier and Setup Tips
Due to their power demands, XBL2 subwoofers benefit from amplifiers capable of delivering clean, stable power at high currents. Using digital signal processing (DSP) to control excursion limits and apply equalization also helps maintain sound quality and protects the speaker from damage.
Conclusion: Understanding XBL2 Motor Technology Explained
In summary, XBL2 motor technology explained reveals why this innovative motor design is a standout in ultra-high-excursion subwoofers. By utilizing multiple magnetic gaps and a shorter coil, XBL2 achieves a flat BL curve with remarkably low distortion and improved linearity even at large cone excursions. Although it may require more amplifier power and involve higher manufacturing complexities, the trade-off is cleaner, deeper bass without the typical distortion issues of traditional motors. For those seeking premium car subwoofers that excel in power handling, sound clarity, and excursion control, exploring XBL2-equipped products like the advanced high-excursion subs from leading brands could be a game-changer. Dive deeper and explore how this technology can elevate your audio setup today.
