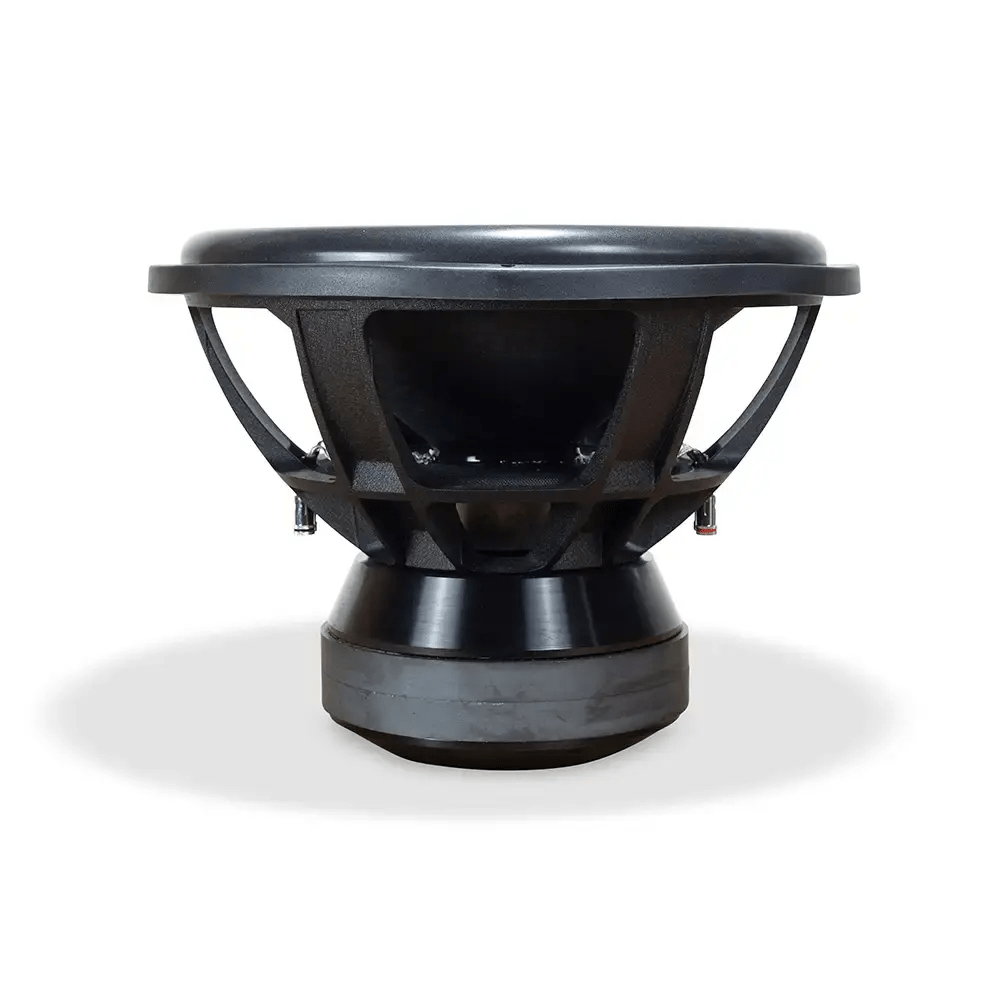

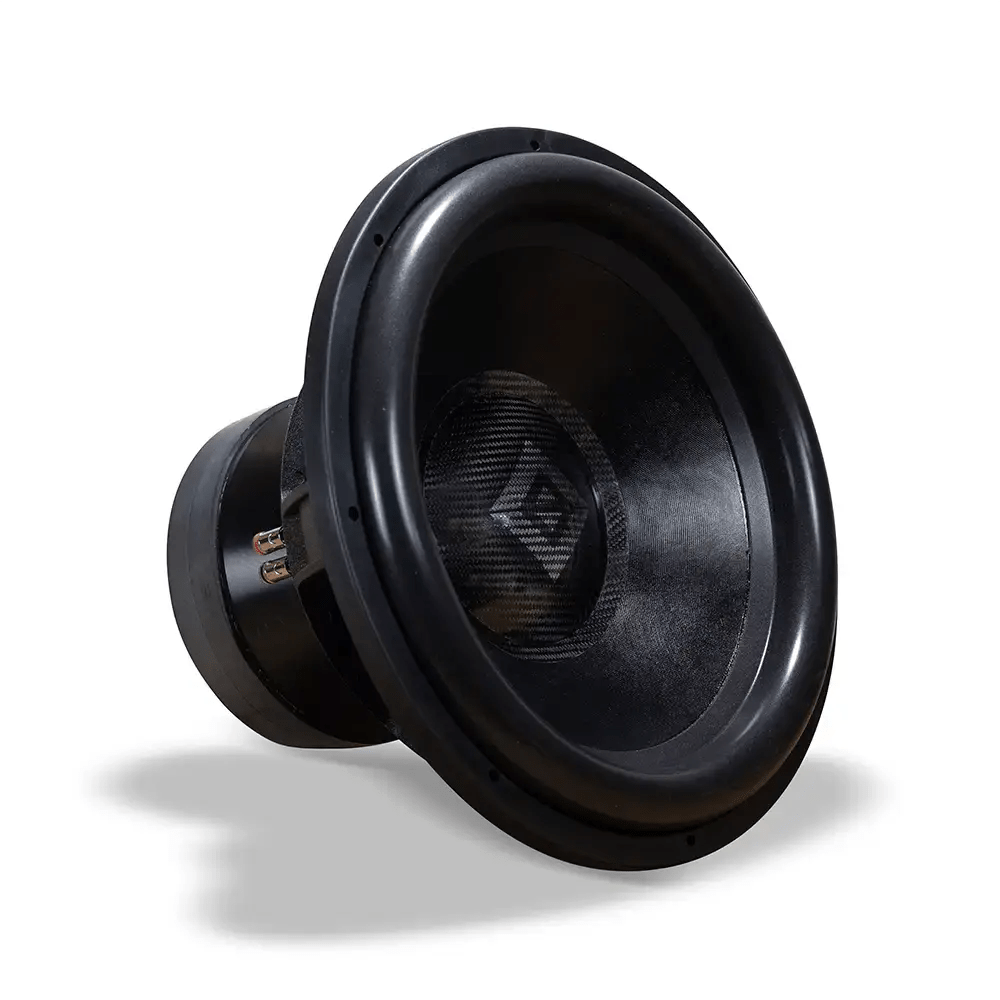

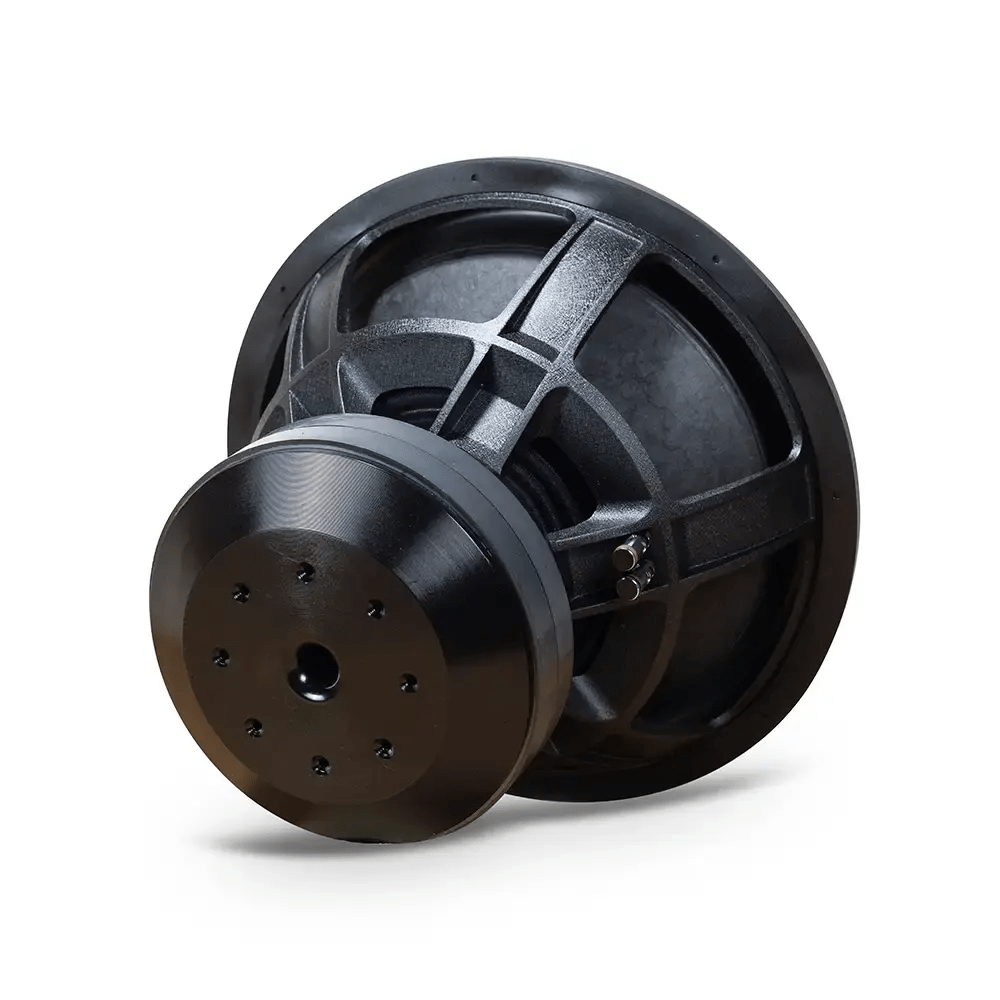

Adire Audio Kali 18″ | 3000w XBL2 Car Audio Subwoofer

Technical Specifications

The First 4" Coil XBL² Ultra Subwoofer Ever Made

When Adire Audio introduced the Kali series in August 2019, they weren't just launching another high-excursion subwoofer—they were proving a concept that had never been attempted in the two-decade history of XBL² technology. No one had ever built a 4-inch voice coil ultra-high-excursion driver using dual-gap motor topology. The challenge wasn't just scaling up coil diameter; it was maintaining the fundamental XBL² advantage—flat BL curves across extreme excursion—while managing the massive inductance, moving mass, and magnetic field requirements of a 101.6mm coil diameter.

The Kali 18" solves this through several engineering breakthroughs. The dual 250mm Y35 ferrite magnet stacks create an ultra-strong magnetic field across a precision-machined dual gap that keeps motor force (Bl) within 5% variance across 48mm of total excursion—a level of linearity that conventional overhung or underhung motors simply cannot achieve. Dual aluminum shorting rings throughout the FEA-optimized motor structure minimize inductance (0.80 mH per coil on D2, 1.61 mH on D4) despite the massive coil diameter, allowing transient response that rivals drivers half this size. The 4-layer flat-wound aluminum voice coil dissipates heat efficiently enough to handle 3000 watts continuous power, while CNC-machined gap venting ensures thermal management during sustained high-output operation.

The result? A subwoofer that can move 40mm one-way (80mm peak-to-peak) with distortion figures under 1% THD at 70% of Xmax—less than 30% of the distortion produced by conventional motor topologies at equivalent excursion. This is the advantage of XBL²: when other motors start collapsing in force and generating harmonic distortion as the coil moves off-center, the Kali's dual-gap design keeps delivering linear force, tracking input signals with accuracy that's more common in midrange drivers than subwoofers capable of rattling your skeleton.

Understanding XBL² Motor Technology — The Dan Wiggins Revolution

To understand why the Kali 18" represents such a significant achievement, you need to understand what XBL² (eXtreme BL Linearity) actually does. In traditional subwoofer motor designs—whether short-gap/long-coil (overhung) or long-gap/short-coil (underhung)—motor force (Bl) drops dramatically as the voice coil moves off-center during excursion. In conventional topologies, a 10% Bl decrease occurs at just 18–23mm of excursion. By the time you're at 40mm (where the Kali operates), conventional motors have lost 20–30% of their force, generating massive amounts of harmonic distortion as they struggle to accelerate and decelerate the cone.

Dan Wiggins' patented XBL² design solves this through a revolutionary dual-gap motor topology. Instead of one continuous magnetic gap, XBL² creates two separate high-intensity magnetic fields separated by a precisely machined groove in the pole piece. The voice coil is sized so that as it moves in excursion, it transitions smoothly between these two gaps, maintaining near-constant exposure to magnetic flux. The result is a BL curve that stays within 5% variance across 24mm of total excursion—while conventional motors vary 12–18mm for the same 5% tolerance.

This isn't just theoretical—it's measurable and audible. In FEA (Finite Element Analysis) comparisons published in Adire's 2006 technical paper, XBL² motors demonstrated 3.5× lower distortion than traditional overhung designs at equivalent excursion levels. At ±10.8mm excursion (70% of rated Xmax in the example), conventional short-gap/long-coil motors measured 3.5% THD, while XBL² measured just 1.0% THD. Scale this advantage up to the Kali's 40mm one-way excursion capability, and you're looking at a subwoofer that can deliver competition SPL levels with the accuracy and control of a sealed studio reference monitor.

The secondary benefits are equally significant. Because XBL² maintains flat Bl curves with shorter voice coils than overhung designs, it dramatically reduces moving mass and inductance—both critical for transient response. The Kali's 4-layer flat-wound aluminum coil, despite its 4" diameter, has inductance comparable to conventional 3" coils. Lower moving mass (468g D2, 463g D4) means faster acceleration and deceleration. The shorter coil also provides more mechanical clearance in the motor structure, allowing extreme excursion without requiring triple spiders or exotic suspension geometries that compromise linearity.

Proprietary Suspension System — 10" Dual Progressive Roll Spiders

The motor is only half the story. To realize 40mm one-way excursion with linear force restoration across 80mm of peak-to-peak travel, Adire developed a proprietary suspension system that represents years of material science research. The 10-inch dual progressive roll spider profile uses a custom-blended phenolic resin-impregnated Nomex poly-cotton material that Adire describes as "the most durable and long-life" spider technology they've developed to date.

The progressive roll design provides non-linear restoring force that matches the Kali's extreme excursion capability—light enough for high sensitivity in normal operation, stiff enough to prevent over-excursion during peak transients. The 10-inch diameter distributes stress across a larger surface area than conventional spiders, reducing flex-induced distortion and improving power handling. The phenolic resin impregnation stabilizes the Nomex poly-cotton fibers against humidity and temperature changes, ensuring the suspension maintains consistent compliance across years of use and environmental exposure.

The multi-layer foam surround complements the spider suspension by providing high-excursion capability with minimal edge resonance. Unlike single-density foam or cloth surrounds that can introduce peaks in frequency response, the multi-layer construction damps edge reflections while maintaining flexibility across 40mm of one-way travel. The combination of progressive spiders and multi-layer foam creates a suspension system that behaves linearly whether the Kali is reproducing a 20 Hz organ pedal note at reference level or tracking a rapid bass guitar transient at moderate volume.

Non-Pressed Paper Cone and Carbon Fiber Dust Cap

The Kali's non-pressed kraft pulp hybrid fiber blend cone represents a deliberate choice in favor of natural damping characteristics over maximum stiffness. Pressed paper and composite cones offer higher rigidity, but they also store and release energy in ways that create audible coloration—ringing, breakup modes, and frequency response peaks that make bass sound "one-note" or disconnected from the musical content. The hybrid fiber blend used in the Kali provides optimal stiffness-to-mass ratio while damping cone resonances naturally through fiber-to-fiber friction.

This is the same philosophy that made Adire's original Brahma subwoofer legendary in the early 2000s—prioritizing accuracy over maximum SPL. The non-pressed cone flexes microscopically during excursion, dissipating energy that would otherwise emerge as harmonic distortion. Combined with the XBL² motor's linear force delivery, the result is bass that tracks musical content with accuracy normally associated with much smaller drivers. You hear the texture of a double-bass note, the attack transient of a kick drum pedal strike, the decay of a timpani resonance—not just a wall of low-frequency energy.

The carbon fiber dust cap with diamond pattern reinforces the central cone area without adding excessive mass. Carbon fiber's high stiffness-to-weight ratio prevents dust cap deformation during extreme excursion while maintaining pistonic motion across the Kali's usable bandwidth. The diamond pattern adds structural rigidity through geometric bracing, distributing stress evenly across the cap surface. This attention to detail—engineering every component for linearity rather than just peak output—is what separates the Kali from conventional "SPL competition" subwoofers that sacrifice accuracy for maximum dB numbers.

3000 Watts Continuous, Extreme Power Handling Through Thermal Engineering

The Kali 18" is rated for 3000 watts RMS continuous power—not "peak" or "max" marketing numbers, but genuine thermal power handling under sustained operation. This capability comes from several thermal management innovations working in concert. The 4-layer flat-wound aluminum voice coil maximizes surface area for heat dissipation while maintaining low DC resistance (3.72Ω for D2, 6.83Ω for D4 when coils are wired in series). Aluminum's thermal conductivity moves heat away from the coil windings faster than copper, preventing thermal compression and voice coil failure during extended high-output operation.

CNC-machined gap venting creates precision airflow channels through the motor structure, allowing heated air to escape while drawing cooler air from the pole vent and basket venting. This isn't passive cooling—during excursion, the voice coil acts as a pump, forcing air through the gaps with every stroke. At 40mm one-way excursion and typical music frequencies (20–80 Hz), the Kali is moving hundreds of liters of air per minute through its motor structure, creating active convective cooling that keeps the voice coil within safe operating temperatures even during sustained 3000-watt input.

The dual aluminum shorting rings serve double duty—they minimize inductance for better transient response, and they also act as heat sinks, absorbing thermal energy from the voice coil and radiating it into the surrounding motor structure. The massive dual 250mm Y35 ferrite magnet stacks provide additional thermal mass, stabilizing motor temperature during sustained operation. The combination of active air pumping, conductive heat dissipation through aluminum rings, and radiative cooling from the magnet structure creates a thermal management system capable of handling the continuous 3000-watt rating that Adire specifies—not for seconds, but for hours.

Enclosure Recommendations — Sealed vs. Ported for Different Applications

The Kali 18" works across a wide range of enclosure alignments, but your choice between sealed and ported will dramatically affect system performance and character. With Qts of 0.46 (D2) or 0.45 (D4) and Fs of 22.87 Hz (D2) or 23.15 Hz (D4), the Kali is optimized for large sealed enclosures or vented alignments tuned to the low 20s.

Sealed Enclosure (3.0–6.0 ft³ net): A sealed alignment prioritizes accuracy, transient response, and deep infrasonic extension. In a 4.0 ft³ sealed enclosure, you'll achieve system Qtc around 0.60–0.65 (slightly underdamped for room gain compensation) with F3 (-3 dB point) in the 25–28 Hz range. The advantage is visceral, tactile bass response that tracks musical content with accuracy—the Kali stops and starts instantly, with no port overhang or group delay artifacts. You hear every detail of the bass line, not just sustained tones. Sealed alignments work brilliantly for music applications where accuracy matters more than maximum SPL: jazz, classical, acoustic music, and any genre where you want to hear the texture of the bass, not just its presence.

Ported Enclosure (6.0–8.0 ft³ net): A vented alignment maximizes output in the upper bass region (30–60 Hz) and extends low-frequency response below the driver's Fs. In a 7.0 ft³ enclosure tuned to 22–24 Hz, you'll achieve F3 around 20 Hz with approximately +3 dB peak near the tuning frequency—perfect for home theater, EDM, hip-hop, or any application where maximum output and subsonic extension matter. The trade-off is group delay (time smearing) near the tuning frequency and reduced transient response compared to sealed. Ported alignments also require more space—figure 8+ cubic feet after port displacement and bracing. But if your goal is to shake the structure of your vehicle or room with authority down to 20 Hz, a properly tuned ported enclosure with the Kali will deliver output that rivals subwoofers costing two to three times as much.

The Kali's 40mm Xmax provides significant safety margin in either alignment. Even at high output levels where conventional subwoofers are pushing mechanical limits, the Kali is operating comfortably within its linear excursion range, maintaining low distortion and avoiding over-excursion damage. This headroom translates to reliability—you can drive the Kali hard, for years, without fear of mechanical failure or performance degradation.

Adire Audio History — Dan Wiggins and the Resurrection of a Legend

Adire Audio was founded in the late 1990s/early 2000s by Dan Wiggins with a singular vision: build the biggest, baddest transducers on the planet. Wiggins—an experienced loudspeaker designer and acoustical engineer—recognized that the car audio and DIY speaker markets were dominated by marketing hype rather than genuine engineering innovation. Conventional subwoofers prioritized peak power handling and maximum SPL over linearity and accuracy, resulting in bass that sounded impressive in short demonstrations but fatiguing and inaccurate during extended listening.

Wiggins' solution was XBL² (eXtreme BL Linearity) motor technology, a patented dual-gap design that fundamentally changed how subwoofer motors behave during excursion. By creating two separate high-intensity magnetic fields within a single motor structure, XBL² maintained flat motor force across excursion ranges that conventional topologies couldn't match. The technology wasn't just innovative—it was measurable. Adire published detailed FEA analyses and distortion measurements showing 3.5× lower THD compared to conventional overhung motors at equivalent excursion. The audiophile and DIY communities took notice.

Adire's product line became legendary: the Shiva (500W affordable XBL² subwoofer), Tempest (750W mid-tier), and Brahma (1000W flagship with DUMAX-verified 27.3mm Xmax using just a 1.1" voice coil—unheard of at the time). These subwoofers dominated sound quality competitions and DIY forums throughout the early-to-mid 2000s, establishing XBL² as the reference standard for low-distortion subwoofer design. But as with many passion-driven audio companies, business challenges emerged. Adire closed in 2008, and the team moved on to other industries.

In 2018, Andrew Gutierrez and Brandon Reder—two audio enthusiasts in their 30s who had grown up using Adire gear—approached Dan Wiggins with a proposal: resurrect Adire Audio with his consulting guidance, staying true to the original vision of engineering-first, marketing-second transducer design. Wiggins agreed, recognizing in them the same passion that had driven the original Adire team. The new Adire Audio, now based in Thousand Oaks, California, relaunched the classic Shiva, Tempest, and Brahma models (now Brahma Mk 2.5) while developing entirely new products that pushed XBL² technology into uncharted territory.

The Kali series, introduced in 2019, represents the first major innovation in XBL² technology in over a decade—the world's first 4-inch voice coil ultra-high-excursion subwoofer using dual-gap motor topology. As Adire states on their website: "The dream of creating the best XBL² transducers is still alive!" It's not just marketing—it's a statement of intent. In an industry increasingly dominated by offshore manufacturing and cost-cutting, Adire is building subwoofers in the United States with engineering specifications that prioritize accuracy, linearity, and long-term reliability over short-term profit margins.

Condition Notes — New, Opened for Pictures

Who Should Buy the Kali 18"?

The Adire Audio Kali 18" isn't for everyone—and that's by design. This is a subwoofer built for enthusiasts who understand the difference between output and performance, between SPL numbers and actual bass quality. Here's who will appreciate what the Kali offers:

Sound Quality Competitors: If you're building an IASCA, MECA, or EMMA sound quality competition vehicle, the Kali's XBL² motor delivers the low distortion and accuracy that judges reward. The 40mm Xmax provides headroom to reproduce reference tracks at competition levels without audible distortion or mechanical stress. The linearity advantage of dual-gap topology is measurable—and in blind listening tests, immediately obvious.

Audiophile Home Theater Builders: Dual 18" Kalis in a sealed alignment will deliver reference-level output down to 20 Hz with distortion figures that compete with $5,000+ subwoofers from JL Audio, REL, or Paradigm. The accuracy advantage is particularly noticeable in movie soundtracks with complex bass content—explosions have texture and layering rather than just "boom," and you hear the difference between a 25 Hz rumble and a 30 Hz impact.

SPL Competitors Who Care About SQ: If you're building a daily-driven SPL system but want bass that still sounds good when you're not on the meter, the Kali offers a rare combination of 3000-watt power handling and audiophile-grade linearity. You can run multiple Kalis at 10,000+ watts system power and still maintain transient accuracy that conventional SPL subwoofers sacrifice for maximum output.

DIY Audio Engineers: If you understand T/S parameters, enclosure modeling, and motor topology trade-offs, the Kali's specifications tell a compelling story. The low Qts (0.45–0.46) and low Fs (22–23 Hz) indicate a driver optimized for large sealed or vented alignments with deep extension. The high Bl values (22.35 Tm D2, 30.61 Tm D4) combined with 40mm Xmax indicate a motor with massive force capability across extreme excursion. The low inductance (0.80/1.61 mH) despite 4" coil diameter shows the effectiveness of aluminum shorting rings. These aren't marketing specs—they're engineering data that tells you exactly how this driver will behave in real-world applications.

Adire Audio Alumni: If you owned a Brahma, Tempest, or Shiva back in the 2000s and wondered what happened to Adire after they closed in 2008, the Kali represents the resurrection of that engineering philosophy—but evolved. This is XBL² technology pushed to its theoretical limits, built with 2019 manufacturing capabilities and materials science that wasn't available 15 years ago. It's a chance to own a piece of Adire history while supporting the brand's revival under new ownership.

The XBL² Advantage in Context — Why Linearity Matters

If you've read this far, you understand the technical details of XBL² motor topology. But it's worth stepping back and asking: why does linearity matter? Why spend engineering resources—and customer dollars—chasing flat BL curves and low distortion when conventional overhung motors can produce massive SPL for less money?

The answer comes down to what you're trying to reproduce. If bass is just a physical sensation—a pressure wave that moves your chest and rattles your mirrors—then maximum displacement and power handling are all that matters. But if bass is musical content that carries melody, rhythm, texture, and emotional information, then accuracy becomes critical. You need to hear the difference between a 30 Hz kick drum fundamental and a 35 Hz bass guitar note. You need to resolve the attack transient of a double-bass bow strike separate from the fundamental tone. You need to track rapid bass lines in fusion jazz without the notes blurring together into undifferentiated low-frequency energy.

This is where XBL² technology delivers advantages that aren't obvious in spec sheets but are immediately audible in real content. When a conventional motor's Bl force drops 20% at high excursion, it doesn't just mean "less output"—it means the driver is no longer tracking the input signal accurately. The cone is moving, but it's not following the electrical waveform with fidelity. Distortion products emerge: harmonics that weren't in the original signal, intermodulation between simultaneous bass notes, time smearing as the cone fails to stop and start precisely. Your brain perceives this as bass that sounds "boomy," "one-note," or "disconnected" from the rest of the frequency spectrum.

The Kali's flat BL curve across 40mm of excursion means the motor force remains constant whether the cone is at rest position or at maximum displacement. The driver tracks input signals with the same accuracy at high output that it achieves at low output. You hear what's in the recording, not what the subwoofer adds through nonlinear behavior. For audiophiles, sound quality competitors, and anyone who listens critically to music rather than just feeling bass pressure, this linearity advantage is what justifies the Kali's price and engineering complexity.
