Zapco HDSP-Z16 V AD-8A
8-Channel DSP with Integrated HD Player | Professional Digital Signal Processing
The Driving Force Since 1974
The Zapco HDSP-Z16 V AD-8A represents five decades of unwavering commitment to sonic excellence. Since 1974, Zapco has been the gold standard in car audio, setting benchmarks that define the industry. This flagship DSP combines Zapco's legendary analog heritage with cutting-edge digital processing technology, delivering a level of performance that separates mere equipment from true audiophile instruments. With modular construction featuring 15 independent PCBs, dual-core processing power, and upgradable DAC/ADC modules, the HDSP-Z16 V AD-8A offers unprecedented flexibility and sonic purity for the discerning enthusiast who demands nothing less than perfection.
Extraordinary Noise Floor Performance
Experience digital processing with an absolutely silent background. The HDSP-Z16 V AD-8A achieves an astonishing -140dB floor noise specification (average from 80Hz-20kHz), a level of quietness that rivals professional studio equipment. This extraordinary performance reveals micro-dynamic details and spatial cues that remain masked in lesser processors. The premium AK5558 ADC (32-bit, 784kHz, 115dB DNR) and AK4458 DAC (32-bit, 784kHz, 115dB DNR) converters ensure that every nuance of your music passes through with laboratory-grade precision and transparency.
Modular High-End Architecture
Unlike integrated single-board designs, the HDSP-Z16 V AD-8A employs 15 independent PCBs in a true modular architecture. This sophisticated approach isolates critical signal paths, minimizes crosstalk, and allows for future upgradability. Separate power supply boards eliminate ground loop possibilities. Dedicated converter modules can be upgraded to even higher-performance variants. Independent processor boards optimize signal routing. This is engineering without compromise—a philosophy that has defined Zapco for over 48 years and continues to set them apart from commodity manufacturers.
Dual-Core Processing Powerhouse
The OMAP L-138 dual-core processor architecture dedicates 456MHz to DSP operations and another 456MHz to the integrated HD player, ensuring that neither function compromises the other. The 32-bit DSP core (expandable to 64-bit IEEE double precision) operates at 192kHz sampling rate with both fixed and floating-point processing capabilities. This computational power enables 15-pole parametric EQ per channel, sophisticated crossover filters (Linkwitz-Riley, Butterworth, Bessel, Chebyshev), and 1Hz/1-degree phase adjustment resolution—all simultaneously without processing bottlenecks or sonic degradation.
Integrated HD Audio Player
The dedicated 456MHz ARM9 32-bit player processor handles high-resolution audio files up to 192kHz/24-bit with effortless precision. Support for WAV, AIF, AIFF, FLAC, ALAC, AAC, and MP3 formats ensures compatibility with any library. USB memory stick support (FAT32, up to 2TB) provides massive storage capacity for lossless collections. Browse by file, artist, album, or title. The player operates independently from DSP functions, maintaining pure signal quality without the compromises inherent in source units that combine multiple functions into overtaxed single processors.
Technical Specifications
Laboratory-Grade Measurements Defining Professional Performance
🎚️ Configuration
8-Channel DSP
with HD Player
🔊 DSP Processor
OMAP L-138
2 × 456MHz, 32-Bit
⚡ Processing
Fixed & Floating Point
Up to 64-Bit IEEE
📊 Sampling Rate
192kHz DSP
Professional Grade
🎵 Player Processor
456MHz ARM9 32-Bit
192kHz/24-Bit Playback
🔬 ADC Processor
AK5558 32-Bit
784kHz, 115dB DNR
📡 DAC Processor
AK4458 32-Bit
784kHz, 115dB DNR
📈 Frequency Response
5Hz - 90kHz
Extended Bandwidth
🎯 THD+N
0.0006% Digital Input
0.0008% Analog Input
🔊 Device Floor Noise
-125dB (20Hz-20kHz)
-140dB (80Hz-20kHz)
📊 S/N Ratio Digital
115-120dB A-Weighted
Premium Performance
📉 S/N Ratio Analog
109-115dB A-Weighted
Studio Grade
🎚️ Crosstalk
>110dB (300Hz-900Hz)
Average 115dB
🔌 Analog Inputs
8× RCA Low Level
8× High Level
📡 Digital Inputs
Optical, SPDIF
3× i2S (24-Bit/192kHz)
🔊 Analog Outputs
8× RCA 4V
5kΩ, 100Ω Impedance
📱 Control Interface
3" Touch Screen
10 Preset Memory
📶 Wireless Control
Wi-Fi External Module
Included
🎼 Parametric EQ
15 Poles Per Channel
Professional Precision
🔧 Crossover Filters
Linkwitz, Butterworth
Bessel, Chebyshev
⚙️ Phase Control
All Channels
1Hz/1° Steps
🔌 Power Supply
6V-16V Operating
750mA @ 14.4V
🛡️ Protection
1A Fuse
Stop-Start Compatible
📐 Main Unit Size
217×164×57mm
Compact Design
📱 Dashboard Size
111×16×49mm
Low-Profile Display
Advanced DSP Features & Technology
Professional-grade processing capabilities that define reference-quality sound tuning
Premium AKM Converter Architecture
The HDSP-Z16 V AD-8A employs premium Asahi Kasei Microdevices (AKM) converters renowned for sonic excellence. The AK5558 32-bit ADC operates at 784kHz with 115dB dynamic range, capturing analog signals with extraordinary fidelity. The AK4458 32-bit DAC mirrors this performance on the output side, reconstructing digital signals with 115dB dynamic range and vanishingly low distortion. These converters operate at sampling rates far exceeding the DSP's 192kHz processing rate, eliminating any possibility of aliasing artifacts or conversion-related coloration. The result is a transparent window into your music.
15-Pole Parametric Equalization
Each of the eight output channels features 15 poles of fully parametric equalization, providing surgical precision for system tuning and acoustic correction. Adjust frequency center points with fine resolution, set Q (bandwidth) from narrow notch filters to broad shelving, and apply gain boost or cut with precision. This level of EQ capability exceeds what most professional studio processors offer, enabling you to compensate for speaker response irregularities, cabin acoustics, and personal tonal preferences with absolute precision. The parametric architecture maintains phase coherence better than graphic EQ designs.
Professional Crossover Architecture
The HDSP-Z16 V AD-8A offers multiple crossover filter topologies to match your specific driver requirements and sonic preferences. Linkwitz-Riley filters provide flat summed response at the crossover point, ideal for most applications. Butterworth filters offer maximally flat passband response. Bessel filters maintain excellent phase characteristics and transient response. Chebyshev filters provide steep roll-off when space constraints demand narrow transition bands. Slope options accommodate any speaker system design. This flexibility allows you to implement active crossover systems with professional-grade precision.
Precision Phase & Time Alignment
Phase and time alignment capabilities separate amateur installations from professional systems. The HDSP-Z16 V AD-8A provides 1Hz/1-degree phase adjustment resolution on all channels, allowing you to compensate for driver acoustic centers and achieve perfect phase coherence at the listening position. Time delay adjustment enables precise acoustic centering of the soundstage regardless of asymmetric speaker placement. The VSEQ filter (50-200Hz, 1Hz steps) addresses cabin resonances and standing waves that color bass response. These tools transform your vehicle into an acoustically neutral listening environment.
Comprehensive Control Options
The HDSP-Z16 V AD-8A offers multiple control interfaces to suit any installation and user preference. The included 3-inch touch screen dashboard provides direct access to volume, balance, fader, tone, and preset selection without requiring a computer or smart device. Ten preset memory slots allow instant switching between different tuning configurations for various musical genres or listening preferences. The included Wi-Fi external module enables wireless tuning via smartphone or tablet. Direct USB connection to PC provides the most robust tuning interface with full visualization and control over every parameter.
High-Resolution Audio Playback
The integrated HD player delivers true high-resolution audio playback that reveals why audiophiles invest in lossless formats. The dedicated 456MHz ARM9 processor handles files up to 192kHz/24-bit without downsampling or conversion, preserving every bit of information from studio masters. Support for WAV, AIF, AIFF, FLAC, ALAC ensures compatibility with any format preference. USB memory stick support with FAT32 formatting accommodates up to 2TB of storage—enough for thousands of high-resolution albums. Organize your library by file structure, artist, album, or title for intuitive browsing and selection.
Modular Upgradability
The 15-PCB modular architecture enables unprecedented upgradability. Optional converter upgrades allow enthusiasts to customize sonic character: AK5578 ADC (32-bit, 784kHz, 121dB DNR) provides enhanced dynamic range. AK4490 DAC (32-bit, 784kHz, 120dB DNR) offers refined output quality. ES9038PRO DAC (32-bit, 784kHz, 132dB DNR) represents the ultimate performance tier with reference-grade specifications. This modular philosophy protects your investment by allowing sonic evolution without replacing the entire processor. Zapco designed the HDSP-Z16 V for enthusiasts who appreciate the ability to fine-tune not just DSP parameters but the fundamental sonic character itself.
Input & Output Flexibility
Comprehensive connectivity accommodating any source and system architecture
🎚️ Analog Input Options
Eight RCA low-level inputs (1-5V sensitivity) accept conventional source unit outputs. Eight high-level inputs (4-20V) enable direct connection to factory or aftermarket amplifier outputs, perfect for OEM integration installations. Input flexibility accommodates 2-channel, 4-channel, 6-channel, 8-channel configurations plus OEM SUM and AUX modes. This versatility ensures the HDSP-Z16 V integrates seamlessly regardless of your source architecture.
📡 Digital Input Capabilities
Five digital inputs provide maximum source flexibility. Optical (24-bit/192kHz) eliminates ground loop possibilities. SPDIF coaxial (24-bit/192kHz) offers robust connection for longer cable runs. Three i2S inputs (24-bit/192kHz) enable direct digital connection from compatible sources, bypassing any analog conversion stage. Digital input mode selection (HD, Optical, Coax, i2S 1/2/3) accommodates multiple simultaneous sources with instant switching capability.
🔊 Analog Output Configuration
Eight RCA outputs deliver 4V maximum (5kΩ load, 100Ω output impedance) with sufficient drive capability for any amplifier input stage. Independent output channels enable sophisticated system architectures: active crossover configurations, multi-zone installations, or complex bi-amping/tri-amping scenarios. The low 100Ω output impedance drives long cable runs without high-frequency roll-off, maintaining signal integrity regardless of installation constraints.
⚙️ I/O Setup Flexibility
Configurable I/O setup modes optimize signal routing for any application. 2-channel mode for simple stereo systems. 4-channel for front/rear or active 2-way. 6-channel for front/rear/subwoofer or active 3-way. 8-channel for complex multi-way active systems. OEM SUM mode simplifies factory integration by summing multi-channel factory outputs. AUX mode provides auxiliary input routing. This flexibility accommodates systems from simple to sophisticated.
🎵 Integrated HD Player Input
The internal HD player functions as a high-resolution digital source, feeding the DSP with pristine 192kHz/24-bit audio directly from USB storage. This integrated approach eliminates external source units and their associated compromises. Store your entire lossless library on a 2TB USB stick. The dedicated ARM9 processor handles playback without taxing DSP resources, maintaining processing headroom for complex tuning scenarios.
📶 Wireless Connectivity
The included Wi-Fi external module enables wireless tuning via smartphone, tablet, or laptop without physical USB connection. Perfect for fine-tuning while seated in the listening position, making real-time adjustments as you evaluate sonic changes. Optional Bluetooth aptX HD module provides wireless streaming with near-lossless quality, offering convenience without compromising too much on audio quality for casual listening scenarios.
🔌 Power Supply Requirements
Operating voltage range of 6V-16V accommodates any vehicle electrical system including cranking and charging scenarios. Low current draw of 750mA at 14.4V minimizes electrical system load. 1-ampere fuse protection prevents damage from wiring faults. Stop-start ignition system support ensures reliable operation in modern vehicles with start-stop technology. The wide voltage tolerance and low current requirement make installation straightforward in any vehicle.
🎯 Tuning Interface Options
Easy and Expert tuning modes accommodate both novice users and professional installers. Easy mode provides simplified interfaces for common adjustments. Expert mode unlocks full parameter access for sophisticated tuning. "Double Front" functionality enables advanced soundstage manipulation for asymmetric seating positions. The flexible tuning software adapts to user skill level, providing guidance when needed while never limiting experienced tuners from accessing every available parameter.
The Zapco Legacy: 50 Years of Excellence
Understanding the heritage that defines the HDSP-Z16 V AD-8A
🏆 Since 1974: Industry Leadership
Zapco's journey began in 1974 with a singular mission: pursue audio fidelity without compromise. For five decades, Zapco has consistently set the standards by which all other manufacturers are judged. The HDSP-Z16 V AD-8A continues this tradition, incorporating lessons learned from 48 years of car audio innovation. When you choose Zapco, you're not just buying equipment—you're investing in a legacy of excellence that spans generations of audiophile engineering.
🎼 Processing Evolution: From Analog to Digital Mastery
Zapco's processing heritage traces back to 1978 with the legendary PEQ 9-band dual-channel preamp EQ. The PX followed—the first parametric EQ for automotive use. The 90's brought the SX series with balanced inputs and high-voltage outputs. In 2004, Zapco led the industry to digital with the DC line. The DSP-Z8 series refined digital processing through multiple generations. The HDSP-Z16 V represents the culmination of this evolution, combining analog heritage with cutting-edge digital technology.
🔬 Engineering Without Compromise
Zapco's philosophy rejects cost-cutting measures that compromise performance. The 15-PCB modular architecture costs more to manufacture but delivers superior sonic results. Premium AKM converters exceed commodity alternatives in every measurable parameter. Upgradable modules add complexity but provide long-term value. This engineering-first approach explains why Zapco products remain relevant for decades while commodity equipment becomes obsolete within years. The HDSP-Z16 V embodies this uncompromising philosophy.
💎 Previous Display Model Offering
This Zapco HDSP-Z16 V AD-8A represents an exceptional opportunity to acquire a meticulously maintained display unit at significant savings. Originally showcased to demonstrate Zapco's uncompromising engineering and extraordinary measured performance, this processor has been professionally tested and verified to perform identically to factory-fresh units.
Display models from Audio Intensity offer reference-grade performance with substantial value. These units have been carefully preserved in climate-controlled environments and handled exclusively by trained audio professionals. Each display model undergoes comprehensive functionality testing across all inputs, outputs, and processing functions before being offered for sale, ensuring you receive a fully operational processor backed by verified specifications and Zapco's legendary build quality.
What "Display Model" Means:
- Pristine condition with minimal to no visible wear
- Never installed in a vehicle or used in daily operation
- Maintained in professional audio demonstration environment

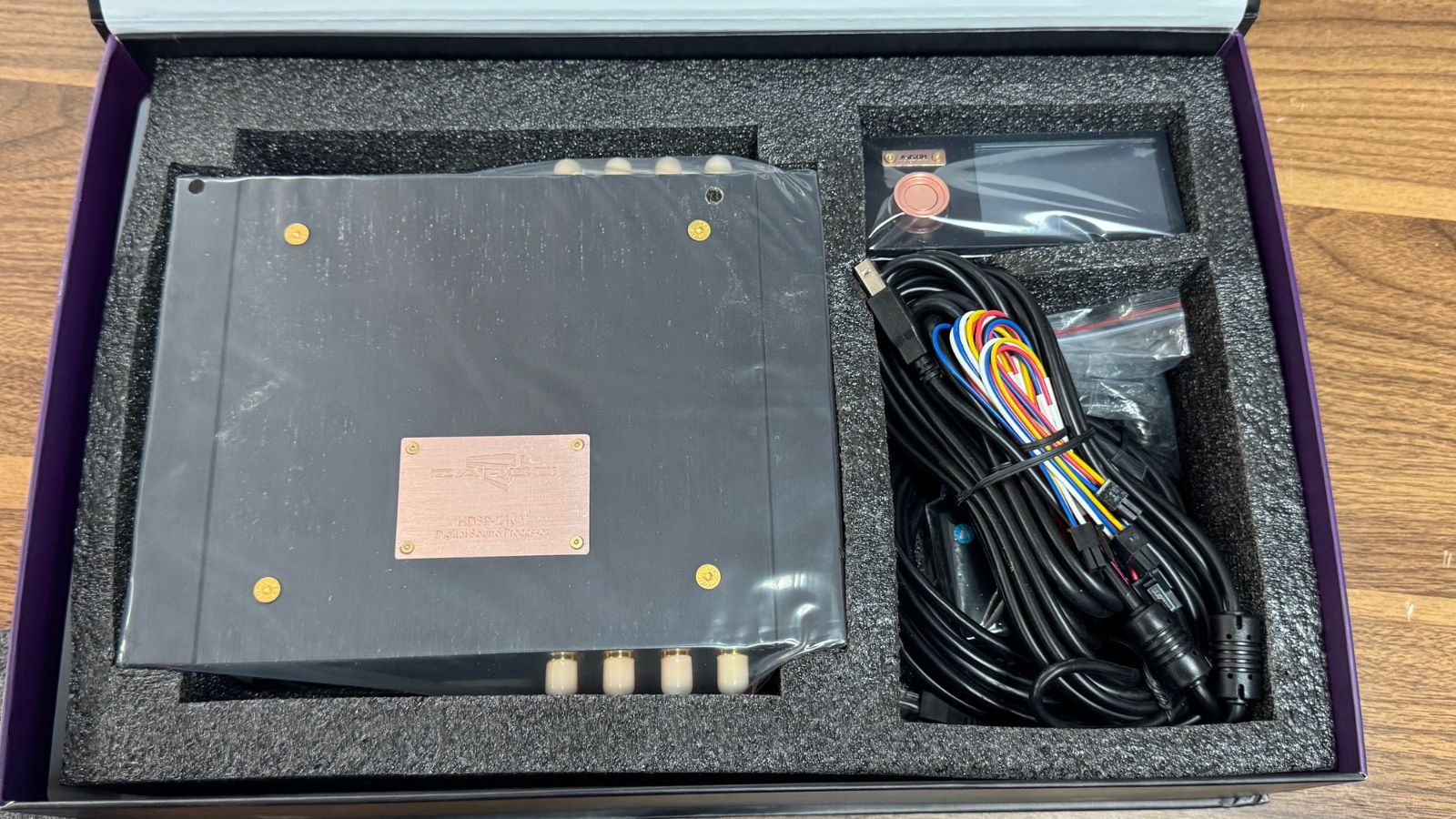

- All original accessories, dashboard, and documentation included
- Fully tested and verified across all 8 channels
- Wi-Fi module included and tested for wireless control
- Measured performance confirms -140dB floor noise spec
- Converter performance verified to manufacturer specifications
- HD player tested with high-resolution audio files
- Exceptional value compared to new retail pricing
- Backed by Audio Intensity's quality guarantee
- Perfect opportunity to experience Zapco's 50-year legacy
This is an extraordinary opportunity to own a Zapco HDSP-Z16 V AD-8A—a genuine masterpiece representing five decades of audio engineering excellence—at demo pricing. Experience professional-grade digital signal processing with the extraordinary -140dB noise floor, modular upgradability, and integrated HD playback that define reference-quality car audio systems. Transform your vehicle into a concert hall with Zapco's legendary sonic purity.
Ideal Applications
Professional installations where sonic excellence is paramount
🎼 Competition Sound Quality Systems
The HDSP-Z16 V AD-8A's extraordinary -140dB floor noise and 15-pole parametric EQ per channel provide the tools SQ competitors need to achieve reference-grade performance. Judges evaluate noise floor, tonal accuracy, soundstage precision, and dynamic range—attributes this processor delivers consistently. The modular architecture and premium converters ensure your system competes at the highest levels where fractions of a dB separate winners from also-rans.
🎵 Active Crossover Installations
Eight independent output channels with professional crossover filters (Linkwitz-Riley, Butterworth, Bessel, Chebyshev) enable sophisticated active crossover systems. Dedicate channels to tweeters, midrange, midbass, and subwoofers with surgical crossover precision. The 1Hz/1° phase control ensures perfect driver integration. Active crossover systems bypass passive component losses and allow optimal driver utilization—the HDSP-Z16 V provides the processing power to realize these benefits.
🔊 High-Resolution Audio Enthusiasts
Audiophiles who've invested in hi-res audio libraries deserve playback that honors their investment. The integrated HD player handles 192kHz/24-bit files without downsampling, preserving every detail from studio masters. Store thousands of lossless albums on USB storage. The premium AKM converters and extraordinary noise floor ensure that high-resolution audio's advantages—extended dynamic range, spatial information, micro-detail—remain audible rather than lost to processor limitations.
⚡ OEM Integration Projects
High-level inputs (4-20V) enable direct connection to factory amplifier outputs, perfect for maintaining factory source units while adding aftermarket processing and amplification. OEM SUM mode simplifies multi-channel factory signal summing. The sophisticated DSP corrects factory system deficiencies—EQ compensation for poor speaker placement, time alignment for off-axis listening positions, crossover optimization for upgraded drivers. Transform factory systems into audiophile installations while preserving factory integration.
Experience Five Decades of Audio Excellence
The Zapco HDSP-Z16 V AD-8A represents the pinnacle of digital signal processing technology, combining Zapco's 50-year heritage of sonic excellence with cutting-edge dual-core processing, premium AKM converters, and modular upgradability. With an extraordinary -140dB noise floor, 192kHz sampling, and integrated HD player, this processor delivers reference-quality performance that separates true audiophile systems from mere equipment. This previous display model offers the rare opportunity to experience Zapco's legendary engineering at exceptional value.
