OSD ACE870 8" Angled Trimless LCR In-Ceiling Speaker (Single)

🎯 The Angled In-Ceiling Advantage

Why Angled Design Matters: Standard in-ceiling speakers mount flush to the ceiling firing straight downward—problematic for home theater front-stage applications where you want sound directed toward the listening position, not the floor. Traditional installation guidance suggests placing standard in-ceiling speakers at least 3 feet from walls to avoid reflective sound coloration and provide adequate aim toward seating areas. However, this creates two problems: (1) speakers positioned 3+ feet from the front wall can't properly align with the TV/screen location, destroying the illusion that dialogue comes from on-screen actors, and (2) speakers firing downward from ceiling height create sound appearing to originate "above" the action rather than from the screen plane.

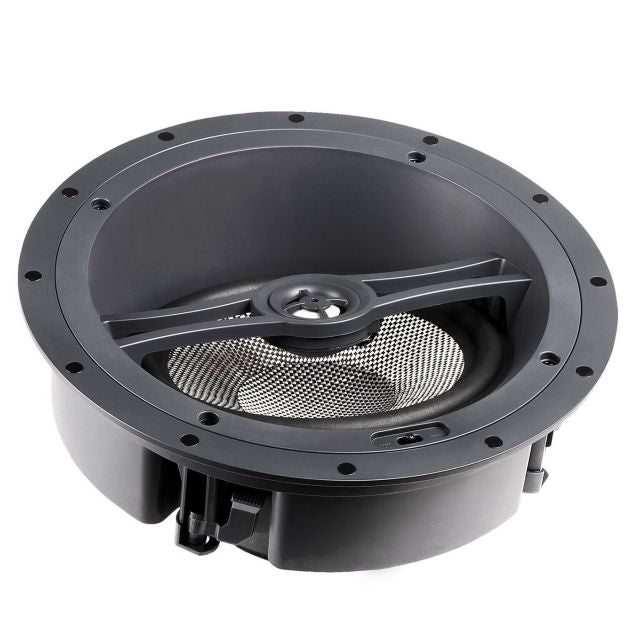

The ACE870's 15° Solution: This speaker's 15-degree angled woofer plus pivoting tweeter (adding 5° adjustment for 20° total aim capability) solves both problems elegantly. The angled design allows placement much closer to the front wall—within 12 inches rather than requiring 3+ feet of clearance. Install three ACE870 speakers in the ceiling just above and slightly in front of your TV/screen: left channel speaker above left edge, center channel above screen center, right channel above right edge. The 15° angle aims drivers toward the primary seating position rather than the floor, creating sound appearing to emanate from the screen plane. This placement creates realistic sound imaging where dialogue tracks on-screen actors, left/right channels provide proper stereo width, and the overall front stage integrates cohesively—exactly what on-wall or in-wall speakers would provide, but achieved entirely from ceiling installation.

Flexibility Beyond Front Stage: While originally conceived as an LCR (Left-Center-Right) front-stage solution, angled in-ceiling speakers offer placement flexibility for any position requiring aim capability: rear surround speakers, center surround speakers, and Dolby Atmos/DTS:X height channels. The key advantage is tweeter aim—the ACE870's pivoting 1" titanium tweeter rotates to direct high-frequency information precisely toward the listening position. High frequencies are highly directional (shorter wavelengths beam toward where the tweeter aims), so tweeter positioning dramatically affects perceived tonal balance and imaging. The ACE870's pivot mechanism ensures every listener experiences balanced frequency response regardless of where you install the speaker in the ceiling.

🏗️ The Architectural Audio Challenge

Different Requirements Than Traditional Speakers: Architectural speakers face unique engineering challenges compared to conventional bookshelf or tower speakers. Aesthetic integration demands speakers virtually disappear—no bulky cabinets, minimal visual intrusion, ability to paint/customize for room décor. Installation constraints require speakers fit standard ceiling/wall construction (2×4 or 2×6 framing, 16" or 24" stud spacing) with minimal mounting depth. Acoustic compensation means speakers must perform without dedicated enclosures—ceiling/wall cavities become the "cabinet," requiring suspension designs that don't rely on sealed back-chambers. Long-term reliability is critical because accessing ceiling speakers for service requires drywall work—architectural speakers must function flawlessly for decades without maintenance.

OSD's Specialized Approach: Rather than adapting traditional speaker designs for architectural installation (the approach of general home audio brands offering "also in-wall versions"), OSD engineers architectural speakers from first principles. The ACE870 exemplifies this: the 15° angled baffle addresses ceiling installation's geometric challenges, the trimless design eliminates visible trim rings that scream "speaker here," the carbon fiber woofer operates without rear-chamber support, the butyl rubber surround provides 25-year lifespan in ceiling environments, and the dog-ear mounting brackets enable one-person installation in standard ceiling construction. Every design decision reflects deep understanding of installation realities—OSD doesn't just make speakers that can install in ceilings, they make speakers optimized for ceiling installation.

Product Line Breadth: OSD's catalog spans the full architectural audio spectrum: in-ceiling speakers (standard, angled, trimless, Atmos-optimized), in-wall speakers (standard, LCR, subwoofers), outdoor speakers (patio, rock, landscape, all-weather), commercial 70V systems (restaurants, retail, offices, schools), and installation accessories (volume controls, impedance matching, wire, mounts). This comprehensive approach means installers can source complete systems from OSD—maintaining consistent sonic character, aesthetic integration, and warranty coverage across all zones rather than mixing brands with different sound signatures and quality levels.

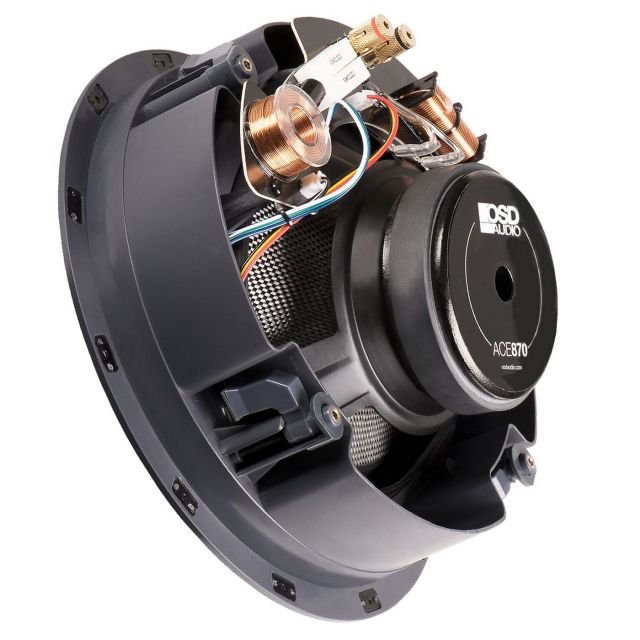

Material Selection: The ACE870's 8-inch woofer employs carbon fiber composite cone construction—woven carbon fiber material formed into cone shape and impregnated with resin matrix. Carbon fiber provides exceptional rigidity-to-weight ratio (the same material used in aerospace, F1 racing, high-end bicycles) enabling the cone to move as a coherent piston across the full frequency range without flexing that would cause frequency response irregularities or distortion. The composite formulation includes additional materials (likely fiberglass or other reinforcement) optimizing mechanical properties specifically for loudspeaker applications—pure carbon fiber can be overly rigid causing ringing artifacts, so the composite balances rigidity with controlled damping.

Acoustic Benefits: Carbon fiber's light weight means low moving mass—improving transient response (how quickly the cone responds to signal changes), extending high-frequency response (lighter cones move faster), and increasing efficiency (less mass requires less force for equivalent movement). Simultaneously, carbon fiber's rigidity prevents cone breakup—the phenomenon where different cone areas vibrate independently at high frequencies creating response peaks/dips and intermodulation distortion. The ACE870's carbon composite maintains piston behavior up to approximately 3,000 Hz (the crossover point to the tweeter), ensuring smooth midrange reproduction critical for dialogue intelligibility and instrument clarity.

Bass Extension: Despite ceiling installation without traditional sealed enclosures, the ACE870 achieves 35 Hz low-frequency response—remarkable for an 8-inch driver in free-air mounting. This results from: large 8-inch cone area providing substantial air-moving capability, heavy-duty magnet structure generating strong motor force, butyl rubber surround enabling long excursion without distortion, and suspension compliance optimized for infinite-baffle operation (ceiling cavity as enclosure). The 35 Hz extension means the ACE870 reproduces bass fundamentals in most music and movie content—you'll want subwoofer addition for deep bass (below 35 Hz) and high-SPL bass-heavy content, but the ACE870 provides satisfying bass foundation for LCR channels.

Titanium Material Properties: The ACE870's tweeter employs 1-inch titanium dome—a metal dome tweeter favored for extended high-frequency response, excellent transient reproduction, and long-term durability. Titanium's high stiffness-to-weight ratio enables the dome to remain pistonic (moving as single coherent unit) to very high frequencies—well beyond 20 kHz human hearing range—ensuring no breakup modes coloring the audible spectrum. The material's damping characteristics control resonances that would create harshness, while titanium's strength withstands decades of excursion cycling in ceiling installations where replacement would require ceiling disassembly.

Pivoting Mechanism Advantage: Unlike fixed tweeters aiming wherever the baffle points, the ACE870's tweeter independently rotates approximately 20-30° in any direction. After ceiling installation, you reach up through the grille opening and manually rotate the tweeter toward the primary listening position. This aim capability is transformative for ceiling installations: high frequencies above ~5,000 Hz are highly directional (short wavelengths beam wherever the dome aims), so off-axis listeners experience rolled-off treble creating dull, muffled sound. The pivoting tweeter ensures everyone in the seating area experiences balanced frequency response—aim toward the center of your seating arrangement for optimal coverage. Combined with the 15° angled woofer, the tweeter pivot provides comprehensive aim control impossible with standard in-ceiling speakers.

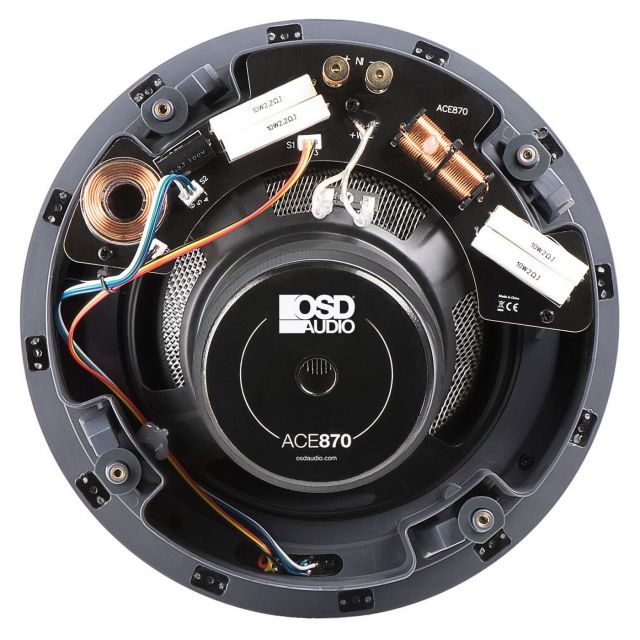

Crossover Integration: The tweeter operates above approximately 3,000 Hz (exact crossover point depends on the included passive crossover network design). This relatively low crossover point (many 8" speakers cross to tweeter around 2,000-2,500 Hz) reduces tweeter power requirements while allowing the carbon fiber woofer to handle midrange frequencies where its rigidity advantages are most audible. The 3,000 Hz transition is high enough to avoid localization issues (listeners perceiving sound coming from individual drivers rather than a coherent point source) while low enough to protect the tweeter from excessive excursion demands during loud passages.

🎯 Building a Front Stage with Three ACE870 Speakers

The LCR Concept: Home theater audio separates the front soundstage into three discrete channels: Left, Center, and Right. The left channel reproduces music, effects, and dialogue positioned on the left side of the screen. The center channel anchors dialogue and on-screen action—approximately 60% of a movie soundtrack comes through the center speaker, making it arguably the most important channel. The right channel mirrors the left, providing right-side localization and stereo width. Together, these three speakers create a cohesive front stage where sound pans smoothly left-to-right tracking on-screen action, dialogue appears to emanate from actors' mouths, and music/effects provide appropriate spatial context.

ACE870 LCR Placement: For optimal results, install three ACE870 speakers in the ceiling directly above and slightly forward of your TV/screen position—maintaining approximately 6-12 inches from the front wall:

• Left Channel: Position above the left edge of your TV/screen, maintaining symmetry with right channel
• Center Channel: Position directly above screen center (not above the listeners—above the screen)
• Right Channel: Position above the right edge of your TV/screen, mirroring left channel placement
• Spacing: Match speaker spacing to your screen width—wider screens use wider speaker spacing maintaining sonic proportions
• Angle: The 15° angled woofers automatically aim toward seating area; rotate tweeters pointing toward primary listening position

Why This Works: Ceiling installation just above the screen creates the illusion that sound emanates from the screen plane itself—dialogue tracks actors' mouths, explosions appear to originate from on-screen locations, music seems to flow from the picture. The close-to-wall placement (enabled by the 15° angle) prevents the "sound coming from above the action" syndrome common with standard in-ceiling speakers positioned several feet from walls. The angled drivers and pivoting tweeters compensate for ceiling height, directing sound toward ear-level listening positions 8-12 feet away. The result: front stage performance rivaling on-wall or in-wall speakers but achieved entirely from ceiling locations—perfect for rooms where wall mounting isn't feasible (windows, artwork, architectural features, shared walls with neighbors).

Ceiling Construction Verification: Before purchasing ACE870 speakers, verify your ceiling construction accommodates installation. Requirements: (1) Adequate mounting depth—5.37" minimum from ceiling drywall to obstruction above (insulation OK, but not joists, ducting, wiring), (2) Access to ceiling cavity for wire running (attic access or willingness to fish wire through walls), (3) Standard drywall construction (not plaster/lath, suspended tile, or solid concrete), (4) Joist spacing providing clearance for 9.87" cutout diameter (typically 16" or 24" joist centers provide adequate space between joists).

Location Planning: Measure and mark speaker positions before cutting ceiling openings—mistakes are permanent. For LCR front stage: measure TV/screen width and height, mark center point above screen, mark left/right positions flanking screen width maintaining symmetry, ensure 6-12" distance from front wall, verify no ceiling obstructions (light fixtures, vents, beams) conflict. Use stud finder or probe small holes to locate joists—speaker cutouts must fall between joists, not through joists. Mark locations with painter's tape crosses before committing to cutout.

Wire Planning: Plan wire routes from AV receiver/amplifier location to each speaker position. Calculate required wire length for each run (add 15-20% extra for routing flexibility and connection termination). Purchase appropriate quantity of CL3/FT4 UL-rated 16 AWG or 14 AWG speaker wire (see gauge recommendations above). Label both ends of each wire run identifying destination channel (Left Front, Center, Right Front, etc.) preventing connection errors. Run wires before cutting ceiling openings—fixing wire routing mistakes is easier before drywall surgery.

AV Receiver Setup: After physical installation, configure your AV receiver for optimal performance. Speaker Configuration: Set all ACE870 channels to "Small" in receiver setup menu—this directs bass below 80 Hz to subwoofer rather than attempting deep bass from ceiling speakers. Crossover Frequency: Set 80 Hz crossover for all channels (industry standard balancing subwoofer/main speaker responsibilities). Channel Levels: Use receiver's auto-calibration system (Audyssey, Yamaha YPAO, Anthem ARC, etc.) or manual test tones to balance volume across channels—all speakers should produce equal volume at listening position. Distance/Delay: Configure speaker distances (physical measurements from listening position to each speaker) enabling receiver to synchronize arrival times.

Contour Switch Adjustment: The ACE870 features front-mounted contour switches adjusting bass/treble response. Access switches through grille opening (magnets detach), locate switches near woofer basket. Default position: Start with switches in neutral/flat position. Adjust if needed: If speakers sound bright/harsh, reduce treble. If sound is dull/muffled, increase treble. If bass sounds boomy, reduce bass. If bass sounds thin, increase bass. Make small adjustments, listen critically, refine. Room acoustics vary dramatically—contour switches help optimize ACE870 response to your specific environment without external equalization.

Fine-Tuning: After initial setup, watch familiar movies, play known music, and assess system performance. Common adjustments: tweeter aim refinement (small position changes create noticeable imaging improvements), channel level trimming (±1-2 dB adjustments balancing left/center/right), subwoofer level/phase adjustment (blend between ACE870 and subwoofer), contour switch tweaking (room acoustic compensation). Take time for critical listening across diverse content—proper setup transforms good speakers into excellent system.

Q: How many ACE870 speakers do I need for home theater?

A: Minimum three ACE870 speakers for LCR (Left-Center-Right) front stage—the foundation of home theater audio. This 3.0 configuration provides proper soundstage for movies/TV, functioning as wide stereo for music. For complete 5.1 surround, add two additional ceiling speakers for rear surrounds (could be ACE870 or different models) plus powered subwoofer. For Dolby Atmos, add height channels per Dolby guidelines: 5.1.2 (2 height), 5.1.4 (4 height), 7.1.4 configurations. Purchase ACE870 quantity matching your planned channel count—each speaker sold individually enabling flexible system building.

Q: Can I use ACE870 for surround channels, not just front stage?

A: Absolutely—while designed as LCR solution, the ACE870's angled design and pivoting tweeter provide flexibility for any channel requiring aim control. Many installers use ACE870 throughout entire ceiling-mounted system: three for LCR front, two for rear surrounds, additional units for Atmos height channels. The advantage: consistent timbre across all channels (seamless panning, uniform tonal balance) and aim capability everywhere. Alternative: use ACE870 for demanding LCR positions, specify less expensive OSD ceiling speakers for surround/height channels where aim precision matters less—balancing performance and budget.

Q: What's the difference between angled and standard in-ceiling speakers?

A: Standard in-ceiling speakers mount flush firing straight down—requiring 3+ feet from walls to avoid reflective sound, positioning speakers above listening area rather than above screen. The ACE870's 15° angled woofer plus pivoting tweeter enables close-to-wall placement (6-12 inches) while directing sound toward seating, creates sound appearing to originate from screen plane, and provides 20° total aim capability. Angled speakers solve the fundamental ceiling installation challenge: placing speakers where you need them (above TV/screen) while aiming sound where you want it (toward listeners). Standard ceiling speakers excel for ambient music distribution; angled speakers excel for home theater where localization and soundstage accuracy matter.

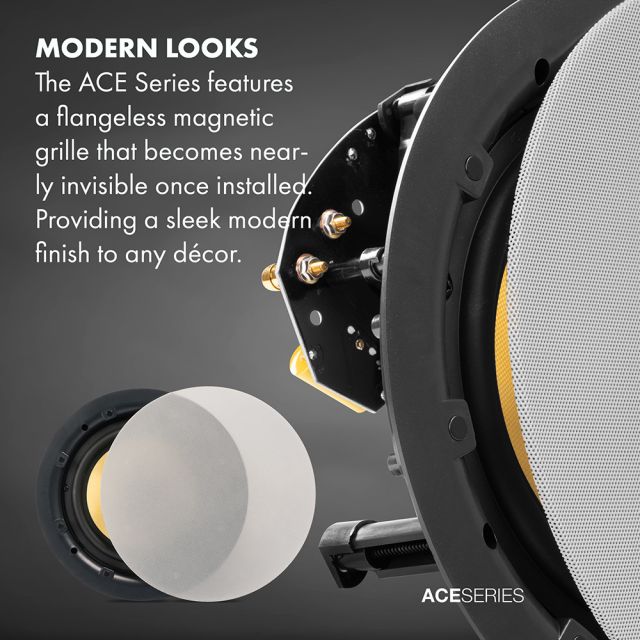

Q: What does "trimless" mean and why does it matter?

A: Traditional in-ceiling speakers feature visible trim rings—typically 3/4" white frames surrounding grilles creating 11-12" diameter visible circles. Trimless design eliminates these rings through micro-flange construction: grille edge extends just 1/8" beyond cutout creating virtually flush appearance. Grilles attach via powerful magnets (no visible screws). Visual impact: speakers nearly disappear from view—you notice white ceiling, not obvious speaker installations. Aesthetic preference: some prefer defined trim rings providing architectural detail, others prefer trimless minimalism. Trimless excels in modern contemporary spaces, media rooms, commercial installations where visual discretion matters. Bonus: grilles are spray-paintable matching any ceiling color for ultimate camouflage.

Q: Do I need back boxes for in-ceiling speaker installation?

A: Back boxes (enclosed chambers mounted behind speakers in ceiling cavity) are optional but beneficial. Without back boxes: ACE870 operates in infinite-baffle mode using ceiling cavity as "enclosure"—works adequately providing specified performance. With back boxes: Enclosed volume (approximately double speaker's shipping box size, roughly 1-1.5 cubic feet for 8" speaker) provides: more controlled bass response (less interaction with ceiling cavity resonances), sound isolation between rooms (prevents bass transmission to room above), protection from insulation contact (fiberglass insulation touching speaker can dampen performance), defined acoustic loading (consistent performance regardless of ceiling cavity variations). Build back boxes if you have attic access, construction skills, and priority for ultimate performance. Skip if installation complexity or ceiling access limits make impractical—ACE870 performs well either way.

Q: What amplifier power do I need for ACE870 speakers?

A: The ACE870's 88 dB sensitivity and 175W power handling work well with AV receivers outputting 75-125W per channel—the typical power range for modern 5.1, 7.1, or Atmos receivers. Room size correlation: Small rooms (under 200 sq ft) = 75W adequate, medium rooms (200-400 sq ft) = 100W recommended, large rooms (400+ sq ft) = 125W+ optimal. Listening level consideration: Moderate levels = lower power, reference movie levels = higher power. Most quality AV receivers from Denon, Marantz, Yamaha, Onkyo, Sony (mid-tier and up) provide adequate power. Avoid ultra-budget receivers claiming absurd power specs (e.g., "1000W!" from tiny amplifier)—prioritize honest power ratings from reputable brands over inflated marketing numbers.

Q: Can I install ACE870 speakers myself or do I need professional help?

A: Installation difficulty depends on your comfort with: working on ladders, cutting precise drywall openings, running wire through walls/ceiling, accessing attic spaces, and irreversible modifications to your home. DIY feasible if: You have construction experience, own appropriate tools (stud finder, drywall saw, wire fishing tools), have ceiling access from above (attic) or willingness to patch small wire access holes, and accept responsibility for mistakes. Professional recommended if: You lack construction experience, have limited tool access, face complex installations (multiple stories, finished basements, limited ceiling access), or want warranty protection and insurance coverage for installation work. Professional installers cost $75-150 per speaker installed (varies by region, complexity)—often worthwhile for permanent ceiling modifications where mistakes are expensive to correct.

Q: Is the 10-year warranty transferable if I sell my home?

A: Warranty terms vary by manufacturer—contact OSD Audio directly to clarify transferability. Many architectural speaker warranties cover the original purchaser at the original installation location, but some manufacturers offer transferable warranties recognizing that ceiling speakers typically remain with property during home sales (removing ceiling speakers for relocation isn't practical). When selling homes with installed ACE870 systems, highlighting the 10-year warranty to potential buyers adds value—quality architectural audio is a home feature many buyers appreciate, especially in media rooms, home theaters, or whole-house audio installations.
