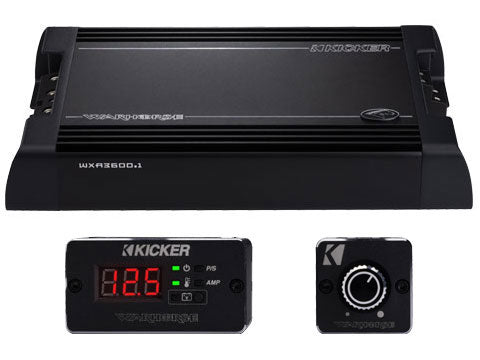

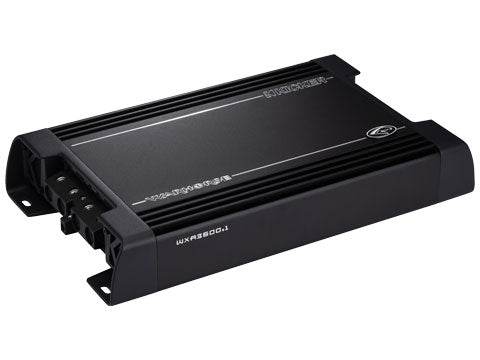

Kicker Warhorse WXA3600.1 Monoblock Subwoofer Amplifier

The Warhorse Legacy: Icon Status Reborn

The KICKER Warhorse name carries weight in car audio circles that transcends typical brand marketing—it represents genuine legend status earned through decades of dominating sound pressure level competitions and establishing performance benchmarks that competitors struggled to match. The original Warhorse amplifiers, introduced in the 2000s, became synonymous with extreme power output, bulletproof reliability under punishing competition conditions, and the distinctive KICKER engineering philosophy that prioritizes measurable performance over marketing hyperbole. When KICKER discontinued the Warhorse line to focus on other product categories, the used market for original Warhorse amplifiers remained robust—enthusiasts paid premium prices for decade-old units rather than settle for alternatives that couldn't match the Warhorse's combination of power, efficiency, and proven durability.

The 2024 return of the Warhorse lineup represents not nostalgic brand revival but comprehensive re-engineering for modern SPL competition requirements. The WXA3600.1 was designed entirely in-house by KICKER's Research and Development team—the same engineers responsible for the original Warhorse amplifiers plus a generation of talent that grew up competing with those legendary units. This institutional knowledge informs every aspect of the WXA3600.1's design: the full-bridge topology that maximizes efficiency at 1Ω loading, the dual 1/0 AWG power and ground terminals that eliminate connection resistance as a limiting factor, the quad 8 AWG remote terminals that enable sophisticated multi-amplifier installations, and the thermal management system that maintains full power output during extended competition runs that would thermally limit lesser amplifiers.

Understanding the WXA3600.1 requires context about what "ultra-high SPL applications" actually means and why this amplifier was specifically engineered for this demanding category. Sound Pressure Level (SPL) competition measures maximum loudness—typically at specific frequencies (bass notes around 30-60Hz) for specified durations (bursts of 1-30 seconds). Winning SPL numbers often exceed 160dB, approaching the threshold of physical pain and requiring amplifier power measured in thousands of watts driving subwoofers specifically designed for maximum output rather than sound quality. The WXA3600.1's 3600W RMS continuous output at 1Ω represents the power threshold where single-amplifier systems can achieve competitive SPL numbers with appropriate subwoofers and enclosures—eliminating the complexity and cost of dual-amplifier or strapped-amplifier configurations that were previously necessary for this performance level.

The "5000W Dynamic Power" specification deserves explanation because it represents a specific testing methodology that KICKER developed and publishes transparently (complete test procedures available at kicker.com/amp-power-testing). Dynamic power measures short-duration peak capability using 10% THD+N as the threshold—representing the amplifier's ability to handle transient musical peaks that exceed continuous power ratings. This 5000W dynamic specification indicates the WXA3600.1 can deliver nearly 40% more power than its 3600W RMS rating during brief peaks, providing headroom for musical dynamics and competition bursts without the distortion or voltage sag that occurs when amplifiers are driven beyond their capabilities. This dynamic headroom matters for both SPL competition (where peak output determines scores) and musical applications (where transient reproduction affects perceived impact and realism).

Power Architecture: Full-Bridge Design for Maximum 1Ω Efficiency

The WXA3600.1 employs full-bridge Class D topology optimized specifically for 1Ω operation—the impedance where SPL systems extract maximum power and where efficiency advantages directly translate to competitive performance. Understanding this architecture and its implications helps appreciate why the WXA3600.1 delivers its rated power more reliably than competitors claiming similar specifications.

The 3600W @ 1Ω specification represents genuine continuous power output measured using KICKER's transparent testing protocol with Audio Precision APx500 analyzer equipment—the industry-standard measurement platform used by serious amplifier manufacturers and independent testing laboratories. This isn't marketing power (inflated peak specifications), burp power (unsustainable output measured for fractions of seconds), or CEA-2006 power (which allows higher distortion thresholds). The <1% THD+N criterion means the amplifier produces 3600W continuously with total harmonic distortion plus noise remaining below 1%—a specification indicating clean power suitable for both SPL competition (where every watt matters) and daily driving (where audible distortion annoys users).

The power progression from 4Ω to 1Ω reveals the amplifier's full-bridge design optimization. An ideal amplifier doubles power output as impedance halves (reflecting Ohm's Law and constant voltage operation). The WXA3600.1 delivers 1400W @ 4Ω, 2500W @ 2Ω, and 3600W @ 1Ω—not perfect doubling, but close enough to indicate robust power supply design and output stage capability across the impedance range. Many amplifiers claiming similar specifications deliver rated power at 4Ω but cannot sustain advertised output at 1Ω due to insufficient power supply capacity, inadequate heatsinking, or output stage limitations. The WXA3600.1's 1Ω specification represents actual tested performance, not theoretical extrapolation.

The 5000W dynamic power specification indicates peak capability during short-duration bursts—critical for SPL competition where scores are determined by maximum output during 1-30 second test sequences. The 10% THD+N threshold for dynamic power testing allows higher distortion than continuous ratings, reflecting the reality that brief bursts of distortion during competition runs don't affect scoring (which measures only loudness) while providing valuable insight into amplifier headroom. The 5000W dynamic specification means the WXA3600.1 can deliver approximately 39% more power than its continuous rating during brief peaks—headroom that translates to 0.6-0.8dB additional maximum output, potentially the difference between winning and placing in close SPL competitions.

The full-bridge topology deserves explanation because it affects both efficiency and reliability at 1Ω loading. In full-bridge configuration, the amplifier uses four power transistors per output (two for positive excursion, two for negative excursion) operating in complementary pairs to produce output voltage across the load. This contrasts with half-bridge designs using two transistors per output. The full-bridge approach provides several advantages at low impedances: each transistor handles lower current (reducing stress and improving reliability), thermal dissipation distributes across more devices (improving thermal management), and efficiency remains high even at 1Ω where half-bridge designs struggle. For SPL competition applications involving sustained high-power operation at 1Ω, these advantages directly affect whether the amplifier maintains full output or thermally limits during critical runs.

Electrical System Integration: Dual 1/0 AWG and Quad Remote Terminals

The WXA3600.1's terminal configuration reflects understanding that 3600W continuous output demands electrical system design as sophisticated as the amplifier itself. The dual 1/0 AWG power and ground terminals, 4 AWG speaker terminals, and quad 8 AWG remote terminals enable installations that extract full amplifier capability without connection resistance limiting performance.

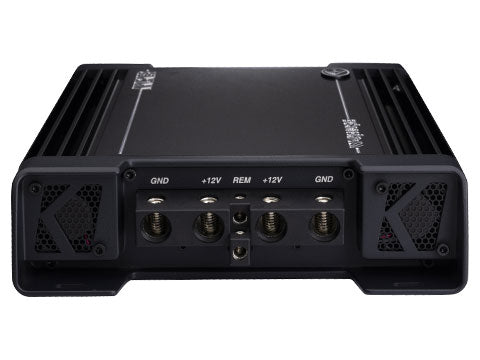

Dual 1/0 AWG Power and Ground Terminals

The dual 1/0 AWG power terminals enable parallel cable runs that dramatically reduce connection resistance compared to single-cable approaches. At 3600W output, the amplifier draws approximately 300A from the 12V system (accounting for typical Class D efficiency). Running this current through single 1/0 AWG cable creates voltage drop of approximately 0.3-0.5V over typical 10-15 foot runs—directly reducing available power output. Dual 1/0 AWG cables in parallel effectively create 2/0 AWG equivalent capacity, cutting voltage drop to 0.15-0.25V and maintaining higher voltage at amplifier terminals where it directly affects output capability.

The ground terminals receive equivalent attention—dual 1/0 AWG connections matching power cable gauge. This symmetry matters because many installations focus on power cable quality while neglecting ground connections, creating voltage drop in the ground path that affects performance identically to power cable drop. The WXA3600.1's dual ground terminals enable connections to multiple chassis ground points (distributing current across multiple paths) or dual cables to single high-quality ground point, ensuring the complete power delivery circuit maintains minimal resistance.

Quad 8 AWG Remote Terminals

The four 8 AWG remote terminals address multi-amplifier competition installations where the WXA3600.1 might operate alongside other amplifiers for dedicated subwoofer or full-system configurations. Conventional amplifiers provide single remote terminal, forcing daisy-chain connections when multiple amplifiers share turn-on signal. The quad terminals eliminate daisy-chaining: run single remote cable from source unit to first amplifier, then use additional terminals to run dedicated cables to subsequent amplifiers. This approach prevents voltage drop in remote circuit (which can cause unreliable turn-on), simplifies troubleshooting (each amplifier has direct connection to source), and maintains clean wiring appearance.

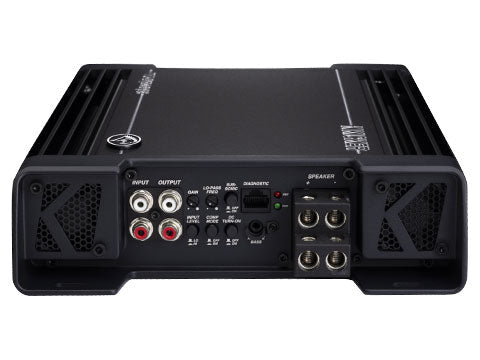

4 AWG Speaker Terminals

The speaker terminals accommodate 4 AWG cable—appropriate for 3600W output and typical 5-15 foot speaker wire runs to subwoofers. Many amplifiers in this power range provide only 8 AWG terminals, forcing installers to use adapters or multiple parallel runs to achieve adequate current capacity. The WXA3600.1's 4 AWG terminals accept appropriate cable directly, ensuring the speaker wire path maintains minimal resistance between amplifier and subwoofer voice coils. For competition installations using extremely short wire runs (amplifier mounted directly on subwoofer enclosure), even larger cable (2 AWG or 1/0 AWG) can connect via terminal adapters, eliminating speaker wire resistance entirely.

Battery and Charging System Requirements

Sustaining 300-320A amplifier current draw requires electrical systems far beyond factory specifications. Most factory alternators produce 120-180A—inadequate for the WXA3600.1 alone, let alone total vehicle electrical load. Competition installations typically employ: high-output alternators rated 300-350A minimum (brands like DC Power Engineering, Nations, or Mechman), supplementary battery banks totaling 200-400Ah capacity (AGM batteries like XS Power D3400 or lithium batteries like XS Power Titan8), and comprehensive wiring upgrades including "Big 3" (0-gauge or larger for alternator-to-battery positive, battery-to-chassis ground, engine-to-chassis ground to minimize voltage drop in charging system).

For installations prioritizing reliability over absolute maximum output, running the WXA3600.1 at 2Ω (2500W) instead of 1Ω (3600W) reduces current draw to approximately 210-230A—more achievable with single high-output alternator and moderate battery supplementation. This configuration still provides substantial power (2500W drives competition subwoofers to competitive output levels) while reducing electrical system demands and associated costs.

Crossover and Signal Processing: Competition-Focused Design

The WXA3600.1 provides comprehensive bass frequency management optimized for SPL competition requirements, with crossover slopes and adjustment ranges reflecting KICKER's competition experience and understanding of how extreme-power subwoofer systems integrate with overall vehicle audio systems.

Variable Low-Pass Crossover: 50-200Hz, 24dB/Octave

The variable low-pass filter operates across a wide frequency range (50-200Hz) with steep 24dB per octave slope—twice as aggressive as 12dB/octave crossovers found on many amplifiers. This steep filtering provides two critical advantages for high-power subwoofer systems. First, it prevents midrange frequencies from reaching subwoofers, where they cause increased distortion, reduced efficiency, and potential mechanical damage (subwoofers optimized for deep bass lack the mechanical compliance to reproduce midrange content cleanly). Second, it ensures clean integration with main speakers handling midrange and treble, preventing overlap that causes muddiness and frequency response irregularities.

The 50-200Hz adjustment range accommodates different system architectures. For SPL competition systems using subwoofers exclusively (no full-range speakers), higher crossover settings (120-160Hz) allow subwoofers to reproduce more frequency content, increasing perceived loudness since human hearing is more sensitive to 80-120Hz than deeper bass. For daily driver installations with full-range speakers, lower crossover settings (60-80Hz) prevent overlap with main speakers while allowing subwoofers to focus on deep bass reproduction where they excel. The 24dB/octave slope maintains clean separation regardless of crossover point, preventing the midrange leakage that plagued older amplifiers with shallower slopes.

Variable Subsonic Filter: Infrasonic Protection

The adjustable subsonic filter (high-pass filter on subwoofer channel) removes content below the subwoofer system's useful operating range, preventing wasted amplifier power and dangerous driver excursion on frequencies the subwoofer/enclosure combination cannot reproduce effectively. For ported enclosures tuned to specific frequencies (common in SPL competition, where port tuning targets the specific test frequencies), the subsonic filter should be set 5-10Hz below tuning frequency. A 40Hz tuned competition enclosure should use 35Hz subsonic setting, a 30Hz tuned enclosure should use 25Hz subsonic.

For sealed enclosures (less common in SPL competition but used in some daily driver applications), subsonic filtering at 25-30Hz protects drivers from infrasonic content while preserving the deepest bass the system can reproduce. The WXA3600.1's subsonic filter prevents the over-excursion damage that occurs when subwoofers receive massive power (3600W) at frequencies below their mechanical capabilities—particularly critical for competition systems pushing drivers to their absolute limits.

Bass EQ and Level Controls

The bass EQ control provides 0-12dB boost centered around typical competition frequencies (30-60Hz region), enabling additional output during SPL runs without requiring external processing. The variable gain adjustment (input sensitivity control) allows matching amplifier sensitivity to source unit output voltage, ensuring full power capability without input clipping. The remote bass control compatibility enables subwoofer level adjustment from driver's seat—useful for daily drivers where bass level preferences vary by music genre or passenger loading, though less relevant for dedicated competition vehicles where maximum output always takes priority.

Signal Input Flexibility: Low-Level and High-Level

The WXA3600.1 accepts both low-level RCA inputs (125mV-5V) and high-level speaker inputs (1V-40V), accommodating both aftermarket source units with RCA outputs and factory integration installations requiring speaker-level connections. The 40V high-level capability specifically addresses premium factory audio systems that output higher voltages than conventional aftermarket amplifiers can handle, enabling subwoofer system additions to vehicles with factory source units that must be retained. The differential balanced inputs reject common-mode noise in high-level connections, maintaining signal integrity despite long wire runs from factory amplifier locations to aftermarket amplifier mounting points.

Thermal Management and Protection Systems

The WXA3600.1's thermal management system reflects KICKER's competition experience—understanding that 3600W continuous output generates substantial heat (approximately 500-650W thermal dissipation at typical Class D efficiency) that must be managed effectively to maintain performance during extended competition runs or sustained high-power operation.

Active Thermal Management

The amplifier employs active thermal monitoring that continuously measures internal temperature and adjusts operation to prevent damage while maintaining maximum possible output. Rather than shutting down when temperature approaches limits (causing complete silence and disqualification in competition), the WXA3600.1 gradually reduces power output to maintain safe operating temperature. This approach keeps the amplifier running—critical for competition where even reduced output is preferable to complete shutdown—while protecting components from thermal damage.

For installations prioritizing reliability, several thermal management best practices apply: mount the amplifier in locations with adequate airflow (avoid enclosed compartments with no ventilation), ensure mounting surface provides good thermal contact with amplifier chassis (facilitating heat transfer to vehicle structure), orient the amplifier for optimal convection cooling (heatsink fins vertical allowing natural air circulation), and consider supplementary cooling (12V fans providing forced air across heatsink) for sustained high-power applications. Competition installations often employ sophisticated cooling systems with multiple fans, ducting, and even liquid cooling for extreme applications.

Comprehensive Protection Circuits

Beyond thermal protection, the WXA3600.1 includes: short circuit protection (detecting speaker wire shorts and shutting down affected output to prevent damage), DC offset protection (preventing DC voltage on speaker terminals that damages subwoofer voice coils), overload protection (monitoring output current and reducing drive when exceeding safe limits), and low-voltage protection (shutting down if supply voltage drops too low, preventing operation outside safe parameters). These protections work transparently during normal operation but prevent the amplifier damage that would otherwise occur from foreseeable problems—particularly valuable for competition environments where electrical systems may experience voltage fluctuations or where wiring problems might go unnoticed until causing equipment failure.

Start/Stop Compatibility

The 6.5V minimum operating voltage enables reliable operation in modern vehicles with start/stop systems (standard equipment since approximately 2015). These systems automatically shut down engines during traffic stops, causing battery voltage to drop to 7-9V during engine restart as starter motor draws 250-400A. Conventional amplifiers specify 10-11V minimum, causing protection shutdown during restart and audible interruption. The WXA3600.1 continues operating at 6.5V (producing reduced power proportional to lower voltage, but avoiding shutdown), then transparently returns to full output as voltage recovers—preventing the annoying pops and silence that suggest equipment malfunction.

Comparison with Competition-Grade Monoblock Alternatives

The comparison reveals the WXA3600.1's competitive positioning: it delivers more power at 1Ω (3600W versus 3000W for Sundown and Taramps) while providing the dual power terminals and transparent testing methodology that distinguish premium amplifiers from budget alternatives. The Rockford Fosgate T3000-1bdCP, while an excellent amplifier with premium build quality, doesn't rate 1Ω operation and costs $100-200 more than the WXA3600.1 while delivering less power at the impedances where SPL systems extract maximum output. The Rockford makes sense for 2Ω installations prioritizing brand prestige and warranty support, but for 1Ω SPL competition—the WXA3600.1's target application—the KICKER provides superior specifications.

Sundown Audio's SAZ-3000D offers proven competition performance at lower cost ($799-899 versus $1,099-1,199), making it compelling for budget-conscious competitors. However, the 600W power difference at 1Ω (3600W versus 3000W) translates to approximately 0.8dB additional maximum output—potentially the difference between winning and placing in close SPL competitions. For competitors where every tenth of a decibel matters, the WXA3600.1's additional output justifies its premium over the Sundown. For enthusiasts building powerful daily driver systems rather than chasing SPL records, the Sundown provides excellent value.

Taramps MD 3000.1 represents maximum power per dollar from Brazilian manufacturers specializing in SPL applications. At $599-699, it costs nearly half the WXA3600.1 while claiming comparable power. However, Taramps specifications use different testing standards (allowing higher distortion thresholds) and single power terminals that create connection resistance limiting real-world output. The WXA3600.1's Audio Precision verified testing, dual power terminals, and KICKER quality control justify its premium for applications where reliability and verified performance matter more than lowest possible cost.

The WXA3600.1's high-level input capability distinguishes it from all compared alternatives, enabling factory integration installations where competitors require external line output converters. For enthusiasts adding serious bass to vehicles with factory source units (particularly premium vehicles with sophisticated factory audio), this integrated capability simplifies installation while reducing component count and potential failure points.

Competition Applications and SPL System Design

Optimizing the WXA3600.1 for SPL competition requires understanding subwoofer selection, enclosure design, electrical system requirements, and installation strategies that maximize output while maintaining reliability under punishing competition conditions.

Subwoofer Selection for 3600W Output

The 3600W output suits competition subwoofers with 3000-4500W RMS power handling. This specification range includes purpose-built SPL drivers from manufacturers like Digital Designs (9900 series), Sundown Audio (X/Z series), DC Audio (Level 6 series), American Bass (XD/Hawk series), and similar competition-focused products. These subwoofers feature: massive voice coils (4-inch to 5-inch diameter) distributing power across large surface area, high-temperature adhesives and former materials surviving sustained high-power operation, mechanical designs optimized for maximum excursion rather than sound quality, and sensitivity specifications (85-90dB typical) providing maximum output from given amplifier power.

For maximum SPL output, dual subwoofer configurations work best: two 12-inch, 15-inch, or 18-inch subwoofers with dual 2Ω voice coils each, wired to present 1Ω total load to the amplifier. Dual subwoofers provide 3dB more output than single subwoofers (assuming equivalent total power), and the larger cone area improves efficiency at competition frequencies (30-60Hz). The voice coil wiring matters: each subwoofer's voice coils wire in series (yielding 4Ω per subwoofer), then the two subwoofers parallel together (yielding 1Ω total), maximizing power extraction while distributing 1800W per subwoofer (within individual power handling specifications).

Enclosure Design for SPL Competition

SPL competition enclosures differ dramatically from daily driver designs, prioritizing maximum output at specific test frequencies rather than sound quality or broad frequency response. Typical SPL enclosures feature: ported designs tuned to competition test frequencies (30-40Hz for "low bass" classes, 40-63Hz for "mid bass" classes), large internal volumes (5-10+ cubic feet per subwoofer), massive port area (preventing port velocity limiting that reduces output), and construction using 3/4-inch to 1-inch thick MDF with extensive bracing (preventing panel flex that wastes energy). These enclosures occupy substantial space—often entire trunk or rear cargo areas—reflecting the reality that maximum SPL output requires large enclosure volumes and port tuning that wouldn't be practical for daily driver applications.

The enclosure's port tuning dramatically affects output at specific frequencies. Tuning to 35Hz maximizes output in the 30-40Hz range (typical "low bass" competition frequency), tuning to 50Hz maximizes output at 45-55Hz (typical "mid bass" competition frequency). The subsonic filter must set appropriately: 5-10Hz below port tuning to protect subwoofers from over-excursion below tuning while allowing full output within the designed range.

Electrical System Design for Competition

Supporting 3600W continuous output demands electrical systems far exceeding factory specifications. Competition-grade electrical systems typically include: dual high-output alternators (each rated 300-400A, total 600-800A capacity), massive battery banks (300-600Ah total capacity using AGM or lithium batteries), 0-gauge or larger main power cables (running from alternators through distribution blocks to amplifier), dual runs of 1/0 AWG from distribution to amplifier (utilizing the dual power terminals), comprehensive voltage monitoring (ensuring voltage remains above 12.5V under load), and often capacitor banks (30-50 Farads) providing instantaneous current during brief SPL bursts.

For daily driver installations using the WXA3600.1, running at 2Ω (2500W) instead of 1Ω (3600W) reduces electrical system demands substantially while still providing serious bass capability. A single 300A alternator with 200Ah supplementary battery capacity can support 2500W operation reliably, versus the dual alternators and massive battery banks required for sustained 3600W output.

Daily Driver Applications: Extreme Bass Without Competition Focus

While engineered for SPL competition, the WXA3600.1 serves daily driver applications where users demand extreme bass performance without the single-minded focus on maximum SPL numbers. Understanding how to optimize the amplifier for daily use versus competition helps balance performance with practicality.

Power Level Selection for Daily Driving

For daily drivers, running the WXA3600.1 at 2Ω (2500W) provides several advantages over full 1Ω operation: reduced electrical system demands (alternator and battery requirements decrease substantially), lower thermal stress (amplifier runs cooler, improving longevity), and still-substantial output capability (2500W drives quality subwoofers to output levels exceeding what most users tolerate for extended periods). This configuration allows using single high-output alternator (250-300A) with moderate battery supplementation (100-150Ah AGM batteries), versus the dual alternators and massive battery banks required for sustained 3600W operation.

Subwoofer Selection for Sound Quality

Daily driver applications benefit from subwoofers optimizing sound quality rather than pure SPL output. Quality subwoofers from JL Audio (W7 series), Focal (Utopia Be series), Hertz (Mille series), and similar manufacturers provide: lower distortion (improving bass clarity and integration with main speakers), extended frequency response (reproducing deep bass and upper bass more evenly), and more natural tonal character (bass sounds musical rather than just loud). These subwoofers typically handle 1500-3000W RMS, suggesting single subwoofer wired for 2Ω or dual subwoofers wired for 2Ω total—extracting the WXA3600.1's 2500W output while matching subwoofer power handling.

Enclosure Design for Daily Drivers

Daily driver enclosures prioritize space efficiency and broad frequency response over absolute maximum SPL. Sealed enclosures offer: compact size (1.5-2.5 cubic feet per 12-inch subwoofer), predictable response (avoiding the tuning-dependent behavior of ported designs), and sound quality advantages (lower distortion, more natural transient response). The WXA3600.1's substantial power (2500W at 2Ω) compensates for sealed enclosures' 3dB efficiency disadvantage versus ported designs, providing deep bass extension without the large enclosure volumes ported designs require.

For users prioritizing maximum bass output in daily drivers, ported enclosures tuned to 30-35Hz provide: 3-4dB more output than sealed designs in tuned frequency range, extended deep bass response (if tuning is appropriate), and excitement factor from the tactile impact ported enclosures generate. However, ported designs require 3-5 cubic feet per 12-inch subwoofer including port displacement—often consuming entire trunk space in sedans and coupes.

Condition Documentation: Brand New Factory Fresh

This KICKER Warhorse WXA3600.1 amplifier is brand new, representing current production from KICKER's Stillwater, Oklahoma manufacturing facility. The unit arrives in original factory packaging with all included accessories: mounting hardware, terminal block hardware, owner's manual, warranty documentation, and KICKER logo stickers. The amplifier has never been installed, powered, or removed from packaging beyond factory quality inspection.

Physical inspection confirms factory-fresh condition: heatsink shows no mounting marks, terminal blocks are clean without wire insertion evidence, all connectors are free from wear, and protective films on surfaces remain in place. This is not new-old-stock that has been stored for extended periods—these are current 2024 production units with recent manufacturing dates, ensuring latest production standards and component quality.

KICKER Warranty and Support

As an authorized KICKER dealer, Audio Intensity provides full manufacturer warranty support. The WXA3600.1 includes KICKER's standard warranty covering defects in materials and workmanship, with duration specified in included documentation. KICKER maintains comprehensive technical support infrastructure including phone support, online resources, and dealer network assistance for installation questions and troubleshooting.

Standard warranty coverage includes manufacturing defects but excludes damage from improper installation (incorrect wiring, inadequate fusing, insufficient electrical system capacity, inadequate cooling), abuse (overpowering subwoofers beyond their capabilities, operating with shorted outputs, sustained operation outside specifications), or environmental factors (water intrusion, extreme heat, corrosion). Following proper installation procedures, providing adequate electrical system capacity, and ensuring appropriate thermal management maintains warranty coverage.

Value Proposition: Warhorse Legacy Meets Modern Performance

The WXA3600.1's value proposition emerges from its combination of legendary brand heritage, verified power output, and engineering sophistication specifically optimized for SPL competition. At $1,099-1,199, it costs more than budget alternatives ($600-800) but delivers verified power specifications, dual power terminals, and KICKER quality control that budget amplifiers cannot match. It costs comparably to or less than premium alternatives ($1,200-1,500) while providing more power at 1Ω—the critical impedance for SPL systems.

The Warhorse name carries value beyond specifications. In SPL competition circles and car audio enthusiast communities, the Warhorse legacy represents proven performance under punishing conditions. This heritage provides confidence that the WXA3600.1 will deliver its rated power reliably rather than requiring the derating or electrical system modifications that plague amplifiers from lesser manufacturers. For competitors where equipment reliability directly affects scoring and prize money, this confidence justifies the WXA3600.1's premium over budget alternatives that might fail during critical competition runs.

The Audio Precision verified testing particularly adds value for discerning users who understand that advertised power specifications often bear limited relationship to real-world performance. KICKER publishes complete testing methodology (available at kicker.com/amp-power-testing) with results measured by industry-standard Audio Precision APx500 analyzer—the same equipment used by independent testing laboratories and serious amplifier manufacturers. This transparency ensures the 3600W specification represents actual performance, not marketing optimism.

For daily driver applications, the WXA3600.1's pricing might seem excessive compared to amplifiers delivering 1000-2000W at fraction of the cost. However, users seeking extreme bass performance (rather than merely adequate bass) find the WXA3600.1 provides capabilities that budget amplifiers cannot approach: sufficient power to drive competition-grade subwoofers to their full potential, electrical system integration that maintains voltage stability under sustained load, and reliability that prevents the thermal limiting or protection shutdowns that plague lesser amplifiers during extended high-power operation. The ability to operate reliably at 2500-3600W continuous output transforms bass reproduction from background element to dominant physical experience—justifying the investment for users prioritizing bass performance.

Who Should Choose the WXA3600.1

The KICKER Warhorse WXA3600.1 serves specific applications where its combination of extreme power output, competition engineering, and brand heritage creates compelling advantages:

SPL Competitors: Enthusiasts competing in sound pressure level competitions where maximum output determines scores and prize money. The WXA3600.1's 3600W @ 1Ω output, 5000W dynamic capability, and proven Warhorse reliability make it competitive in regional and national SPL events without requiring dual-amplifier or strapped-amplifier complexity.

Competition Team Builds: Professional competition teams requiring reliable amplification for vehicles competing in multiple events throughout the season. The WXA3600.1's robust construction and thermal management enable sustained high-power operation during multiple competition runs without the thermal limiting that forces competitors to wait between runs for amplifiers to cool.

Extreme Bass Enthusiasts: Daily driver owners demanding bass performance approaching competition levels but not necessarily competing formally. These users prioritize visceral bass impact and maximum output capability, seeking amplifiers that can drive competition-grade subwoofers to their full potential while maintaining reliability for daily use.

KICKER Brand Loyalists: Users who specifically prefer KICKER products due to previous positive experiences, brand reputation, or aesthetic preferences. The Warhorse WXA3600.1 represents KICKER's flagship monoblock offering, providing maximum power within the KICKER amplifier lineup and continuing the legendary Warhorse heritage.

Factory Integration High-Power Applications: Vehicles retaining factory source units (particularly premium vehicles with sophisticated OEM audio) while adding extreme subwoofer capability. The WXA3600.1's 40V high-level input capability enables these installations without external line output converters, simplifying system integration while delivering competition-grade power.

The WXA3600.1 is less suitable for applications requiring modest power (where 1000-1500W amplifiers cost substantially less while providing adequate output), users prioritizing sound quality over maximum SPL (where amplifiers with more sophisticated processing and lower power might better serve requirements), or budget-focused builds where maximum power per dollar outweighs brand heritage and verified specifications. Understanding these application boundaries ensures the WXA3600.1 serves installations where its strengths align with actual requirements.

Technical Specifications Summary

• Configuration: Monoblock Class D subwoofer amplifier, full-bridge design
• RMS Power @ 4Ω: 1400W continuous (@ 14.4V, <1% THD+N)
• RMS Power @ 2Ω: 2500W continuous (@ 14.4V, <1% THD+N)
• RMS Power @ 1Ω: 3600W continuous (@ 14.4V, <1% THD+N)
• Dynamic Power: 5000W peak capability (@ 14.4V, <10% THD+N)
• Testing Standard: Audio Precision APx500 analyzer verified
• Low-Pass Crossover: Variable 50-200Hz, 24dB/octave
• Subsonic Filter: Variable frequency, driver protection
• Bass EQ: 0-12dB boost, competition-focused
• Input Sensitivity: Low-level 125mV-5V, high-level 1V-40V
• Input Types: RCA line-level and speaker-level (differential balanced)
• Frequency Response: 10-200Hz (subwoofer amplifier range)
• Signal-to-Noise Ratio: >85dB (A-weighted)
• Power Terminals: Dual 1/0 AWG (power and ground)
• Speaker Terminals: 4 AWG capable
• Remote Terminals: Quad 8 AWG (multi-amplifier support)
• Start/Stop Compatible: Yes (operates down to 6.5V)
• Operating Voltage Range: 6.5V - 16V DC
• Protection Systems: Thermal, short circuit, DC offset, overload, low-voltage
• Thermal Management: Active monitoring with power reduction (prevents shutdown)
• Current Draw @ Maximum (1Ω): ~300-320A continuous
• Recommended Fusing: 350-400A total (dual fuses) at battery
• Power Cable: Dual 1/0 AWG minimum (2/0 AWG recommended)
• Electrical System: High-output alternator (300-350A+) and battery capacity required
• Remote Bass Control: Compatible (sold separately)
• Dimensions: Competition-grade chassis (specific dimensions TBD)
• Weight: Substantial (reflecting robust construction and heatsinking)
• Finish: KICKER Warhorse branded chassis
• Condition: Brand new, never installed, factory packaging
• Included Accessories: Mounting hardware, terminal hardware, manual, warranty card
• Warranty: KICKER manufacturer warranty via authorized dealer
• Country of Origin: Designed and engineered in Stillwater, Oklahoma, USA

Final Assessment

The KICKER Warhorse WXA3600.1 represents more than technical specifications—it embodies the return of a legendary amplifier line that defined SPL competition for a generation of car audio enthusiasts. The 3600W RMS continuous output at 1Ω, verified through transparent Audio Precision testing, positions the WXA3600.1 at the threshold where single-amplifier systems can achieve nationally competitive SPL numbers with appropriate subwoofers and enclosures. This power level, combined with the 5000W dynamic capability and full-bridge design optimized for 1Ω efficiency, creates an amplifier specifically engineered for the demands of modern SPL competition rather than adapting daily driver designs for competition applications.

The electrical system integration particularly demonstrates KICKER's competition experience. Dual 1/0 AWG power and ground terminals eliminate connection resistance as a performance limiter, quad remote terminals enable sophisticated multi-amplifier installations without daisy-chain voltage drop, and 4 AWG speaker terminals accommodate the cable gauge necessary for 3600W power transfer. These details matter in competition where every available watt translates to measurable SPL output and where reliability under punishing conditions determines whether competitors finish runs or experience equipment failures that cost scores and prize money.

For daily driver applications, the WXA3600.1 provides capabilities that budget amplifiers cannot approach: sufficient power to drive competition-grade subwoofers to their full potential, electrical system integration maintaining voltage stability under sustained load, and reliability preventing thermal limiting during extended high-power operation. The ability to operate at 2Ω (2500W) for daily driving reduces electrical system demands while still providing extreme bass performance exceeding typical enthusiast requirements. And the 40V high-level input capability enables factory integration in premium vehicles—unusual for competition-grade amplifiers typically targeting aftermarket source unit installations.

At $1,099-1,199, the WXA3600.1 costs more than budget alternatives but delivers verified power specifications, KICKER quality control, and Warhorse brand heritage that budget amplifiers cannot match. For SPL competitors where equipment reliability directly affects scoring, enthusiasts demanding extreme bass performance, and KICKER loyalists seeking the brand's flagship Monoblock offering, the WXA3600.1 provides capabilities justifying its premium. The Warhorse legend has returned—not as nostalgic revival but as comprehensively re-engineered amplifier optimized for modern competition requirements and continuing the performance legacy that made the Warhorse name legendary in car audio.
