🎯 EXECUTIVE OVERVIEW

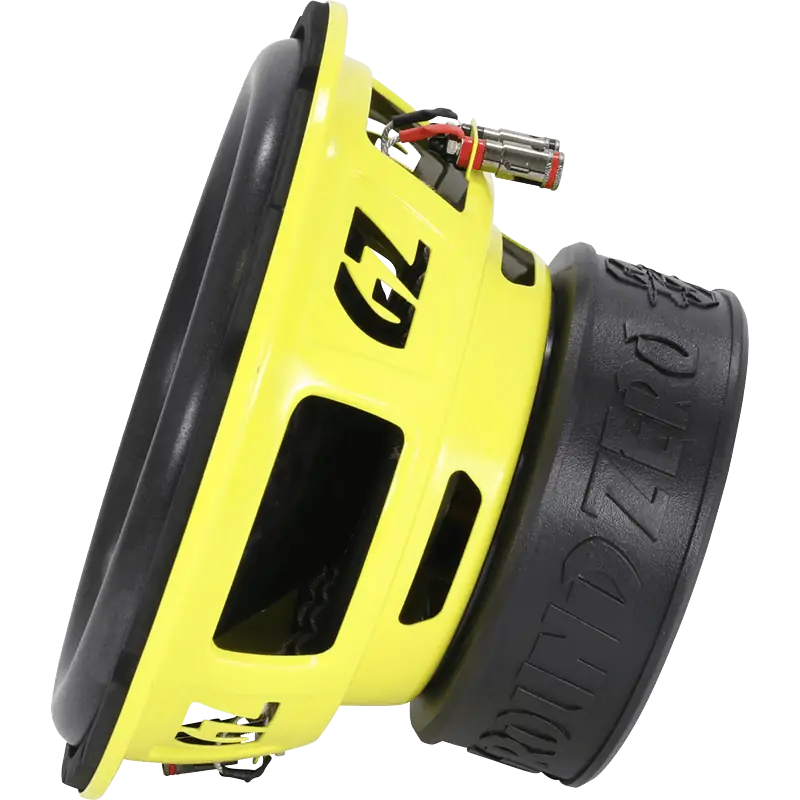

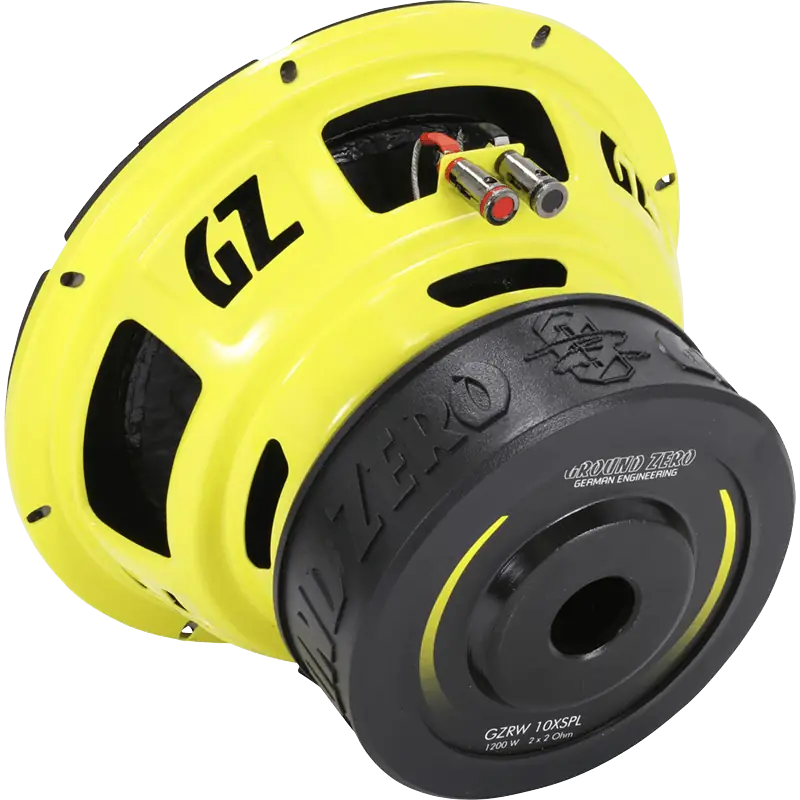

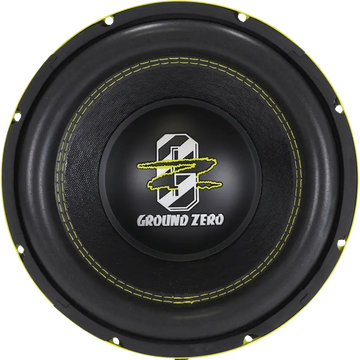

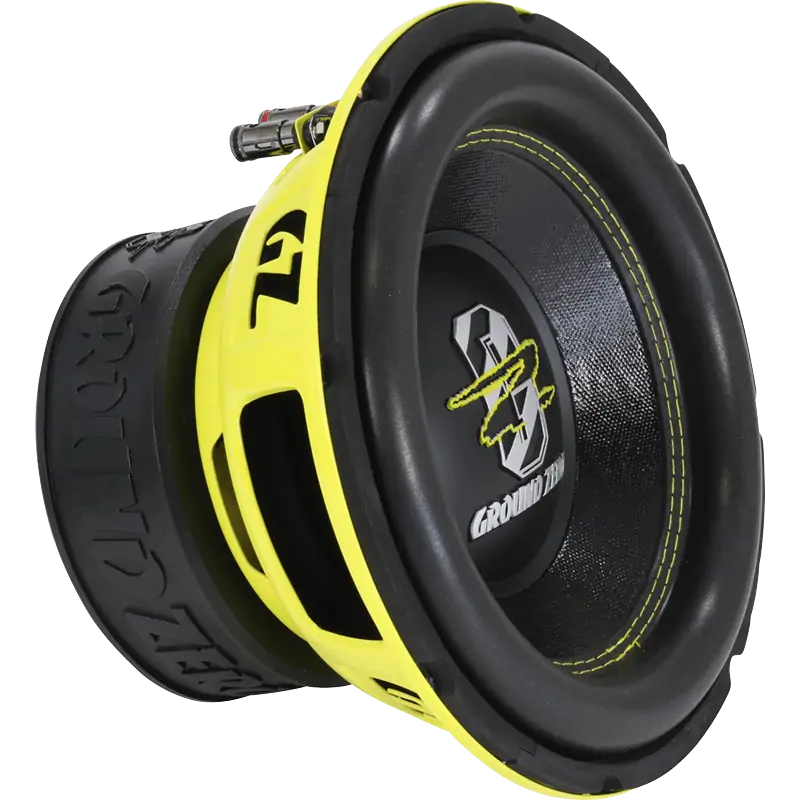

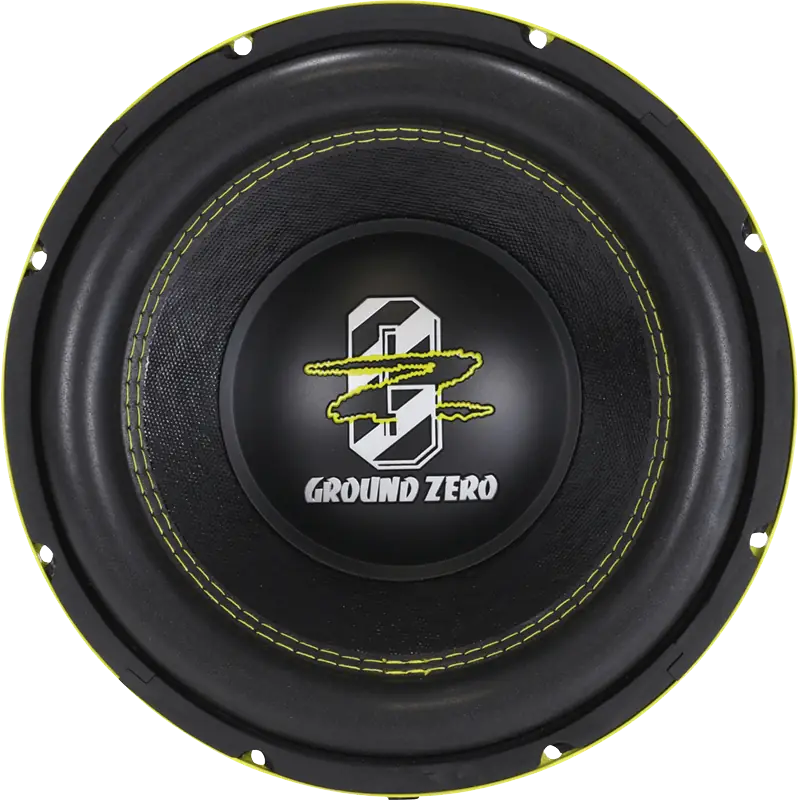

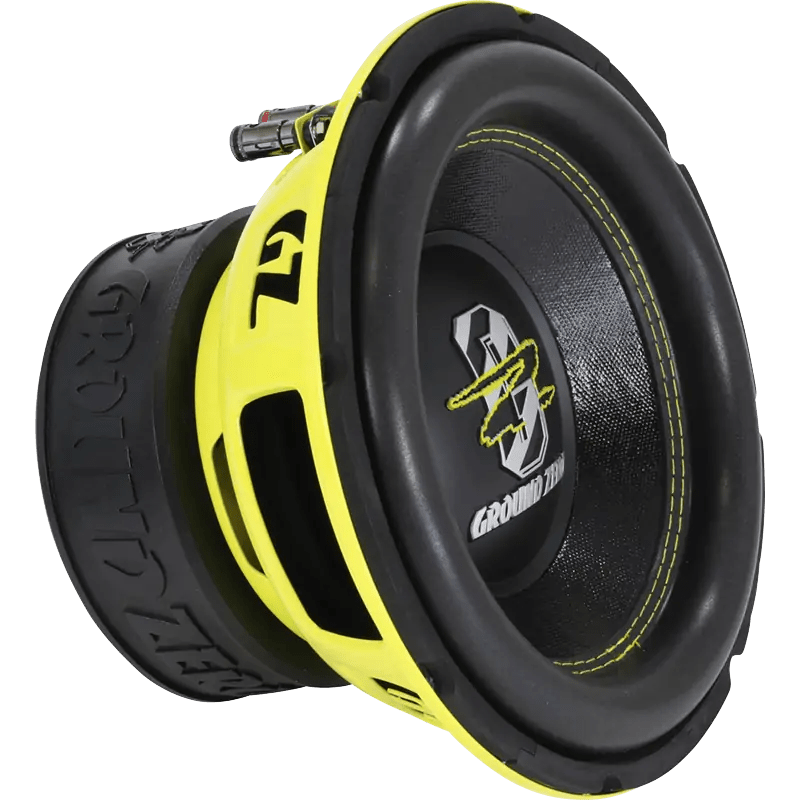

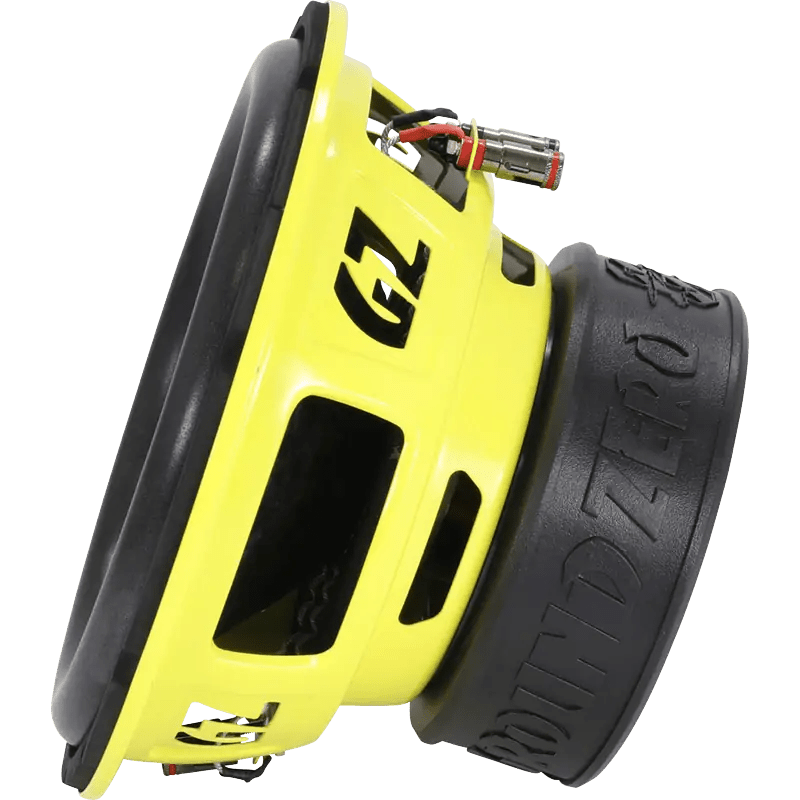

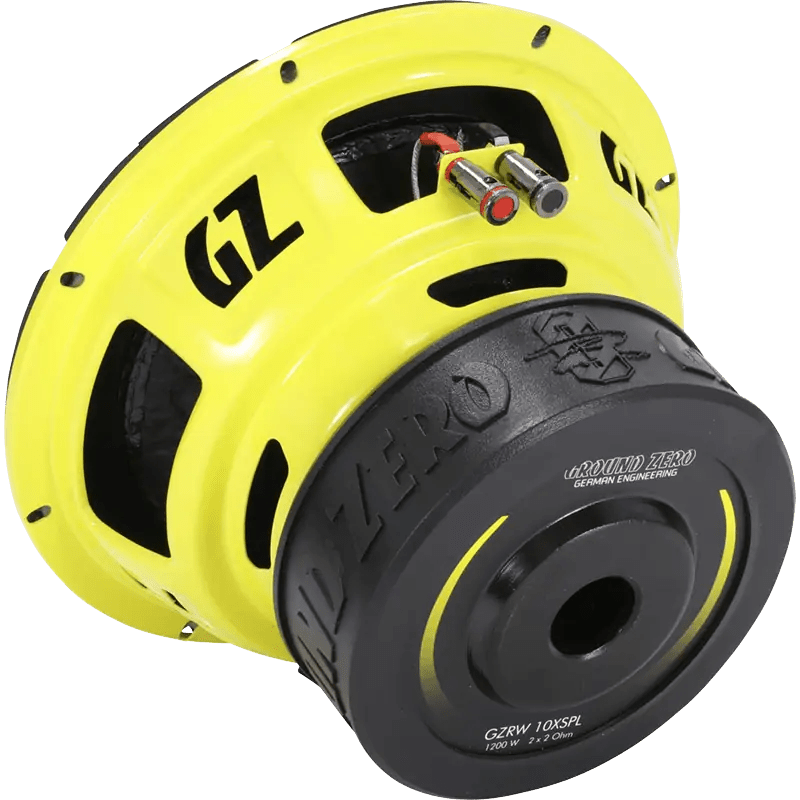

Ground Zero GZRW 10XSPL from Germany's premier Radioactive Series represents European SPL engineering excellence—a Klippel® R&D Analyzer optimized 10" subwoofer designed for enthusiasts demanding maximum output, extreme excursion capability, and German precision at closeout pricing. This is not a sound quality finesse subwoofer—it's a high-power SPL specialist engineered for competition SPL events, demo board demonstrations, and installations where maximum decibel output takes priority.

Available as a closeout model at 50% off retail ($119.99 vs. $239.99), the GZRW 10XSPL delivers competition-grade German engineering with 800W RMS / 1200W SPL power handling, 30mm (1.18") peak-to-peak Xmax (one of the highest excursion ratings in the 10" category), 63mm (2.5") copper voice coil, reinforced paper cone, long-stroke compound surround, and solid aluminum cast basket—all verified through Klippel® measurement standards for reproducible performance.

⚙️ TECHNICAL SPECIFICATIONS

🔥 KEY STRENGTHS

• Klippel® R&D Analyzer Optimized – German in-house development using worldwide-accepted Klippel® KA3 measurement system. Linear Parameter Measurement (LPM) and Large Signal Identification (LSI) modules verify Thiele/Small parameters, nonlinear distortion sources, thermal behavior, and mechanical limits. Result: reproducible, predictable performance matching manufacturer specifications rather than marketing estimates.
• Extreme 30mm Xmax (Peak-to-Peak) – One of the highest excursion ratings in the 10" subwoofer category (13mm one-direction linear excursion). Massive air displacement capability enables satisfying SPL output even from moderate amplifier power (600-800W RMS). Long-stroke compound surround and 2-layer Polycot spider manage excursion extremes without mechanical failure.
• 800W RMS / 1200W SPL Continuous Power Handling – Conservative Klippel®-verified thermal rating enables sustained high-power operation without voice coil failure. 63mm (2.5") copper voice coil provides substantial thermal mass and surface area for heat dissipation. The "SPL" power rating (1200W) indicates short-term transient capability for bass drops and peak musical content.
• 63mm (2.5") Copper Voice Coil – Oversized for 10" subwoofer category (most 10" subwoofers use 2" or smaller voice coils). Larger diameter increases electromagnetic force (BL = 17.58), improves thermal management through increased surface area, and enables higher power handling. Copper material offers excellent thermal conductivity vs. aluminum alternatives.
• Solid Aluminum Cast Basket – Die-cast aluminum construction (not stamped steel) provides superior rigidity, reduced resonance, improved thermal dissipation from motor structure, and resistance to flexing under high-power operation. Aluminum's lightweight properties reduce overall subwoofer mass while maintaining structural integrity necessary for 30mm excursion extremes.
• Reinforced Paper Cone (SPL Optimized) – Treated paper material balances rigidity (to maintain pistonic motion at high excursion) with internal damping (to control breakup modes). Unlike pure polypropylene cones that can exhibit resonant peaks, reinforced paper provides SPL-focused response characteristics with controlled frequency response. Lightweight construction maximizes transient response for kick drum attack.
• Long-Stroke Compound Surround – High-roll surround geometry specifically engineered for extreme excursion applications. Compound material (likely TPE or santoprene-based) resists UV degradation, temperature extremes, and fatigue failure from millions of excursion cycles. Progressive compliance provides mechanical protection against over-excursion without electronic limiters.
• 2-Layer Polycot Spider – Dual-layer progressive suspension provides graduated compliance—initial resistance relatively low for easy cone movement at moderate power, but stiffness increases exponentially as excursion approaches 30mm mechanical limits. Polycotton blend material combines cotton's durability with polyester's moisture resistance for long-term reliability.
• German Engineering Excellence – Ground Zero GmbH (Egmating, Germany) maintains in-house R&D facilities, Klippel® measurement systems, and rigorous QC standards. German engineering philosophy prioritizes reproducible, predictable performance over marketing hype. All Radioactive Series products verified against CEA-2031, IEC 60268 standards, and AES measurement protocols.
• 50% Off Closeout Pricing ($119.99) – German-engineered Klippel®-optimized SPL subwoofer at half retail cost. Closeout status reflects model discontinuation or inventory clearance—not performance deficiency. Exceptional value for enthusiasts accepting limited availability for premium German engineering at budget pricing.

⚠️ IMPORTANT CONSIDERATIONS

SPL Focus = Specific Application

• Not a Sound Quality Subwoofer – The GZRW 10XSPL prioritizes maximum SPL output over transient accuracy, tonal neutrality, and seamless midrange integration. Reinforced paper cone and high Qts (0.749) favor efficiency and output over finesse. Choose this for SPL competition, demo boards, or maximum output applications—not IASCA/MECA sound quality judging.
• Requires High Amplifier Power (600-1200W RMS) – 82 dB sensitivity is moderate for SPL subwoofers (not ultra-efficient like horn-loaded designs). To extract 130+ dB SPL capability, 800-1200W RMS amplification mandatory. Underpowering (<600W RMS) leaves substantial performance untapped and fails to utilize 30mm Xmax potential.
• Ported Enclosure Mandatory for SPL Applications – Ground Zero recommends 25L (0.88 cu ft) ported tuned 38Hz for optimal SPL performance, or 15L (0.53 cu ft) ported @ 40Hz for space-constrained installations. Sealed enclosures sacrifice 3-6 dB output capability—contradicting the subwoofer's SPL purpose. Ported design complexity requires precise port length calculation based on Thiele/Small parameters.
• Dual 2-Ohm Configuration Limits Amplifier Matching – Wire in parallel (1Ω final) for maximum power from 1-ohm stable amplifiers, or series (4Ω final) for 4-ohm optimized amps. No 2-ohm wiring option available (unlike dual 4-ohm subwoofers offering 1Ω, 2Ω, 4Ω, 8Ω flexibility). Verify amplifier 1-ohm stability before purchasing—not all amplifiers safely deliver rated power @ 1Ω.

Installation Complexity

• Ported Box Design Precision Critical – Port length, port area, tuning frequency, and enclosure volume must precisely match Ground Zero's Thiele/Small parameters. Errors create audible problems (port noise, response peaks/dips, mechanical over-excursion below tuning frequency). Use WinISD, BassBox Pro, or professional enclosure design services for accurate ported calculations.
• Professional Installation Strongly Recommended – 800-1200W RMS power delivery requires robust electrical system (high-output alternator, AGM battery, proper gauge power/ground wiring), amplifier gain/crossover tuning to prevent clipping distortion, and subsonic filter configuration to protect against over-excursion below port tuning. DIY installation possible but requires electrical/audio expertise.
• Vehicle Electrical System Upgrades Often Required – 1000W+ continuous amplifier draw (at full power) exceeds most factory alternator capacity. Voltage sag, amplifier thermal protection, and dimming lights indicate inadequate electrical system. Budget for alternator upgrade (200-250A minimum), second battery, capacitor bank, or lithium battery solutions.

⚔️ COMPETITIVE POSITIONING

🎵 IDEAL CUSTOMER PROFILE

Primary Buyers

• SPL Competition Enthusiasts – dB Drag Racing, IASCA/MECA SPL class competitors prioritizing maximum decibel output over sound quality judging criteria. The GZRW 10XSPL's 30mm Xmax, 800W RMS thermal rating, and Klippel®-optimized motor structure deliver competition-grade SPL capability at closeout pricing.
• Demo Board Builders – Mobile audio retailers, installers, and enthusiasts building demo vehicles to showcase system capabilities. Sustained high-power operation (800W RMS continuous) without thermal limiting makes the GZRW 10XSPL ideal for hour-long demonstration sessions at car audio shows, competitions, and customer showcases.
• Bass-Head Daily Drivers – Enthusiasts prioritizing chest-pounding low-frequency impact over audiophile finesse. You listen to bass-heavy electronic music (EDM, dubstep, trap), hip-hop, reggae—genres where maximum SPL output matters more than transient accuracy or seamless midrange integration.
• Budget-Conscious SPL Seekers – Accept closeout model limited availability and potential warranty reduction to access German-engineered Klippel®-optimized SPL performance at 50% discount. Prioritize immediate performance value over long-term replacement part availability.

Secondary Buyers

• German Engineering Enthusiasts – Value Ground Zero's in-house R&D facilities, Klippel® measurement systems, and rigorous CEA-2031/IEC 60268 compliance. Willing to accept closeout status for authentic German engineering vs. mass-market Asian manufacturing.
• Trunk Space Preservers – Compact ported enclosure option (15L/0.53 cu ft @ 40Hz tuning) fits space-constrained installations while maintaining SPL output capability. Smaller than most 12" subwoofer enclosures yet delivers comparable output through extreme excursion and high power handling.
• Electrical System Upgrade Enthusiasts – Already invested in high-output alternator, AGM/lithium batteries, proper gauge wiring. The GZRW 10XSPL's 800-1200W RMS power requirement is manageable when electrical system already supports high-power amplification.

🔧 SYSTEM INTEGRATION RECOMMENDATIONS

Amplification Suggestions

Wiring Configuration Guide

• 1Ω Parallel Wiring (Recommended): Connect positive terminals together, negative terminals together → 1Ω final impedance → Extracts maximum amplifier power (most Class D amps deliver 50-100% more @ 1Ω vs. 2Ω) → Verify amplifier 1-ohm stability rating mandatory
• 4Ω Series Wiring (Backup Option): Connect one coil's positive to other coil's negative, use remaining terminals for amp connection → 4Ω final impedance → Reduces amplifier power output 50-75% (sacrifices SPL capability) → Only use if amplifier not 1-ohm stable

Enclosure Specifications (Ground Zero Recommended)

• Optimal SPL Ported Design: 25 Liters (0.88 cu ft) net internal volume → 1× 8cm (3.15") port diameter → 22.5cm (8.89") port length → 38 Hz tuning frequency → F3 frequency response (lowest usable bass extension)
• Compact Ported Alternative: 15 Liters (0.53 cu ft) net volume → 1× 8cm (3.15") port diameter → 34cm (13.48") port length → 40 Hz tuning frequency → Limited low-frequency extension and power handling vs. optimal design, but fits space-constrained installations
• Construction Requirements: 18-25mm (0.75-1.0") MDF minimum thickness → All seams sealed with wood glue or silicone → Internal bracing for panels exceeding 300mm (12") dimension → Port flared inlet/outlet reduces chuffing noise at high SPL
• Important Volume Calculation: Net internal volume accounts for subwoofer displacement, port displacement, internal bracing. Use enclosure calculator software (WinISD, BassBox Pro) inputting Ground Zero Thiele/Small parameters for precise port dimensions.

Signal Processing & Electrical Requirements

• Subsonic Filter: 30-33 Hz (24 dB/octave Linkwitz-Riley) for 38Hz ported tuning, 33-36 Hz for 40Hz tuning → Protects against mechanical over-excursion below port tuning frequency where cone control is lost
• Low-Pass Crossover: 80-100 Hz (12-24 dB/octave) depending on front-stage midbass capabilities → Higher crossover frequency acceptable for SPL applications (not sound quality judging)
• Gain Setting: Set amplifier gain using 50-60 Hz test tones at target listening volume → Target 80-90% amplifier output capability → Never exceed amplifier clipping threshold (audible distortion = voice coil thermal damage risk)
• Electrical System: Minimum 200A alternator for 1000W+ continuous operation → 1/0 AWG power/ground wiring → AGM or lithium battery recommended → Second battery or capacitor bank for voltage stability under sustained high-power loads

✅ WHY GROUND ZERO GZRW 10XSPL?

📋 FINAL RECOMMENDATION

The Ground Zero GZRW 10XSPL represents German SPL engineering at closeout pricing—Klippel® R&D Analyzer optimized, 30mm Xmax (best-in-class 10" excursion), 800W RMS / 1200W SPL power handling, 63mm copper voice coil, and solid aluminum cast basket. This is the subwoofer for SPL competition enthusiasts, demo board builders, and bass-head daily drivers who prioritize maximum decibel output over audiophile finesse.

At 50% off retail pricing ($119.99 vs. $239.99), the GZRW 10XSPL offers German engineering excellence at budget-tier cost. While closeout status means limited availability and no future replacement parts, the immediate performance value is exceptional—Klippel®-verified specifications, extreme excursion capability, and professional-grade construction typically found in $300+ premium subwoofers.

Reviewed by Audio Intensity Pro Audio Team

Specifications verified against Ground Zero official documentation and Klippel® measurement data
