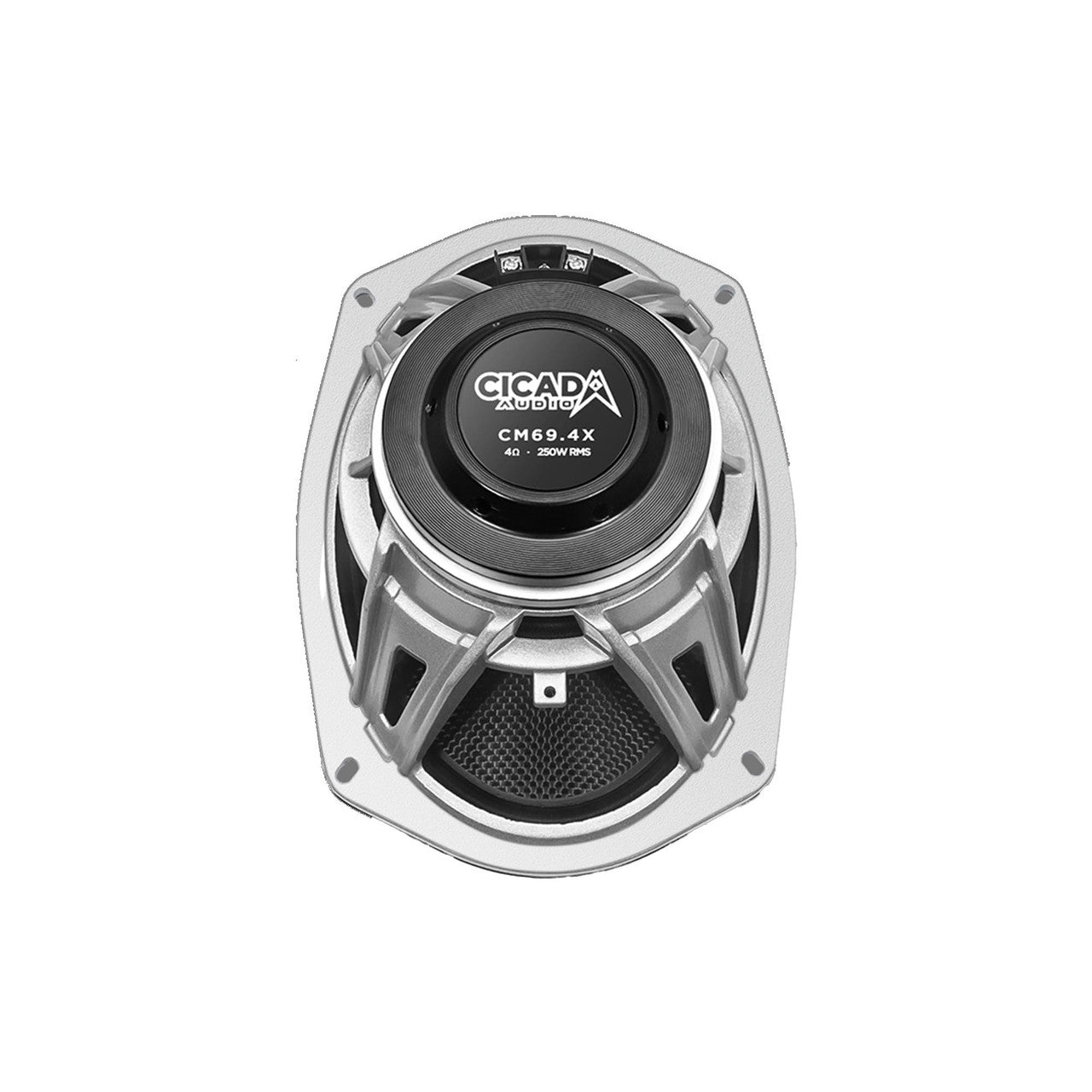

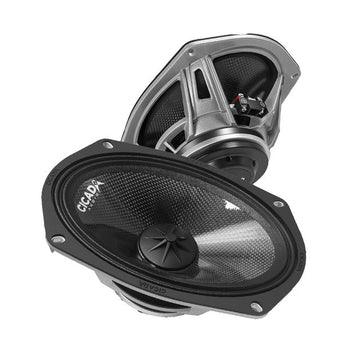

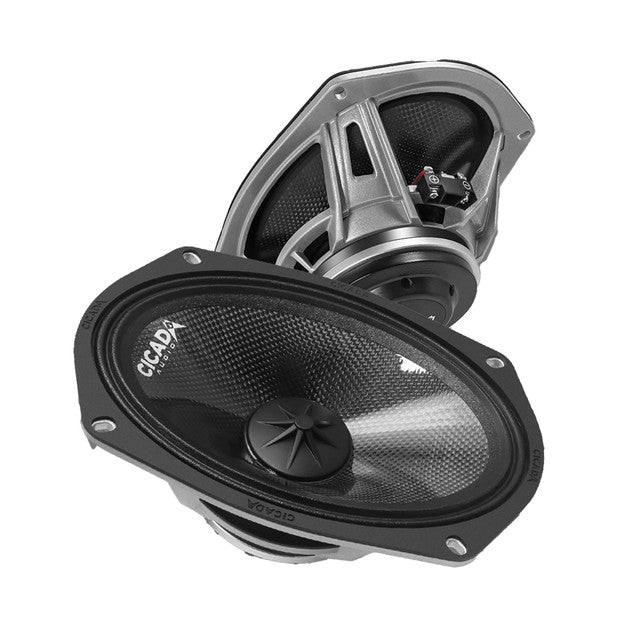

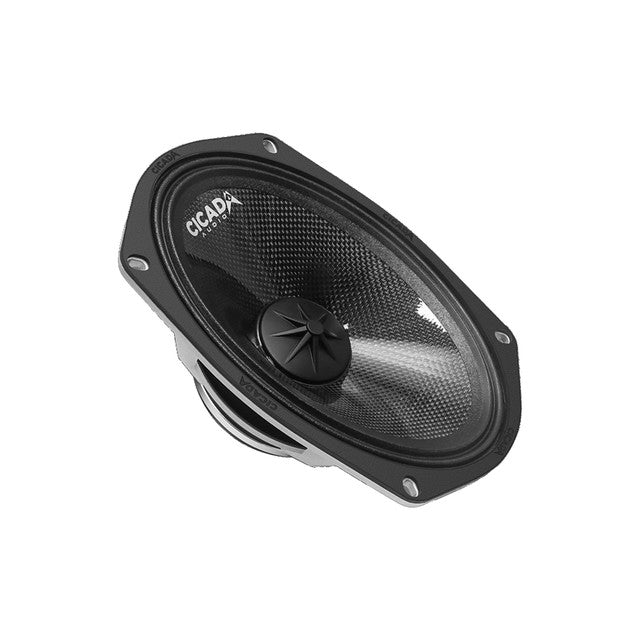

Cicada CM69.4X 6X9-inch Mid-Bass Component Speakers - Pair

The Component Revolution: Purpose-Built Mid-Bass Engineering

The Cicada CM69.4X represents a paradigm shift in 6×9 speaker design — a true component mid-bass driver engineered exclusively for active crossover systems. While the automotive aftermarket has long treated the 6×9 format as a coaxial compromise for factory replacement, Cicada Audio challenges this convention with a dedicated mid-bass driver that leverages the 6×9 cone area advantage (64.7 square inches vs. 33.2 square inches for 6.5" drivers) to deliver exceptional midbass impact, extended low-frequency extension, and 94 dB efficiency that transforms front-stage performance. This is not a universal full-range speaker trying to do everything adequately — this is a focused tool built for one purpose: delivering chest-pounding midbass authority from 70 Hz to 10 kHz with 250W RMS power handling and Carbon Matrix Composite cone technology.

Phoenix Engineering: The Cicada Audio Origin Story

Cicada Audio emerged in 2020 from Phoenix, Arizona with a singular mission: develop the world's best motorcycle audio systems. Founded by a team of motorcycle enthusiasts and audio engineers frustrated by the compromises inherent in traditional car audio adapted for two-wheeled applications, Cicada set out to engineer products from the ground up for the unique acoustic challenges of motorcycle environments — extreme vibration, constant wind noise, temperature extremes from 20°F desert mornings to 120°F midday asphalt, UV exposure, and limited mounting space. The company's Rain or Shine™ weatherproofing philosophy and focus on high-efficiency, high-output designs quickly gained traction in the Harley-Davidson aftermarket, where riders demand concert-level volume at highway speeds without massive amplifier installations. Cicada's motorcycle heritage directly informs the CM69.4X's design — the all-weather construction, vibration-resistant basket, and 94 dB sensitivity are carried over from motorcycle applications where reliability and efficiency are non-negotiable. Headquartered at 3757 E. Broadway Rd. Suite 3, Phoenix, AZ 85040, Cicada has expanded beyond motorcycle audio to serve car audio enthusiasts, marine applications, and powersports vehicles, but the company's commitment to uncompromising performance in harsh environments remains central to every product bearing the Cicada name.

Carbon Matrix Composite™ Technology: The Material Science Advantage

The heart of the CM69.4X's performance is its Carbon Matrix Composite (CMC™) cone — an advanced material that combines carbon fiber reinforcement with polymer matrix technology to achieve the holy grail of speaker cone design: high stiffness-to-weight ratio, internal damping, and extreme thermal stability. Traditional paper cones excel at internal damping but suffer from humidity sensitivity and low power handling. Polypropylene cones offer weather resistance but exhibit excessive flexing at high SPL. Aluminum and metal cones provide rigidity but introduce ringing resonances and weight penalties. Cicada's CMC™ technology sidesteps these compromises by engineering a carbon fiber lattice structure embedded in a thermoplastic polymer matrix, creating a cone that is simultaneously lightweight (optimizing efficiency), rigid (minimizing breakup modes), internally damped (controlling resonances), and thermally stable to 400°F+ (surviving voice coil heat). The matte black finish is not cosmetic — it's a heat-dissipating surface treatment that radiates thermal energy away from the voice coil region. In practical terms, CMC™ delivers cleaner bass transients (kick drums snap with authority rather than bloom), extended low-frequency response (cone doesn't fold at high excursion), and long-term reliability under sustained high-power playback. The 6×9 cone area amplifies these benefits — the larger surface moves more air with less excursion, reducing distortion and increasing power handling compared to smaller drivers working harder to generate the same output.

CMC™ vs. Conventional Materials: Performance Comparison

N35SH Neodymium Motor Assembly: Magnetic Engineering Excellence

The CM69.4X utilizes an N35SH grade neodymium magnet motor — a premium magnetic material specification that reveals Cicada's commitment to high-performance engineering. Breaking down the designation: N35 indicates the magnetic energy product (35 MGOe — megaGauss-Oersteds), representing the magnetic field strength and efficiency of the motor structure. The SH suffix denotes "Super High" temperature rating, meaning the magnet maintains stable performance to 150°C (302°F) — critical for high-power applications where voice coil heat radiates into the magnet structure. This is a significant upgrade over standard N35 neodymium (80°C rating) or ceramic ferrite magnets (low cost but bulky and inefficient) used in mainstream 6×9 coaxials. The neodymium motor delivers three key advantages: (1) Higher efficiency — the 94 dB sensitivity rating means the CM69.4X generates the same SPL as an 88 dB driver with 4× the amplifier power (1W vs. 4W for same output). (2) Reduced distortion — the stronger magnetic field provides better voice coil control during excursion, minimizing Bl (magnetic force factor) non-linearity. (3) Thermal stability — the SH temperature rating prevents magnetic field degradation during sustained high-power playback, maintaining performance consistency even when the voice coil hits 200°C+ under 250W continuous torture testing. The motor assembly is paired with a 2-inch (51mm) voice coil — substantially larger than the 1-1.5" voice coils in typical 6×9 coaxials — providing greater heat dissipation surface area and higher power handling before thermal compression sets in.

Rain or Shine™ All-Weather Performance Design

Cicada's Rain or Shine™ weatherproofing philosophy is born from motorcycle audio's unforgiving operating environment — speakers mounted in saddlebags, fairings, and exposed locations where traditional car audio components fail catastrophically within months. The CM69.4X incorporates marine-grade materials and construction techniques throughout: (1) CMC™ cone — completely impervious to moisture, humidity, and temperature cycling (no delamination, warping, or degradation). (2) Santoprene rubber surround — UV-resistant, ozone-resistant, and temperature-stable from -40°F to +160°F (conventional foam surrounds disintegrate within 2-3 years under UV exposure; rubber remains pliable indefinitely). (3) Sealed magnet motor — protective coating prevents corrosion of the neodymium magnet and steel backplate (critical for marine/motorcycle applications where salt spray accelerates rust). (4) Tinsel lead wiring with strain relief — flexible copper leads with reinforced attachment points prevent fatigue failure from constant vibration (motorcycle/off-road applications subject speakers to 10-20G shock loading). (5) Die-cast aluminum basket with Vortex Flow Venting™ — corrosion-resistant basket with engineered airflow channels that cool the voice coil while preventing water intrusion. These features may seem excessive for car audio installations, but they translate to decades of reliable performance rather than the 5-7 year typical lifespan of conventional speakers. The all-weather construction also enables Jeep/UTV/marine applications where speakers face direct weather exposure — the CM69.4X performs identically whether mounted in a climate-controlled sedan or an open-air side-by-side traversing desert dunes.

Complete Technical Specifications

The 6×9 Component Advantage: Why Size Matters for Midbass

The automotive aftermarket has historically dismissed 6×9 speakers as "factory replacement compromises" — decent for rear fill in coaxial form but inferior to 6.5" components for serious front-stage systems. This perception ignores fundamental physics: larger cone area = higher efficiency, greater maximum SPL, and extended low-frequency response. The CM69.4X's 64.7 square inch effective piston area is 1.95× larger than a 6.5" driver (33.2 sq in), translating to concrete performance advantages: (1) Higher efficiency — moving more air with less excursion requires less power for the same SPL (94 dB sensitivity vs. 88-90 dB typical for 6.5" components). (2) Greater maximum output — 250W RMS into 64.7 sq in generates higher peak SPL than 250W into 33.2 sq in before reaching mechanical limits. (3) Extended bass response — larger cone area reaches lower frequencies with authority (70 Hz ±3 dB vs. 80-100 Hz typical for 6.5" drivers). (4) Reduced distortion at high SPL — less excursion needed to generate target output means voice coil stays within linear region, minimizing intermodulation distortion. The traditional objection to 6×9 components — "they don't fit standard door locations" — is mitigated by modern door panel fabrication techniques and the fact that many trucks, SUVs, and classic vehicles feature factory 6×9 locations. For applications where door mounting is feasible, the CM69.4X delivers midbass impact comparable to dedicated 8" or 10" subwoofers crossed at 80 Hz, eliminating the need for separate subwoofer enclosures in systems prioritizing front-stage emphasis.

Active Crossover Integration: Optimal System Design

The CM69.4X is designed for active crossover integration — using external DSP or amplifier built-in crossovers to define frequency bands rather than passive crossover networks. Active crossovers offer superior flexibility, precision, and power efficiency compared to passive designs, but they require speakers optimized for specific frequency ranges. The CM69.4X's 70 Hz – 10 kHz usable bandwidth provides extensive flexibility for two-way and three-way active configurations:

DSP Tuning Recommendations

The CM69.4X's high efficiency and wide bandwidth enable aggressive DSP tuning for maximum impact:

• High-Pass Filter: Set to 70-80 Hz (24 dB/octave Linkwitz-Riley) to protect drivers from excessive subwoofer-range excursion while maintaining bass authority down to kick drum fundamentals.
• Low-Pass Filter: For two-way systems, 2.5 kHz works well with most tweeters. For three-way systems, 800 Hz to 1.2 kHz provides optimal integration with dedicated midrange drivers.
• Time Alignment: The CM69.4X's moderate mounting depth (3.26") simplifies time alignment calculations. In door-mounted applications, delay the CM69.4X by 1.5-3.0ms relative to dash-mounted tweeters to compensate for path length differences.
• EQ Adjustments: The CMC™ cone exhibits minimal breakup modes, allowing aggressive EQ without introducing resonances. Apply +3 to +6 dB shelf boost below 100 Hz to maximize low-end impact in systems without dedicated subwoofers. If midrange honk is present around 400-600 Hz (common in door installations), apply narrow Q (-2 to -3 dB notch filter) to smooth frequency response.
• Output Level Balancing: The 94 dB sensitivity may require -3 to -6 dB attenuation relative to less efficient tweeters/midranges to achieve balanced output across drivers.

Installation Insights: Mounting, Wiring, and System Integration

The CM69.4X's 5.7" × 8.5" mounting diameter and 3.26" depth fit most factory 6×9 locations in trucks, SUVs, and classic vehicles without modification. For vehicles lacking factory 6×9 locations, door panel fabrication or kick panel mounting are common solutions. Key installation considerations:

Competitive Analysis: CM69.4X vs. Mainstream 6×9 Alternatives

Key Comparison Insights

• vs. JBL GTO939: The CM69.4X delivers 2.5× the RMS power handling (250W vs. 100W), superior weather resistance, and neodymium motor efficiency. The GTO939 is a capable coaxial for factory replacement but cannot match the CM69.4X's component-grade construction and high-power capability.
• vs. Kicker DSC6930: The CM69.4X provides 2.8× the RMS power handling (250W vs. 90W), 2 dB higher sensitivity (more output from same power), and component design flexibility. The DSC6930's polypropylene cone exhibits greater flex at high SPL, limiting maximum clean output.
• vs. Morel Maximo Ultra 692: The CM69.4X offers 2.3× the RMS power handling (250W vs. 110W), superior weatherproofing, and neodymium motor technology. While the Morel delivers excellent sound quality for a coaxial, the CM69.4X's component specialization and CMC™ cone provide higher output capability and long-term reliability in extreme environments.
• Price Positioning: The CM69.4X commands a significant premium ($549.99 vs. $120-$210 for alternatives), justified by component-grade construction, 2-2.8× higher power handling, neodymium motor, marine-grade weatherproofing, and manufacturer heritage in extreme-environment audio. This is not a factory replacement speaker — this is a specialized tool for serious custom installations where midbass performance is prioritized.

Sonic Signature and Genre Performance

The CM69.4X's Carbon Matrix Composite cone, neodymium motor, and 94 dB sensitivity create a distinctive sonic character: impactful, authoritative, and dynamic. The CMC™ cone's high stiffness delivers fast transient response — kick drums hit with percussive snap rather than bloomy overhang. The 2-inch voice coil and neodymium motor provide exceptional control during excursion, maintaining linearity even at sustained high output. The 94 dB sensitivity translates to effortless dynamics — the CM69.4X plays louder with less strain compared to less efficient alternatives. Here's how the CM69.4X performs across musical genres:

Warranty and Long-Term Reliability

Cicada Audio backs the CM69.4X with a 2-year manufacturer warranty covering defects in materials and workmanship. The warranty reflects confidence in the all-weather construction and component-grade build quality, but the real reliability story lies in the materials and engineering. The CMC™ cone, Santoprene rubber surround, sealed neodymium motor, and die-cast aluminum basket are engineered for decades of service in applications where conventional speakers fail within 3-5 years. Motorcycle audio systems subject speakers to 10-20G shock loading, temperature cycling from -20°F to 140°F, UV exposure equivalent to thousands of hours of Arizona sun, and constant vibration — if the CM69.4X survives these conditions, a climate-controlled car interior is a vacation. The OFC copper voice coil with Black Coat™ thermal treatment ensures consistent performance under sustained high-power playback, preventing power compression that plagues speakers with inadequate thermal management. The die-cast aluminum basket's Vortex Flow Venting™ dissipates heat while maintaining structural rigidity — critical for maintaining voice coil alignment under thermal expansion. Properly installed with adequate amplifier power, the CM69.4X will deliver peak performance for 10-15+ years, far exceeding the typical 5-7 year lifespan of mainstream speakers before surrounds deteriorate, cones warp, or voice coils fail.

System Building Scenarios

Conclusion: The Component Mid-Bass Redefined

The Cicada CM69.4X challenges the automotive audio industry's conventional wisdom that 6×9 speakers are relegation to factory replacement duty. By engineering a dedicated component mid-bass driver that leverages the 6×9 format's inherent advantages — 64.7 square inches of cone area, extended low-frequency response, high efficiency, and maximum output capability — Cicada has created a tool for builders who refuse to compromise on midbass performance. The Carbon Matrix Composite cone, N35SH neodymium motor, 250W RMS power handling, and Rain or Shine™ construction deliver performance that rivals dedicated 8" midbass drivers while fitting more vehicle applications. The $549.99 retail price positions the CM69.4X as a premium investment, but the combination of motorcycle-grade durability, component specialization, and decades of reliable service justifies the cost for enthusiasts building reference-quality systems. This is not a speaker for casual upgrades — this is a purpose-built component for active crossover systems where midbass authority, dynamic capability, and long-term reliability are non-negotiable. If your project demands chest-pounding impact, extended low-frequency response without subwoofer dependency, and weatherproof construction that survives extreme environments, the Cicada CM69.4X delivers the foundation your system deserves. Welcome to the component revolution.
