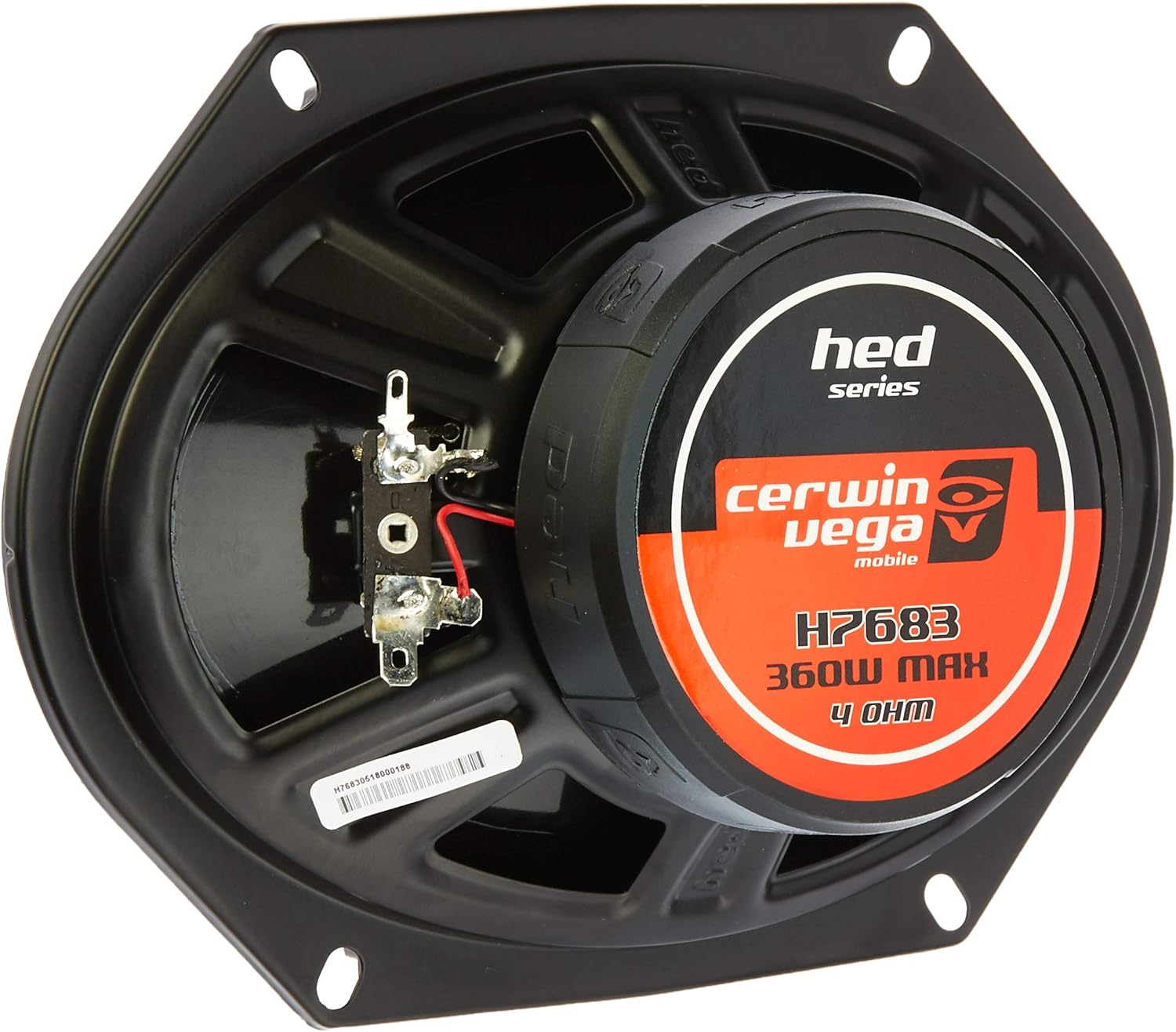

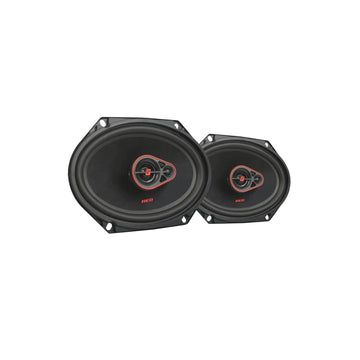

Cerwin Vega H7683 - HED Series 6"×8" 3-Way Coaxial Speakers

Legendary Cerwin-Vega SPL Heritage Meets Modern 3-Way Coaxial Design for Factory Replacement Excellence

Product Overview: Cerwin-Vega HED Series Philosophy

The Cerwin Vega H7683 represents the brand's strategic entry into the value-oriented factory replacement speaker market—a segment where enthusiasts seek meaningful audio improvement over OEM speakers without the installation complexity, amplifier requirements, or budget demands of component speaker systems. Where Cerwin-Vega's legacy rests on high-SPL professional PA systems and competition-grade subwoofers, the HED (High Efficiency Design) Series democratizes that SPL-focused engineering philosophy for mainstream vehicle audio upgrades at accessible $59.99 pricing (per pair).

What distinguishes the H7683 in the crowded 6"×8" (5"×7" compatible) coaxial speaker category isn't revolutionary technology or exotic materials—it's the thoughtful application of Cerwin-Vega's 70+ year SPL engineering heritage to the constraints of factory replacement applications. The 60W RMS power handling accommodates both factory head units (15-22W per channel typical) and modest aftermarket amplifiers (50-75W per channel), eliminating the "underpowered with factory head unit, overpowered with aftermarket amplifier" compromise plaguing budget coaxials. The 87dB sensitivity rating delivers adequate output with factory power while providing headroom for aftermarket amplification without requiring extreme wattage. The 3-way design—6"×8" polypropylene woofer, 1" PEI balanced dome tweeter, 1" high-frequency super tweeter—extends frequency response through 20kHz for modern music reproduction while maintaining Cerwin-Vega's midrange presence and vocal clarity legacy.

The H7683's 6"×8" (5"×7") dual-fitment configuration addresses the pragmatic reality of factory replacement installations: many vehicles use either 6"×8" mounting holes OR 5"×7" mounting holes in rear deck/door locations, and requiring separate SKUs for each size increases inventory complexity and consumer confusion. The H7683 ships with mounting hardware accommodating both fitments, enabling single-SKU versatility across dozens of vehicle applications without requiring vehicle-specific speaker selection. The 2.44" mounting depth fits typical factory locations without requiring spacer brackets or door panel modifications that complicate installation for DIY enthusiasts lacking professional fabrication tools.

This is not a speaker for audiophiles seeking neutral frequency response, low distortion, or component-level imaging precision. The H7683 prioritizes the Cerwin-Vega brand attributes enthusiasts expect: elevated SPL capability (loud without distortion at high volume), midrange/vocal presence (dialog clarity in movie soundtracks, vocal intelligibility in music), and bass extension (meaningful low-frequency output down to 50Hz without subwoofer support—useful for enthusiasts upgrading factory speakers before adding dedicated subwoofers). For budget-conscious enthusiasts building their first audio upgrade, families seeking improved dialog clarity for road trip entertainment systems, or used vehicle buyers replacing failed factory speakers, the H7683 delivers recognizable Cerwin-Vega performance characteristics at Walmart/Amazon pricing accessibility.

Complete Technical Specifications

3-Way Coaxial Architecture: Woofer, Tweeter, Super Tweeter Integration

The H7683's 3-way coaxial design represents the pragmatic middle ground between basic 2-way coaxials (woofer + tweeter only) and complex 4-way designs adding unnecessary midrange drivers that increase cost without proportional audio improvement in factory replacement applications. Understanding the role of each driver and the integrated crossover network clarifies why 3-way designs deliver superior frequency range coverage compared to 2-way alternatives within modest pricing constraints.

6"×8" Polypropylene Woofer: Bass & Midrange Foundation

The 6"×8" polypropylene cone handles the critical 50Hz-4kHz frequency range encompassing bass fundamentals (kick drum, bass guitar, synthesizer bass lines at 50-200Hz), lower midrange (male/female vocal fundamentals, guitar/piano body resonance at 200-500Hz), and upper midrange (vocal presence, instrument definition, consonant clarity at 500Hz-4kHz). This wide bandwidth coverage places enormous demands on cone material, surround compliance, and motor structure—demands the H7683 addresses through proven automotive speaker engineering fundamentals.

Polypropylene Cone Material:

• Moisture Resistance: Polypropylene's hydrophobic nature resists humidity, condensation, and temperature extremes common in automotive environments (unlike paper cones susceptible to warping/deterioration)
• Stiffness-to-Weight Ratio: Adequate rigidity prevents cone flex (which causes frequency response irregularities) while maintaining low mass for transient response
• Self-Damping Properties: Polypropylene's internal damping reduces resonance peaks that color midrange frequency response
• Cost-Effective Manufacturing: Injection molding enables consistent quality at budget-friendly pricing vs. exotic cone materials (carbon fiber, Kevlar, aluminum) requiring premium pricing

Treated Foam Surround:

• Compliance Control: Foam surround determines cone excursion capability (how far the cone moves) which directly affects bass output — treated foam maintains consistent compliance across temperature ranges
• UV/Ozone Resistance: Treatment chemicals protect foam from UV degradation (sunlight through windows) and ozone deterioration that causes foam rot in untreated surrounds
• Longevity: Properly treated foam surrounds provide 10-15 year service life vs. 5-7 years for untreated foam or rubber surrounds in automotive environments

1" PEI Balanced Dome Tweeter: Midrange-to-Treble Transition

The 1" (25mm) PEI (Polyetherimide) balanced dome tweeter handles the 4kHz-15kHz frequency range encompassing upper midrange clarity (cymbal attack, string instrument harmonics at 4-8kHz) and fundamental treble (vocal sibilance, high-hat detail, synthesizer high-frequency content at 8-15kHz). This bandwidth represents the "presence region" where vocal intelligibility and instrument definition reside—critical for dialog clarity in movie soundtracks and vocal forward music genres (pop, country, R&B).

PEI (Polyetherimide) Material Advantages:

• High Stiffness-to-Mass Ratio: PEI maintains dome shape integrity at high excursion levels (loud volume) without breakup modes that cause harshness
• Temperature Stability: PEI's glass transition temperature (~217°C) far exceeds automotive interior temperatures, maintaining consistent performance during hot summer exposure
• Internal Damping: PEI's molecular structure provides self-damping reducing resonance peaks common in metal dome tweeters (aluminum, titanium)
• Cost-Effective Premium: PEI offers performance approaching exotic materials (silk, textile, beryllium) at fraction of premium pricing

Balanced Dome Design:

• Symmetrical Magnetic Field: "Balanced" dome architecture ensures voice coil operates in uniform magnetic field reducing distortion during high-excursion playback (loud passages)
• Reduced Harmonic Distortion: Balanced designs minimize even-order harmonic distortion (perceived as harshness) compared to unbalanced budget tweeter designs

1" High-Frequency Super Tweeter: Extended Treble Response

The 1" high-frequency super tweeter extends frequency response from 15kHz through 20kHz, capturing the ultra-high-frequency content present in modern digital recordings, high-resolution audio formats, and properly mastered CDs. While debate exists regarding human hearing capability above 15kHz (particularly in automotive environments with road noise), the super tweeter addresses three pragmatic benefits:

Air & Ambiance Reproduction:

• Spatial Cues: Ultra-high frequencies (15-20kHz) contain spatial information (room reflections, ambient sounds) that contribute to perceived soundstage width and depth
• Cymbal Shimmer: Crash cymbal decay extends through 20kHz — super tweeters reproduce this decay naturally vs. abrupt roll-off at 15kHz creating unnatural truncation

Crossover Load Reduction:

• Main Tweeter Relief: By handling 15-20kHz content, the super tweeter reduces excursion demands on the main 1" PEI tweeter, allowing it to focus on 4-15kHz range with lower distortion
• Power Distribution: Ultra-high frequencies contain minimal power — the super tweeter requires <1W even at loud playback levels, imposing negligible amplifier load

Marketing Differentiation:

• 3-Way vs. 2-Way Positioning: The super tweeter enables "3-way" marketing classification differentiating H7683 from 2-way competitors at similar pricing
• Perceived Value: Three visible drivers (woofer + tweeter + super tweeter) create visual impression of premium engineering vs. 2-way designs with two drivers

Installation Requirements & Vehicle Compatibility

The H7683's factory replacement positioning prioritizes installation simplicity and vehicle compatibility over maximum sonic performance — understanding fitment requirements, power connections, and mounting procedures ensures successful DIY installation without professional fabrication skills or specialized tools.

Vehicle Fitment Verification

Before purchasing, verify your vehicle accommodates 6"×8" OR 5"×7" speakers in target installation locations (typically rear deck, rear doors, or front doors on certain models). The H7683 fits both sizes using included hardware, but physical speaker opening dimensions must match one of these standard patterns.

6"×8" Fitment (Primary Configuration):

• Cutout Dimensions Required: 7.362" × 5.079" (187mm × 129mm) mounting hole
• Mounting Depth Clearance: Minimum 2.5" depth behind mounting surface (accounts for speaker depth + wiring clearance)
• Common Vehicle Applications: Ford F-150/Explorer/Mustang rear deck, GM trucks/SUVs rear doors, Chrysler 300/Charger rear deck

5"×7" Fitment (Secondary Configuration with Adapter):

• Cutout Dimensions Required: 5.000" × 7.000" (127mm × 178mm) mounting hole
• Adapter Bracket Function: Included adapter plate converts 6"×8" speaker mounting to 5"×7" hole pattern
• Common Vehicle Applications: Honda Civic/Accord, Toyota Camry/Corolla, Nissan Altima/Sentra door locations

Power Connection Methods

The H7683 accepts standard 16-20 AWG speaker wire via push terminals — no soldering or specialized connectors required. Connection methods depend on factory wiring harness configuration.

Factory Head Unit Installation (Most Common):

• Direct Factory Harness: If factory speakers use standard push terminals or blade connectors, disconnect factory speaker and connect H7683 using same terminals
• Wire Splicing: If factory speakers hardwired, cut factory speaker wires ~6" from speaker, strip insulation, connect H7683 wires (observe polarity: typically red = positive, black = negative)
• Aftermarket Harness Adapters: Vehicle-specific harness adapters (Metra, Scosche brands) enable plug-and-play connection without cutting factory wiring — recommended for lease vehicles or future resale

Aftermarket Amplifier Installation:

• Amplifier Speaker Outputs: Run dedicated speaker wire (16-18 AWG) from amplifier output terminals to H7683 location, connect via push terminals
• Power Handling Consideration: H7683's 60W RMS power handling accommodates 50-75W RMS amplifier channels comfortably — avoid pairing with high-power amplifiers (100W+ RMS) causing thermal overload

Mounting Procedures

Rear Deck Installation (Most Common Application):

1. Remove Factory Grille/Speaker: Pry factory grille (if present) using trim removal tool, disconnect factory speaker wiring, remove factory speaker mounting screws
2. Verify Mounting Depth: Measure cavity depth behind mounting surface — minimum 2.5" required for H7683 clearance plus wiring
3. Test Fit H7683: Before connecting wiring, position H7683 in mounting hole to verify screw hole alignment and depth clearance (check for window mechanism interference)
4. Connect Wiring: Observe polarity (red = positive, black = negative on both factory harness and H7683 terminals), connect wiring via push terminals or splicing
5. Secure Speaker: Install mounting screws through H7683 frame into factory mounting holes (avoid overtightening causing frame distortion)
6. Install Grille: Snap included black mesh grille onto H7683 speaker frame (or reinstall factory grille if preferred)

Door Panel Installation:

1. Remove Door Panel: Following vehicle-specific procedures, remove door panel screws/clips, disconnect power window/lock connections
2. Access Factory Speaker: Factory speaker typically mounted inside door cavity — disconnect wiring, remove mounting screws
3. Verify Clearance: Critical step — manually operate window through full travel range with door panel removed to verify H7683 depth doesn't contact window glass or regulator mechanism
4. Install H7683: Connect wiring, secure with mounting screws, verify window clearance once more before reinstalling door panel
5. Reinstall Door Panel: Reconnect power window/lock connections, secure door panel clips/screws, verify all functions operational

Typical Application Scenarios: Where the H7683 Excels

The H7683 occupies the value-oriented factory replacement segment where enthusiasts seek recognizable audio improvement over OEM speakers at Walmart/Amazon pricing accessibility. Understanding ideal applications helps determine whether the H7683 matches your upgrade objectives and budget constraints.

First Audio Upgrade (Entry-Level Enthusiast)

Most enthusiasts begin their audio journey by replacing factory speakers before investing in amplifiers or subwoofers. The H7683 provides meaningful improvement over factory paper cone speakers at minimal cost.

Typical First Upgrade Configuration:

• Target Location: Rear deck or rear door replacement (leaves factory front speakers operational for comparison)
• Power Source: Factory head unit (15-22W per channel typical) — no amplifier required
• Budget: $59.99 for H7683 pair + $10-20 installation supplies (wire, terminals, trim tools)
• Expected Improvement: Increased volume capability (87dB sensitivity vs. 82-84dB factory), improved clarity (3-way vs. 2-way factory), extended bass (50Hz vs. 80-100Hz factory roll-off)

Used Vehicle Purchase Upgrade

Used vehicles often have failed or deteriorated factory speakers (foam rot, cone tears, voice coil damage). The H7683 provides reliable replacement at pricing competitive with OEM dealer parts.

Replacement Scenario:

• Failure Symptoms: Distortion at moderate volume, no high-frequency output (tweeter failure), rattling/buzzing (cone separation), complete silence (voice coil failure)
• Cost Comparison: H7683 at $59.99/pair vs. OEM dealer speakers at $80-150/pair for identical fitment
• Performance Advantage: H7683's 3-way design and 60W power handling likely exceed original factory specifications

Family Vehicle Entertainment Enhancement

Parents upgrading minivan/SUV audio systems for family road trips prioritize dialog clarity (movie soundtracks, audiobooks) and adequate volume to overcome road noise with rear-seat passengers.

Family-Oriented Configuration:

• Target Application: Rear entertainment system supplement or full rear speaker replacement
• Priority: Vocal intelligibility (1-4kHz presence region emphasized by Cerwin-Vega voicing) and sufficient SPL for rear passengers to hear over road noise
• Budget Justification: $59.99 pricing accessible for family budgets vs. premium component speakers ($200-400/pair) providing diminishing returns in high-noise environments

Budget-Conscious Rear-Fill Component

Enthusiasts building complete audio systems sometimes use coaxial speakers for rear-fill duties (supporting front component speakers) rather than expensive rear component systems consuming amplifier channels and budget.

System Integration Approach:

• Front Speakers: Premium component system (separate woofer/tweeter, $200-400/pair) amplified with dedicated 4-channel amplifier
• Rear Speakers: H7683 coaxials powered by factory head unit or rear amplifier channels (50-60W) for ambient fill
• Role: Rear-fill provides rear-seat passengers adequate volume and frequency coverage without competing sonically with premium front stage
• Budget Allocation: Investing $59.99 in rear coaxials preserves budget for front components and amplification rather than $300+ rear component systems

Cerwin-Vega Brand Legacy: From Professional PA to Consumer Audio

Understanding the H7683 requires context regarding Cerwin-Vega's 70+ year legacy as a high-SPL professional audio manufacturer — a heritage shaping the HED Series engineering philosophy and market positioning even in value-tier factory replacement segments.

Professional PA Origins (1954-1980s)

Cerwin-Vega founder Gene Czerwinski established the company in 1954 focusing on professional loudspeaker systems for touring sound reinforcement, cinema installations, and concert venues. The brand built reputation on three core attributes: extreme SPL capability (loudness without distortion), midrange presence (vocal intelligibility in live performance environments), and robust construction (withstanding touring/installation abuse). These attributes became synonymous with the Cerwin-Vega brand identity, persisting through subsequent market expansions into consumer home audio and automotive applications.

Home Audio Expansion (1970s-2000s)

During the 1970s-1990s home theater boom, Cerwin-Vega translated professional PA engineering into consumer home audio speakers targeting enthusiasts prioritizing maximum SPL for movie soundtracks and rock/electronic music reproduction. Models like the D-9 tower speakers became legendary for 120+ dB output capability and floor-shaking bass extension — establishing Cerwin-Vega's consumer brand identity as "party speakers" emphasizing volume and bass impact over audiophile neutrality. This consumer perception — loud, bass-heavy, party-oriented — carries through to modern automotive applications including the H7683.

Automotive Market Entry (1990s-Present)

Cerwin-Vega's automotive speaker lineup emphasizes the brand's SPL heritage adapted to factory replacement and aftermarket upgrade segments. The HED (High Efficiency Design) Series targets value-conscious consumers seeking recognizable audio improvement over factory speakers at accessible pricing — differentiating from premium Cerwin-Vega automotive lines (Vega Series, Stroker Series) commanding $200-500/pair pricing for component systems. The H7683 represents Cerwin-Vega's strategic positioning at Walmart/Amazon mass-market pricing while maintaining brand attributes (elevated SPL, midrange presence, bass extension) distinguishing it from no-name budget brands.

Audio Intensity Relocation Sale: Brand New Quality at Value Pricing

The H7683's $59.99 pricing reflects Audio Intensity's relocation sale structure — brand new inventory offered at value pricing as part of strategic warehouse consolidation. This is not refurbished equipment, B-stock with defects, or open-box returns — these are fully functional Cerwin-Vega speakers sold as pairs (2 speakers) with complete accessories and warranty eligibility.

Why Purchase H7683 from Audio Intensity

• Verified Authentic Cerwin-Vega: Direct manufacturer relationships ensure authentic speakers — eliminates counterfeit risk from third-party marketplaces
• Installation Support: Expert staff provides guidance on vehicle fitment verification, wiring procedures, mounting techniques
• Complete System Sourcing: Audio Intensity stocks complementary components (amplifiers, subwoofers, wiring kits) enabling single-source purchasing
• Warranty Facilitation: Direct Cerwin-Vega relationships streamline warranty claims if issues arise during coverage period
• Value-Focused Philosophy: Relocation sale pricing reflects genuine inventory management, not inflated "regular prices" creating artificial discount percentages

Final Recommendation & Rating Summary

The Cerwin Vega H7683 HED Series 6"×8" 3-Way Coaxial Speakers represent exceptional value for budget-conscious enthusiasts seeking recognizable audio improvement over factory speakers at mass-market pricing. The H7683 doesn't attempt to compete with premium component speakers ($200-400/pair) offering superior soundstage, imaging precision, or extended frequency response — instead, it delivers Cerwin-Vega's legendary SPL capability, midrange presence, and bass extension at $59.99/pair accessibility suitable for first-time upgraders, used vehicle replacements, and family entertainment enhancements.

Overall Expert Rating: 3.8 / 5.0

Who Should Purchase the H7683:

• First Audio Upgrade: Entry-level enthusiasts replacing factory speakers as initial audio modification before investing in amplifiers/subwoofers
• Used Vehicle Replacement: Buyers replacing failed/deteriorated factory speakers at competitive OEM pricing with performance advantage
• Family Vehicle Enhancement: Parents upgrading minivan/SUV audio for road trip entertainment prioritizing dialog clarity and adequate rear-seat volume
• Budget-Conscious Rear-Fill: Enthusiasts building complete systems using coaxials for rear-fill duties preserving budget for premium front components
• Cerwin-Vega Brand Loyalty: Existing Cerwin-Vega fans seeking brand attributes (SPL, midrange presence) at factory replacement price points
• Dual Fitment Requirement: Installations requiring 6"×8" OR 5"×7" compatibility with single SKU convenience

Consider Alternatives If:

• Component Speaker Quality Required: If soundstage, imaging, and audiophile neutrality priority — invest in dedicated component systems ($200-400/pair) with separate tweeters
• High-Power System Integration: If pairing with 100W+ RMS amplifiers — consider higher power handling coaxials (100-150W RMS) preventing thermal damage
• Extreme SPL Competition: If pursuing competition SPL levels — dedicated competition coaxials (92-95dB sensitivity, 200W+ handling) necessary
• Audiophile Neutral Response: If preferring flat frequency response without elevated midrange — consider brands emphasizing neutrality (Alpine, Focal, Morel)
• Premium Material Construction: If desiring exotic cone materials (carbon fiber, Kevlar), silk dome tweeters, rubber surrounds — budget premium coaxials ($150-250/pair)

Recommendation: BUY — The Cerwin Vega H7683 delivers solid value for factory replacement applications where budget constraints, installation simplicity, and recognizable brand heritage intersect. The $59.99/pair pricing positions the H7683 competitively against no-name budget brands while delivering Cerwin-Vega's 70+ year SPL engineering legacy. For enthusiasts seeking maximum audio quality regardless of cost, component speaker systems provide superior performance — but for mainstream consumers prioritizing meaningful improvement over factory speakers at Walmart/Amazon accessibility, the H7683 represents the pragmatic choice balancing performance, value, and installation simplicity.
