Key Takeaways
- Series wiring adds resistances (R1 + R2). Parallel wiring divides them (for equal coils, R ÷ number of coils).
- A single SVC sub gives you one impedance choice. A single DVC sub gives you two, set by series or parallel wiring of the coils.
- Two DVC 4-ohm subs in series/parallel land at 4 ohm. Two DVC 2-ohm subs in parallel/parallel land at 0.5 ohm, which most amps will not tolerate.
- Match the wired impedance to your amplifier's "minimum stable at" rating. Never lower. Manufacturers print this on the spec page for a reason.
- Impedance wrong = the amp fails, not the sub. Low Z mismatch cooks output devices; high Z mismatch leaves output on the table.

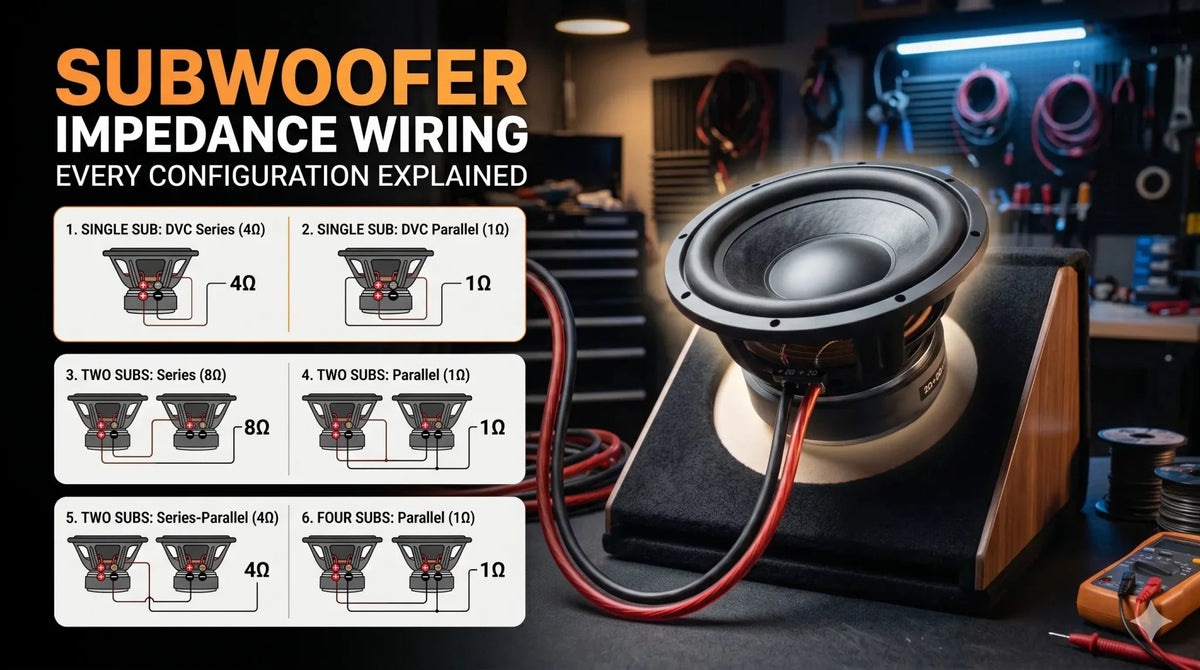

Subwoofer impedance wiring is where most car audio installs go wrong before the box is even loaded. The driver does not care what you wire to. The amplifier cares a lot. This article walks every wiring configuration we run in customer vehicles: single voice coil, dual voice coil, one sub through four, with the resulting impedance and the math behind it. If you only need the final number for your specific combo, jump to the configuration tables below.
For the wider build chain (driver selection, enclosure, install, tuning), the parent piece is the complete car subwoofer guide. For a deeper walk through dual voice coil wiring with extra diagrams, see car subwoofer wiring: dual ohm configs. When the wiring is sorted and you need the physical install steps, the sibling is install a subwoofer in your car, step by step.
What Subwoofer Impedance Actually Means
Impedance is the total opposition a speaker presents to alternating current from the amplifier, measured in ohms. It is not a single number across all frequencies; it rises and falls with frequency because a voice coil is an inductor inside a magnetic field. The number you see printed on a subwoofer ("4 ohm" or "2 ohm") is the nominal impedance, an industry shorthand for what the driver looks like to the amp across its usable bandwidth.
If you measure across a "4 ohm" voice coil with a multimeter, you will usually read around 3.0 to 3.6 ohm. That is the DC resistance (Re), which is what the meter sees with no signal. The nominal impedance is higher because it accounts for the inductive component the coil produces once an AC audio signal is passing through it. Both numbers matter. DC resistance tells you the coil is intact and the wiring is continuous. Nominal impedance tells you what load the amp will work into in normal operation.
For wiring math, treat the nominal value as the working number. A 4-ohm coil wires as 4 ohm. A 2-ohm coil wires as 2 ohm. The amp's "stable at 1 ohm" rating is also referencing nominal, so the math lines up.
How Do I Read SVC vs DVC Subwoofer Specs?
SVC stands for single voice coil. The driver has one voice coil with two terminals (positive and negative). One impedance, one wiring option per sub. If the sub is labeled SVC 4-ohm, the amp sees 4 ohm.
DVC stands for dual voice coil. The driver has two independent voice coils sharing a single former, with four terminals total (positive and negative for each coil). The two coils can be wired in series or parallel with each other before the resulting load presents to the amp. That is the entire reason DVC drivers exist: flexibility in matching impedance to amp.
DVC drivers are always labeled by single-coil impedance. A "DVC 2-ohm" sub has two 2-ohm coils. A "DVC 4-ohm" sub has two 4-ohm coils. The label is not the load the amp will see. The label is the building block. For the DVC math worked all the way through with extra wiring diagrams, see car subwoofer wiring: dual ohm configs.
How Does Series Wiring Change Subwoofer Impedance?
Series wiring adds resistances together. The formula is R total = R1 + R2 + R3, and so on for as many loads as you have in the chain. Current passes through each coil in turn, so the same current flows through all of them and the voltage drops add up.
Two 2-ohm coils in series equal 4 ohm. Two 4-ohm coils in series equal 8 ohm. Three 4-ohm coils in series equal 12 ohm. Series wiring raises the load the amp sees, which means the amp delivers less current and therefore less power at the same voltage. You wire series when you need to raise impedance to stay above the amp's minimum stable rating, or when you want to run multiple subs at a higher Z so a 4-ohm-only amp can still drive them.
To wire in series, the positive of coil 1 goes to the amp's positive. The negative of coil 1 connects to the positive of coil 2. The negative of coil 2 returns to the amp's negative. The signal makes one continuous loop through both coils. Crutchfield's subwoofer wiring diagrams illustrate the same topology with terminal-by-terminal callouts if you want the visual cross-reference.
How Does Parallel Wiring Change Subwoofer Impedance?
Parallel wiring divides the impedance. The formula is 1 ÷ R total = (1 ÷ R1) + (1 ÷ R2). For equal-impedance coils, the shortcut is R ÷ number of coils. Current splits across the parallel paths so the amp sees the combined load drop.
Two 2-ohm coils in parallel equal 1 ohm. Two 4-ohm coils in parallel equal 2 ohm. Three 4-ohm coils in parallel equal 1.33 ohm. Four 4-ohm coils in parallel equal 1 ohm. Parallel wiring lowers the load the amp sees, which means the amp delivers more current and produces more power, up to its design limit.
To wire in parallel, both positives tie together and connect to the amp's positive. Both negatives tie together and connect to the amp's negative. The signal splits between the two coils and each coil sees the full voltage. That extra current draw is why parallel wiring runs amps hotter than series wiring of the same number of coils. Voice coil heating also raises the effective impedance the amp sees over a long sustained set (thermal compression), which is one reason an amp can measure stable cold but run protect after twenty minutes of high-output material (Car Audio Help).
How do you wire a single subwoofer at every impedance?
A single SVC sub gives you exactly one impedance: the value printed on the driver. A single DVC sub gives you two, set by whether you wire the coils series or parallel. That is the complete option set for a one-sub install.
| Sub Type | Coil Wiring | Amp Sees | Typical Use |
|---|---|---|---|
| SVC 2-ohm | N/A | 2 ohm | 1-ohm-stable amp run at higher Z, or 2-ohm-only amp |
| SVC 4-ohm | N/A | 4 ohm | Most SQ-oriented mono amps, factory-amp upgrades |
| DVC 2-ohm | Parallel | 1 ohm | Max output on a 1-ohm-stable mono amp |
| DVC 2-ohm | Series | 4 ohm | 4-ohm-only amp, or staying out of class-D heat range |
| DVC 4-ohm | Parallel | 2 ohm | Most common SQ daily-driver wiring |
| DVC 4-ohm | Series | 8 ohm | High-power amps that derate below 4 ohm |
How do you wire two subwoofers at every impedance?
Two subs on one amp open up more wiring options. With two SVC drivers you choose series or parallel between the two subs. With two DVC drivers you choose both: how each sub's coils are wired internally (series or parallel), then how the two subs connect to each other (series or parallel). That is why DVC labels read like "series/parallel" or "parallel/parallel". The first word is the coil-to-coil wiring inside each sub; the second is the sub-to-sub wiring.
| Sub Pair | Wiring | Amp Sees | Notes |
|---|---|---|---|
| Two SVC 2-ohm | Parallel | 1 ohm | Standard SPL pair on 1-ohm amp |
| Two SVC 2-ohm | Series | 4 ohm | 4-ohm-only amp friendly |
| Two SVC 4-ohm | Parallel | 2 ohm | Common SQ daily-driver pair |
| Two SVC 4-ohm | Series | 8 ohm | Output limited, used to stay above min Z |
| Two DVC 2-ohm | Parallel / Parallel | 0.5 ohm | SPL-class amps only. Most mono amps will not tolerate. |
| Two DVC 2-ohm | Series / Parallel | 2 ohm | Coils in series per sub, subs in parallel to amp |
| Two DVC 2-ohm | Series / Series | 8 ohm | Rarely used, power output drops sharply |
| Two DVC 4-ohm | Parallel / Parallel | 1 ohm | Max output on a 1-ohm-stable mono amp |
| Two DVC 4-ohm | Series / Parallel | 4 ohm | Clean 4-ohm load for almost any mono amp |
| Two DVC 4-ohm | Series / Series | 16 ohm | Almost never used, included for completeness |
How do you wire three or four subwoofers?
Three- and four-sub setups are where impedance math gets unforgiving fast. Below are the configurations we actually wire in customer vehicles. The rest are math curiosities that either drop below 0.5 ohm (no amp will run it cleanly) or climb above 16 ohm (you give up almost all your amp's output).
| Sub Set | Wiring | Amp Sees |
|---|---|---|
| Three SVC 4-ohm | All parallel | 1.33 ohm |
| Three SVC 4-ohm | All series | 12 ohm |
| Four SVC 4-ohm | All parallel | 1 ohm |
| Four SVC 4-ohm | Pairs in series, pairs in parallel | 4 ohm |
| Four SVC 2-ohm | Pairs in series, pairs in parallel | 2 ohm |
| Four DVC 4-ohm | Coils parallel per sub (2 ohm), subs pairs series/parallel | 2 ohm |
| Four DVC 2-ohm | Coils series per sub (4 ohm), all four subs in parallel | 1 ohm |
Once you cross three subs, run the math twice before you cut wire. The pattern is always the same: compute the per-sub load first, then combine those loads. Anything dropping below 1 ohm needs an amp the manufacturer explicitly rates for that load on its spec page. Anything climbing above 8 ohm should make you ask whether the amp will actually deliver useful power into it.
How Do I Match Impedance to My Amplifier?
The rule: target the lowest stable impedance the amp explicitly publishes. That is where the amp produces its maximum continuous power. Going lower than the published minimum forces the amp's output devices to source more current than they are rated for; most modern protection circuits will shut down before damage, but the engineering margin is gone.
Read the amp's spec sheet. Look for "stable at" or "minimum impedance" on the manufacturer's page (BestCarAudio.com). Most current monoblock car amps are stable to 1 ohm. SQ-oriented mono amps from Arc Audio (Arc Audio amps we stock) often run their cleanest power into 2 ohm and derate above that. Prodigy monoblocks (Prodigy amps we stock) are typically 1-ohm stable for daily-driver SPL builds. Wavtech runs more toward signal processing and clean-output amplification (Wavtech we stock), so check the individual unit's spec page for its rated minimum.
Once you have the amp's minimum stable impedance, choose the wiring config from the tables above that lands on (or just above) that number. For an SQ daily build with one DVC 4-ohm sub and a 1-ohm-stable mono amp, the answer is parallel coil wiring (2 ohm load). The amp runs cool, well inside its design envelope, and still hands you most of its rated output.
What Happens If You Wire Impedance Wrong?
Three failure modes, depending on which direction you got it wrong. First, impedance too low (1 ohm wired into a 2-ohm-only amp): the amp tries to deliver more current than its output devices are rated for. Best case, the protection circuit shuts the amp down repeatedly. Worst case, the output stage cooks and the amp is done. The sub itself is fine; voice coils do not care about the amp's current limit.
Second, impedance too high (8 ohm wired into a 1-ohm-stable amp): the amp produces a fraction of its rated power. You did not hurt anything, you just left output on the table. Customers usually report this as "the system sounds weak even though I bought a big amp."
Third, impedance fine but the amp underpowered and gain cranked: you clip the signal, the voice coil converts the clipped output to heat, and the sub eventually fails (BestCarAudio.com). This is the most common subwoofer failure path we see across customer trucks. Match continuous RMS to RMS at the wired impedance, set gain by the unclipped output of the amp, and the driver will outlast the vehicle.
Frequently Asked Questions
Does wiring subwoofers in parallel make them louder?
Can I mix single voice coil and dual voice coil subs on one amp?
What is the lowest impedance a typical mono amp can handle?
Does impedance affect subwoofer longevity?
Why is my amp running hot even though the impedance is correct?
Wiring Decision in One Sentence
Look up your amp's minimum stable impedance, look up your sub's voice coil configuration, then pick the wiring from the tables above that lands on the amp's minimum or just above it. That is the entire decision. The math is fixed; what changes is whether your amp will run it.
If you want us to confirm the wiring for your specific amp and sub combination before you cut anything, contact us with the amp model, the sub model, and the number of subs. We will pull both spec sheets and send back a diagram for your install. For the build chain around the wiring (driver size, enclosure, install, tuning), the pillar is the complete car subwoofer guide. To put the wired sub physically in the vehicle, the sibling is install a subwoofer in your car, step by step.
