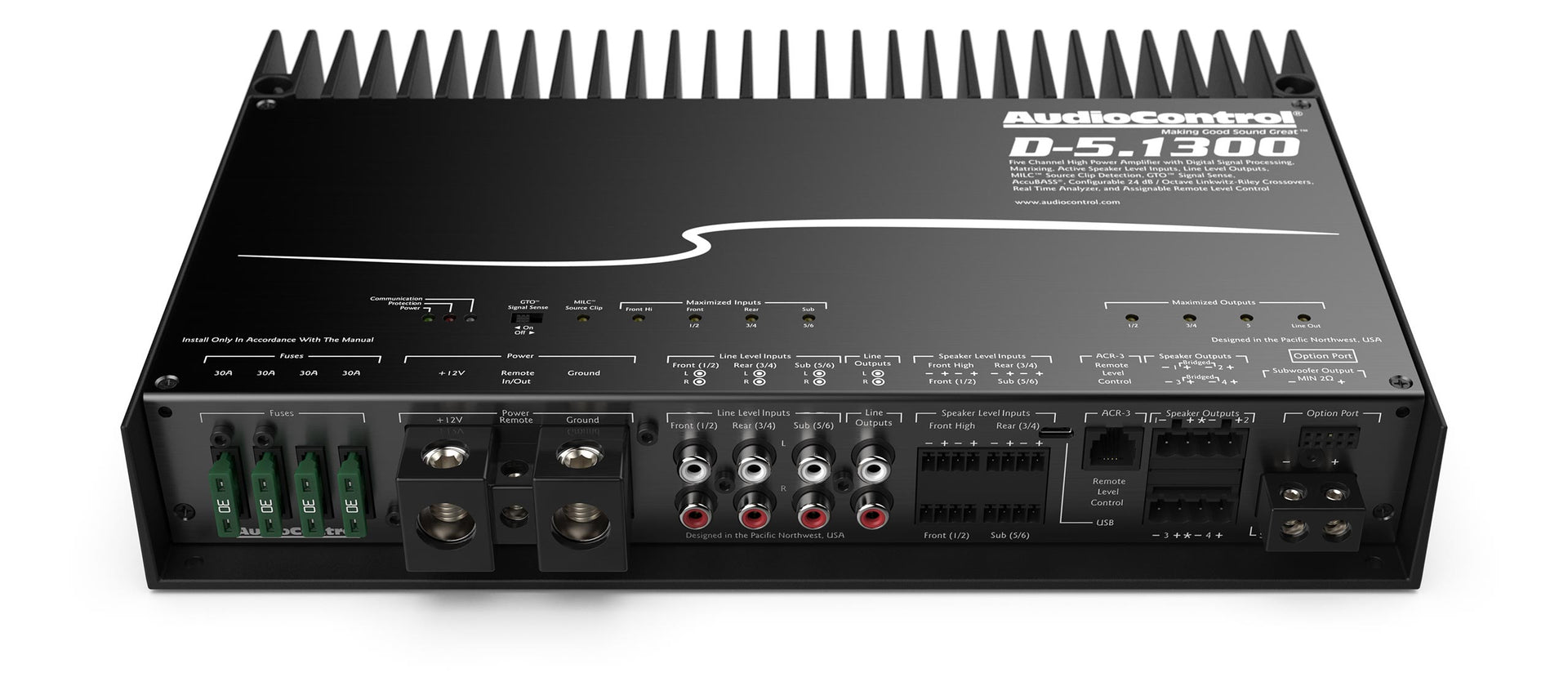

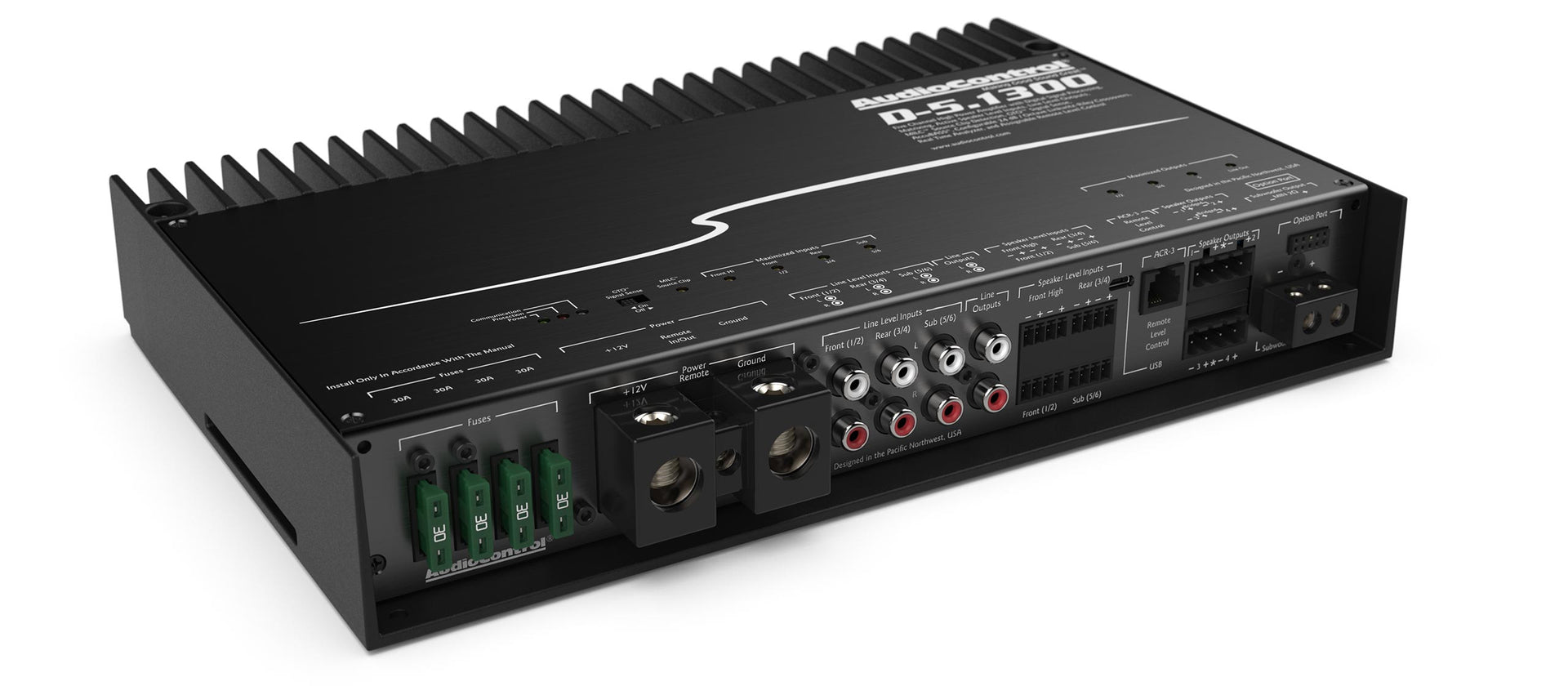

AudioControl D-5.1300 5-Channel DSP Matrix Amplifier
The AudioControl D-5.1300 is a high-power 5-channel amplifier designed to deliver exceptional audio performance in-car audio systems. With built-in digital signal processing (DSP), it offers precise control over sound customization. This amplifier is engineered to integrate seamlessly with factory and aftermarket audio systems, providing versatility and superior sound quality.
High-Power Output and Versatility
The D-5.1300 delivers robust power across channels, ensuring dynamic and precise audio reproduction. It provides 100 watts RMS per channel for four channels at 4 ohms and 300 watts RMS for the subwoofer channel at 4 ohms. At 2 ohms, it offers 200 watts RMS per channel for four channels and 500 watts RMS for the subwoofer channel. This flexibility allows it to drive a wide range of speaker configurations effectively.
Advanced Digital Signal Processing (DSP)
The D-5.1300 has a comprehensive DSP suite that allows for detailed audio tuning. Features include a 30-band equalizer with auto EQ, signal delay, phase correction, and AccuBASS® processing to enhance low-frequency performance. The DM Smart DSP app provides an intuitive interface for making precise adjustments, ensuring optimal sound quality tailored to user preferences.
Seamless Integration and Connectivity
The amplifier features multiple input options, including six preamp and eight active speaker-level inputs, facilitating integration with various audio systems. Summable active speaker-level inputs enable seamless OEM integration, while preamp outputs allow system expansion. The GTO™ Signal Sense feature ensures automatic turn-on when an audio signal is detected, simplifying operation.
Durable Construction and User-Friendly Design

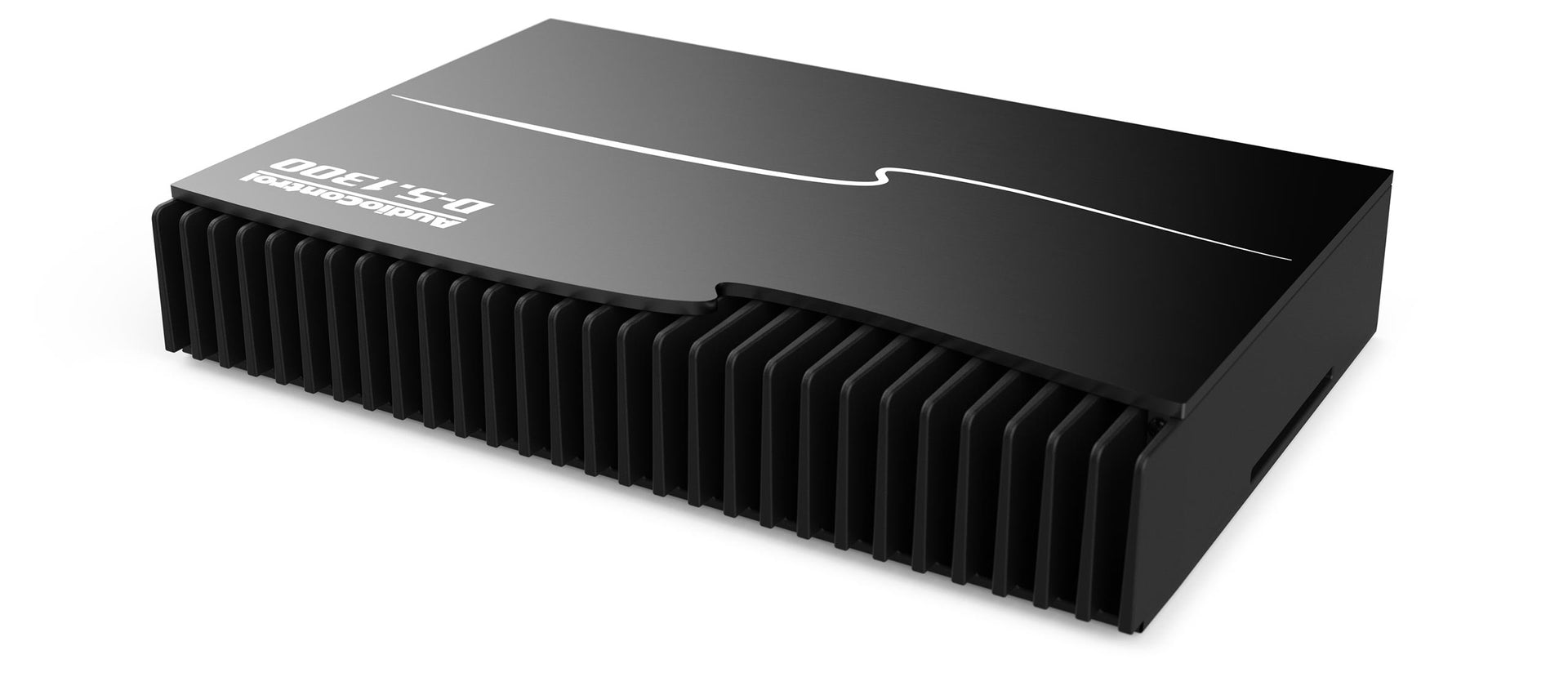

Built with a solid one-piece aluminum chassis, the D-5.1300 is designed for durability and efficient heat dissipation. Its compact dimensions (12.0" W x 8.0" D x 2.1" H) and weight (7.2 lbs) make it suitable for various installation scenarios. The amplifier includes features like MILC™ (Maximum Input Level Control) for optimal input level setting and optional accessories such as the ACR-3 remote for preset recall and level control, enhancing user convenience.
Top 10 Features
- Built-in DSP: Provides comprehensive digital signal processing for precise audio tuning.
- High Power Output: Delivers up to 200W x 4 channels and 500W x 1 channel at 2 ohms.
- AccuBASS® Processing: Enhances low-frequency performance for richer bass.
- MILC™ (Maximum Input Level Control): Ensures optimal input level settings to prevent distortion.
- GTO™ Signal Sense: Automatic amplifier turn-on upon detecting an audio signal.
- Independent Linkwitz-Riley Crossovers: Offers selectable 12 and 24 dB/octave crossovers for precise frequency control.
- Summable Active Speaker-Level Inputs: Facilitates seamless integration with OEM audio systems.
- 30-Band Equalizer with Auto EQ: Allows detailed sound customization to user preferences.
- Input and Output Real-Time Analyzers (RTAs): Provide precise and informed audio tuning.
- Optional Bluetooth® Connectivity: With the AC-BT24 accessory, enables wireless streaming and programming.
Product Highlights
Product Specifications
Physical Specifications | |
---|---|
Height |
|
Length |
|
Width |
|
General Specifications | |
Frequency Response Frequency Response in a car amplifier refers to the range of audio frequencies it can amplify, typically measured in Hz. For example, a response of 20Hz to 20kHz indicates the amp can handle deep bass to high treble, covering the full audible spectrum.
|
|
S/N Ratio S/N Ratio (Signal-to-Noise Ratio): A measure of an amplifier's ability to amplify audio signals relative to background noise. A higher S/N ratio indicates clearer sound, as more of the output is dedicated to the signal rather than noise.
|
|
THD+N @ Rated Power THD+N (Total Harmonic Distortion plus Noise): A measurement of the total distortion and noise introduced by an amplifier. Lower values indicate cleaner audio reproduction, as less distortion and noise affect the output signal.
|
|
Input Voltage Range Input Voltage Range: The range of voltage levels an amplifier can accept from the audio source. It determines compatibility with various head units or signal processors, ensuring optimal signal strength without distortion or clipping.
|
|
Fuse Rating Fuse Rating: The maximum current an amplifier can handle before its fuse blows, protecting the unit from damage. It indicates the amp’s power capacity and helps ensure safe operation within the electrical system.
|
|
Rated Continuous (RMS) Power @ 14.4 V | |
@ 4 Ω |
|
@ 2 Ω |
|
@ 1 Ω |
|
