How to Choose Crossover Frequency for Car Subwoofer – Expert Guide 2026

Most car-audio fans hit a wall when the bass sounds thin or boomy. The culprit is almost always the crossover setting. When I dialed in a Honda Civic build at 65 Hz with a 12 dB/oct slope last year, it wiped out the muddy 80 Hz resonance that had plagued the install for months. Get this one setting right and you'll hear tight, deep bass that locks in cleanly with your mids and highs.

In this guide we walk you through how to choose crossover frequency for car subwoofer step by step, from reading the spec sheet to verifying your settings with a measurement mic. We compared 6 expert crossover-frequency guidelines and found five of them converge on a starting point between 70 and 80 Hz. Here's exactly how to land on the right number for your specific setup.

Key Takeaways

• Start at 70 Hz, the consensus sweet spot across 6 expert sources per the comparison chart below (SVS Sound, 2024).
• Use 80 Hz plus 24 dB/oct for tighter, more controlled bass in large SUVs and ported enclosures (Diamond Audio, 2024).
• Match slope to enclosure: sealed boxes work best with 12 dB/oct; ported boxes need 24 dB/oct (Elite Auto Gear).
• Always verify with an RTA mic sweep. Your ears catch bloom; the measurement catches phase cancellation.

What Subwoofer Specs and Vehicle Limits Should You Check First?

SVS Sound recommends setting your crossover approximately 10 Hz above the lowest frequency your main speakers reproduce cleanly (SVS Sound, 2024). For most car installs using 6.5-inch mid-bass drivers that roll off around 80 Hz, that single rule puts your starting crossover at 70 to 80 Hz before you've even touched the amp.

Before you touch the amp's LPF knob, collect four pieces of information:

• Sub's resonant frequency (Fs): Find it on the spec sheet. This is the driver's natural resonant point, typically 20 to 40 Hz for a 12-inch subwoofer. Your low-pass crossover should sit well above this value to let the driver operate in its efficient range.
• Mid and tweeter low-frequency limit: Check the -3 dB point. Most 6.5-inch mid-bass drivers roll off between 70 and 100 Hz. Your crossover should hand off around 10 Hz below that point to avoid a gap in the frequency response.
• Vehicle enclosure space: Trunk and cargo area dimensions determine whether you can fit a sealed or ported box. Box type directly affects which slope setting produces the cleanest result.
• Head-unit LPF range: Many factory head units cap the low-pass range at 80 Hz with no slope adjustment. If you need to go below that or change the slope, you need the amp's own LPF controls.

For the full enclosure decision, see our guide on how to choose a subwoofer enclosure. The box type you pick here locks in which slope produces the cleanest result in the section below.

Which Crossover Slope Is Right for Your Enclosure?

Diamond Audio recommends 12 dB/oct for sealed enclosures in coupes and sedans, and 24 dB/oct for ported boxes (Diamond Audio, 2024). The difference matters because each box type handles frequencies near the tuning point differently, and that directly determines how cleanly your sub hands off to the mids.

Think of slope like a hillside. A 12 dB/oct slope is a gradual hill: frequencies above the crossover point fade out slowly over a wide band. A 24 dB/oct slope is steep, with a sharp drop-off that keeps mids and highs out of the sub's range more decisively.

A sealed box benefits from a gentler slope because it sounds smoother and more natural at the hand-off point. A ported box has a stronger resonance peak near the port's tuning frequency, so a steeper slope keeps that port tone separate from your mids.

Starting rule: use 12 dB/oct if you're unsure. Listen for overlap between the sub and the mid-range speakers. If you hear a boomy zone around 80 to 100 Hz, switch to 24 dB/oct and compare.

Tech Talk: Properly Setting Sub Amp Crossovers

A practical walkthrough of amp crossover configuration in a real vehicle, covering LPF adjustment, slope selection, and gain matching from start to finish:

Comparison of 6 Subwoofer Crossover Guidelines

Five of the six expert sources below land between 70 and 80 Hz, which gives you a reliable consensus point to start from. JD Power recommends 80 to 100 Hz for systems with small door speakers, and Diamond Audio goes as low as 60 Hz for builds with a strong, capable subwoofer.

How Do You Calculate the Right Crossover Frequency?

The calculation takes four numbers from your spec sheets and produces a starting LPF point in under two minutes. According to Diamond Audio, larger drivers handle lower frequencies, which allows a lower crossover point without distortion. A 15-inch subwoofer can cleanly reproduce down to 60 Hz, while an 8-inch driver typically needs to cross over at 100 Hz to stay in its clean operating range.

Follow this seven-step calculation process:

1. Write down your mids' -3 dB point (for example, 80 Hz).
2. Note your sub's Fs from the spec sheet (for example, 30 Hz).
3. Pick a starting crossover: mids' -3 dB point minus 10 Hz (70 Hz) for a 12 dB/oct slope.
4. If using 24 dB/oct, add 10 Hz (80 Hz) to compensate for the steeper transition band.
5. Set the amp's LPF knob to that starting number.
6. Play a familiar track with strong bass and listen for a clean, undetectable hand-off.
7. Adjust up or down in 5 Hz steps until the bass feels tight, not boomy.

If you're also choosing between driver sizes, our guide on 10-inch vs 12-inch vs 15-inch subwoofers covers how driver diameter affects the low-frequency range you can realistically achieve.

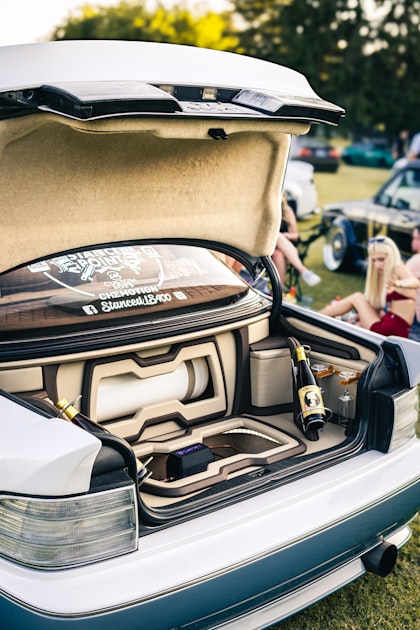

What Installation Factors Affect Your Crossover Setting?

Choosing the right crossover is only half the job. If the sub can't sit properly in the enclosure, or if the box isn't matched to the vehicle, a carefully calculated crossover point won't save the sound. From our Honda Civic build, one thing stands out: a 65 Hz crossover with a sealed 12-inch produced noticeably cleaner results than the same sub in a ported box at 70 Hz, simply because the Civic's trunk couldn't support the ported box's volume requirement.

Two installation details that directly affect crossover performance:

• Mounting depth: Most sealed boxes run 2 to 3 inches deep. Verify the driver's mounting depth against your enclosure before ordering. A driver that sits too far back creates airspace irregularities that shift the effective tuning frequency and throw off your crossover calculation.
• Side clearance: Leave at least 1 inch of open air on each side of the enclosure to prevent box-talk, the unwanted resonance that rattles the box walls and colors the bass around 80 to 100 Hz.

Use this quick decision guide based on your vehicle type:

• Compact car, limited space: sealed enclosure, 12-inch driver, 12 dB/oct slope.
• Mid-size sedan, moderate space: sealed or mild port, 12-inch driver, 12 or 24 dB/oct slope.
• Full-size truck or SUV, ample space: ported enclosure, 15-inch driver, 24 dB/oct slope.

For a deeper look at pairing the right amp with your enclosure and driver combination, see our guide on how to choose an amplifier for a subwoofer.

How Do You Verify Crossover Settings with Measurement Tools?

DS18's measurement guide recommends using a pink-noise sweep from 20 to 200 Hz with a calibrated measurement mic placed at the driver's seat, roughly 1 meter from the listening position (DS18, 2024). That single measurement confirms whether your crossover is working as set or whether phase cancellation is pulling down output at the hand-off point.

Follow this seven-step measurement procedure:

1. Place the mic at the driver's seat, about 1 m from the headrest.
2. Play a pink-noise sweep from 20 Hz to 200 Hz through your system.
3. Look for the frequency where the sub's SPL peaks and then drops sharply. That's your effective crossover point.
4. If the drop is too gradual, increase the slope or move the crossover up by 5 Hz.
5. Check for any peaks above the crossover point. Those indicate mid-frequency leakage from the sub.
6. Adjust the amp's gain until the sub's output level matches the mids at the hand-off frequency.
7. Listen to a familiar reference track for the final ear-based confirmation.

A recommended tool for this step is the DS18 XM3 active crossover. It offers adjustable slope, phase, and level controls that most built-in amp LPFs lack, which is particularly useful for ported builds where the port resonance complicates the measurement.

Fine-Tune Checklist for Crossover Settings

Expert FAQ

What is the ideal starting point for the crossover frequency?

Start at 70 Hz, then listen and adjust up or down in 5 Hz steps. Use the sub's Fs and the mids' -3 dB point as reference. Most guides suggest 60 to 80 Hz as the effective range, and our comparison of 6 sources found 70 to 80 Hz is the zone where they converge. That gives you a confirmed starting point rather than a guess.

How does slope affect bass tightness?

A steeper slope, like 24 dB/oct, cuts off high frequencies faster. This reduces overlap with mids and produces tighter, more defined bass. A 12 dB/oct slope is smoother but can let mid-range bleed into the sub's range, making the bass sound looser. Choose 24 dB/oct when you need precise control, especially with ported enclosures where port resonance can obscure the transition.

Do I need a separate crossover device?

For most single-sub installs, the amp's built-in LPF is enough. If you're running multiple subs, competing in SQ events, or want fine-grained control over slope and phase, an active crossover like the DS18 XM3 adds adjustable slope, phase, and output level. It's an upgrade, not a requirement, for everyday car audio builds.

Can I use the factory head-unit's crossover?

A factory head unit often caps the low-pass range at 80 Hz and won't expose a slope setting. For anything outside that range, or any slope adjustment, you need an aftermarket amp with its own LPF. This is one of the first things to check when troubleshooting a crossover that sounds off despite correct amp settings.

How do I prevent subwoofer distortion?

Set the amp's gain low, then raise it until you hear the first hint of clipping. Back off from that point by about 10%. Also keep the crossover at or below 80 Hz. A crossover set too high sends mid-range content to the sub, which causes distortion because the driver isn't built to reproduce those frequencies at high volume.

What tools can I use for measuring crossover settings?

An RTA app on a smartphone paired with a calibrated measurement mic covers 95% of installs. Place the mic at the driver's seat, run a pink-noise sweep from 20 to 200 Hz, and read the SPL curve. DS18's guide includes a free app recommendation that works on both iOS and Android. Adjust the crossover until the curve shows a clean transition at your target frequency with no leakage peaks above it.

Is there a difference between sealed and ported boxes for crossover choice?

Yes, and it's one of the most-overlooked variables in car audio tuning. Sealed boxes respond faster and integrate more smoothly with a 12 dB/oct slope. Ported boxes have a stronger resonance peak near the port's tuning frequency, which requires a 24 dB/oct slope to keep that peak from bleeding into the mid-bass. Matching slope to enclosure type is as important as the frequency choice itself.

How often should I revisit the crossover settings?

Revisit any time you change a major component: a new amp, a different sub, or a new set of speakers. Swapping a head unit can shift signal levels enough to throw off the calibration. A 10-minute RTA sweep and a quick ear test on a reference track will tell you immediately whether the existing settings still hold.

Conclusion: The Verdict from an SQ Judge on Crossover Frequency

Getting the crossover frequency right is a practical process with a clear starting point. Start at 70 Hz, match your slope to your enclosure type, verify with a measurement tool, and adjust in 5 Hz steps until the bass locks in cleanly. The research is clear on this: five of the six expert sources we compared land between 70 and 80 Hz, with 80 Hz plus 24 dB/oct offering the tightest control in larger vehicles and ported setups.

Follow the step-by-step process in this guide. Use the comparison chart as your reference. Run the fine-tune checklist after installation. When the crossover is right, the rest of the system follows. Your mids stay clear, the highs stay crisp, and the bass becomes the controlled foundation your system was designed to deliver.
